• Model NO.：SJ
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Max. Film Width：600-1200mm
• Barrel′s Material：38 Crmoala
• Film Thickness(mm)：HD:0.008-0.08
• Max Extrusion Output HD：80kg,Hr
• Transport Package：as Requirement
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：20 Sets,Month

Main Technical Parameters for MD-H Film blowing machineModel SJ45/50SJ55SJ60SJ65Suitable Material HDPEMax Film Width(mm) 60080010001200Film Thickness(mm) HD:0.008-0.08Max Extrusion Output HD 30/40kg/hr50kg/hr60kg/hr80kg/hrExtrusion unit  Gear Box 133/146173173200Screw Diameter(mm) φ45/50φ55φ60φ65Screw L/D Ratio 28:128:128:128:1Screw's Material 38 CRMOALABarrel's Material 38 CRMOALABarrel's Cooling Fan 250W×2370W×2370×2370×3Thermo Control (zone) 3334Driving Motor (kw) 7.5/1118.52230Extrusion Die  Die Size (mm) HD:φ60/80HD:φ80/100HD:φ100/120HD:φ120/φ150Screen Changer Standard manualThermo Control (zone) 2222Air Ring  (mm) φ620φ620φ620φ760Cooling Blower (kw) 1.52.22.23Center Steady Stick 1 PCSTake-UP Unit   Roller Width (mm) φ138×650φ138×850φ138×1100φ138×1300Embossing Roller Width 550mm750mm1000mm1200mmTake-UP Motor (kw) 0.751.11.11.5Take-UP Speed(M/min) 10-6010-6010-6010-60Height adjustable type 700mmWinding Unit   Type OF Winder Surface Friction Single WinderRoller Width (mm) 70090011001300Winding Motor (N.M) 6101016Winding Speed(M/min) 10-6010-6010-6010-60Voltage 380V, 50HZ, 3PHASECover Dimensions (m) 4.5×2.0×4.34.5×2.2×4.55×2.5×4.85.5×2.8×5.2

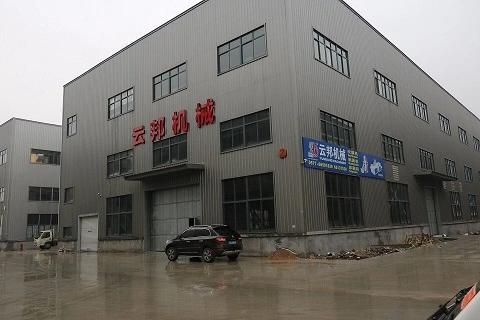

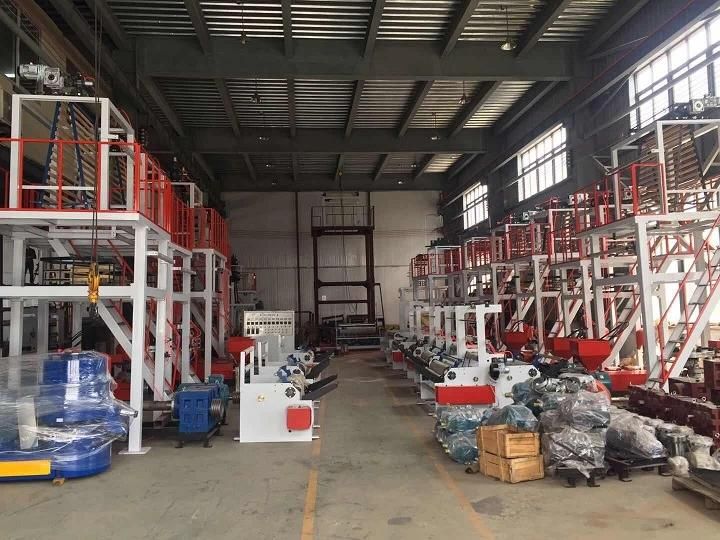

Company and workshop show:
film blowing machine





Have any require, you could contact with us:

Tel: +86-577-66501830
Fax: +86-577-66501823
/Mobile: +86-13868466185
