Hard and Soft Two Material Coextrude PVC Profile Making Machine
Qingdao Zhenxiong Mechanical Equipment Co., Ltd.- Type：Profile Extruder
- Plastic Processed：ABS
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：Multiple Feed
- Assembly Structure：Separate Type Extruder
- Screw：Twin-Screw
Base Info
- Model NO.：qdzx
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Output：50,H
- The Screw Diameter：50mm
- Precision：1mm

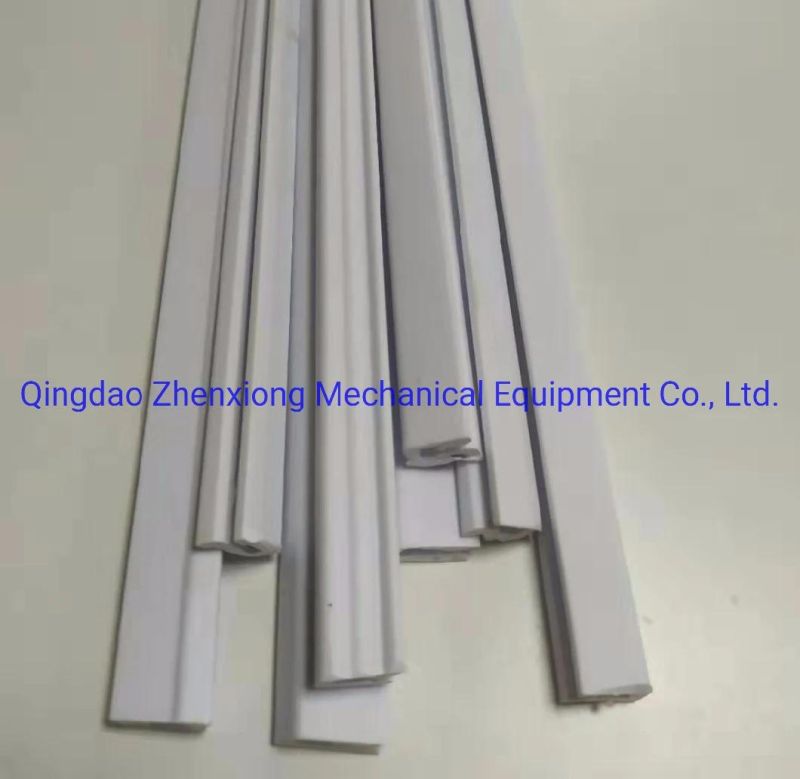

- Application：Plastic Refrigerator Glass Profile
- After-Sale Service：12 Months
- Transport Package：Standard
- Specification：8000kg
- Trademark：zhenxiong
- Origin：China
- HS Code：84778000
- Production Capacity：15 Sets Per Month
Description
Screw and barrelScrew diameter Φ50mm Zhoushan, Zhejiang
Material
38CrMoALA,
deeply nitrading processing Screw valid length 1400 mm Screw number 1 Barrel heating power 9KW Barrel wind-cooling power 180W ×3 Nitriding depth 0.40-0.70mm Nitriding rigi
dity (HV) 890-980 surface roughness (mm) Ra0.8-Ra1.6 Linearity ≤0.015 Output 40-60kg/h Heating type and material Electric Heating by Aluminum ring Raw material ABS granules Reduction driver Reduction gear Hard teeth Jiangyin, China Driver motor Power 15 KW Plastic machine special used
Main machineFeeding type Automatic dryer & loader Center height 1000mm
(match with mould) Contact type of Die and mould Contact by bolts in the type of flange Total power ≈20 KW
Electrical parts
The company has experienced, high-quality production and management personnel and modern factory buildings, equipped with advanced manufacturing and testing equipment at home and abroad. The use of computer-aided design and management ensures product quality and continuously develops a new generation of products to meet the needs of domestic and foreign customers.
The company's credo is "Quality is our eternal theme", the company will continue to provide users with high-quality plastic machines for various purposes, and strive to better serve customers.Any needs, please feel free to contact me and sincerely look forward to working with you.
Contact Information :
Amanda Fan
Factory Address:No.678,Hangzhou Road,Jiaozhou,Qingdao,China
Material
38CrMoALA,
deeply nitrading processing
dity (HV)
Main machine
(match with mould)
Electrical parts
| Items | Brand | Number |
| PLC | SIEMENS | 1 |
| Frequency converter | ABB | 1 |
| Contactor | SIEMENS | 9 |
| Current meter | CHINT | 7 |
| Volt meter | CHINT | 1 |
| Overload circuit breaker | SIEMENS | 1 |

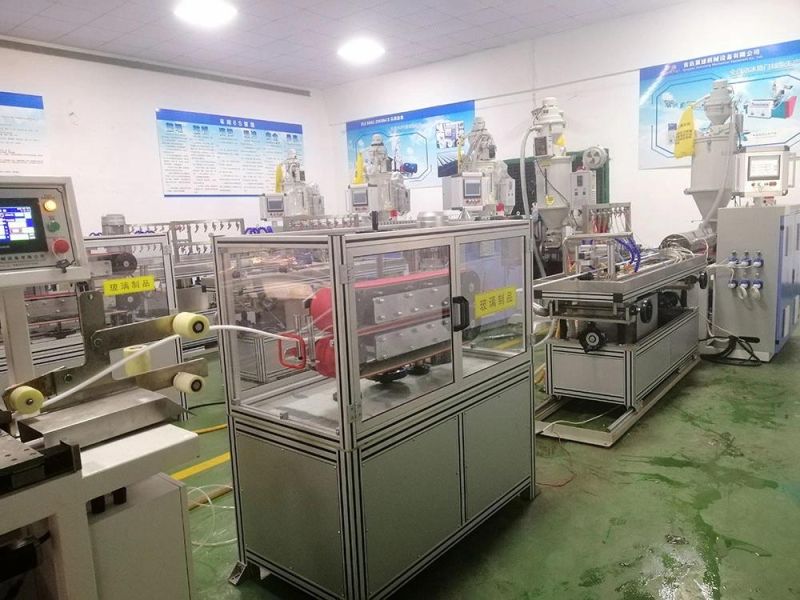

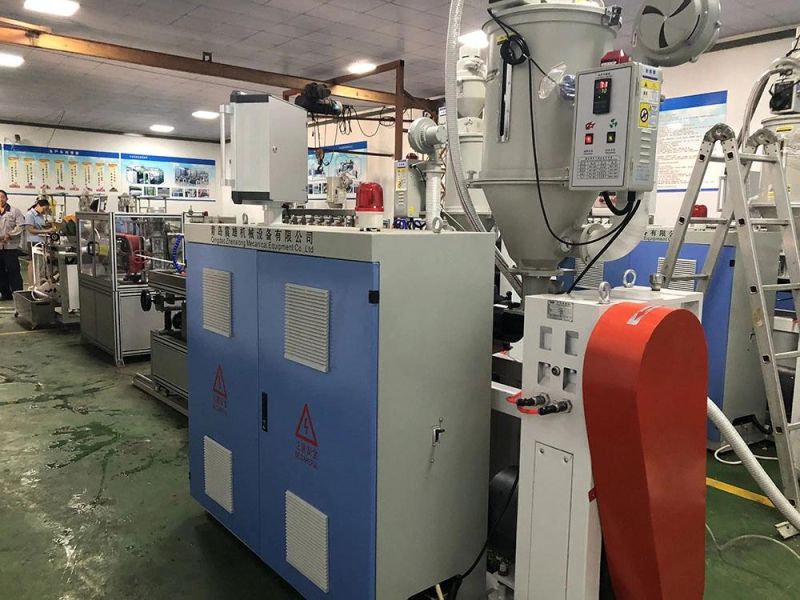

Production line show:
The company has experienced, high-quality production and management personnel and modern factory buildings, equipped with advanced manufacturing and testing equipment at home and abroad. The use of computer-aided design and management ensures product quality and continuously develops a new generation of products to meet the needs of domestic and foreign customers.The company's credo is "Quality is our eternal theme", the company will continue to provide users with high-quality plastic machines for various purposes, and strive to better serve customers.Any needs, please feel free to contact me and sincerely look forward to working with you.
Contact Information :
Amanda Fan
Factory Address:No.678,Hangzhou Road,Jiaozhou,Qingdao,China
