• Platen Size：620*660mm
• Stroke：500mm
• Maximum Opening Stroke：700mm
• Pump Pressure：210kg,Cm2
• Oil Tank Volume：470L
• Motor Power：10HP(7.5kw)
• Heating Power：16.2kw
• Total Wattage：23.7kw
• Machine Dimension：2.35*1.5*2.45m
• Machine Weight：5.3 Ton
• Transport Package：Standard Export Packaging
• Specification：2.35*1.5*2.45M
• Trademark：YIHAO
• Origin：Guangdong Province, China
• HS Code：8412299090
• Production Capacity：2000 Sets,Year

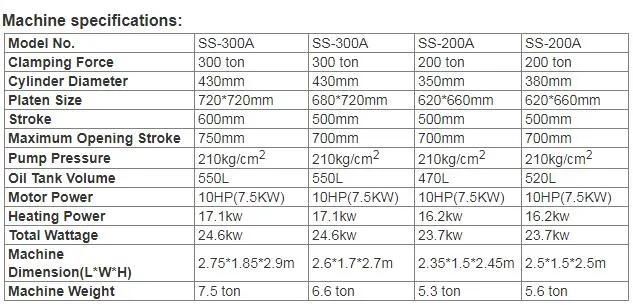

Basic Info.

Platen Size 620*660mm Stroke 500mm Maximum Opening Stroke 700mm Pump Pressure 210kg/Cm2 Oil Tank Volume 470L Motor Power 10HP(7.5kw) Heating Power 16.2kw Total Wattage 23.7kw Machine Dimension 2.35*1.5*2.45m Machine Weight 5.3 Ton Transport Package Standard Export Packaging Specification 2.35*1.5*2.45M Trademark YIHAO Origin Guangdong Province, China HS Code 8412299090 Production Capacity 2000 Sets/Year

Product Description

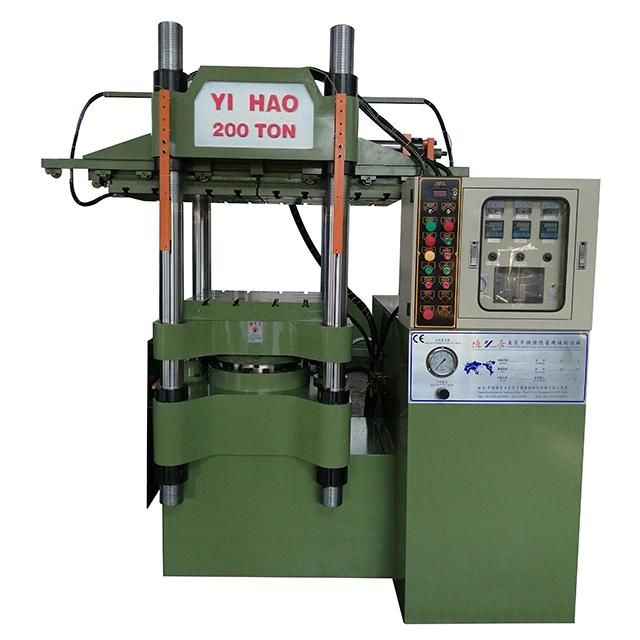

automatic 200 ton double color melamine dish machine





Product Features:

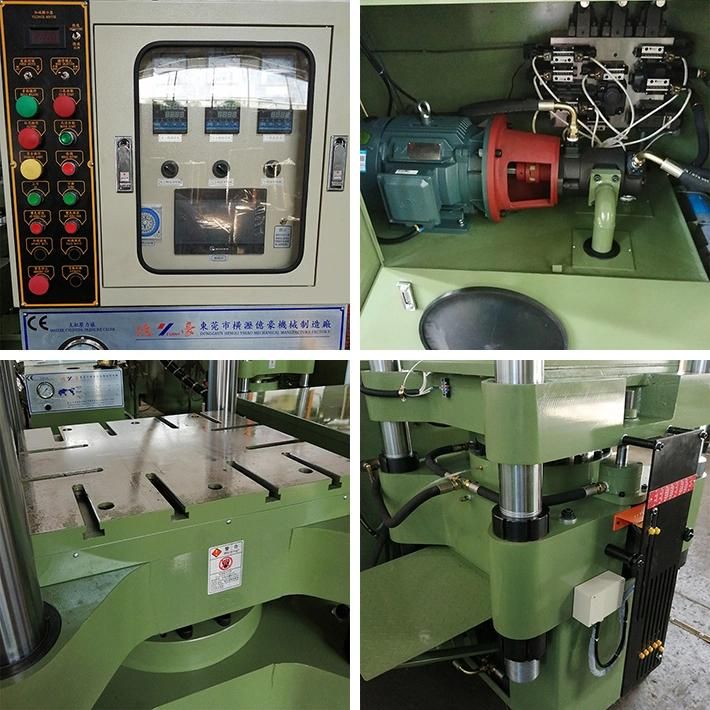

1. PLC control system, simple operation, low failure rate, easy maintenance
2. High and low pressure loop system, the machine moves smoothly without noise, adjusting speed freely.
3. Adding safety grating device to ensure safety operation.
4. It can be used to produce double color or single color melamine tableware, such as melamine plate, bowl, tray, dish, spoon, cup and so on.
5. the suitable raw material are melamine, bamboo fiber, fiber, urea, bakelite and other thermosetting materials.

Finished Products:

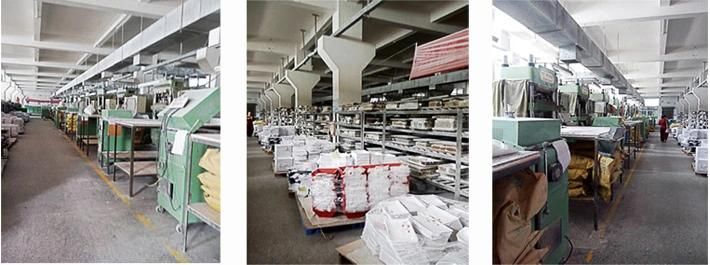

Production workshop:

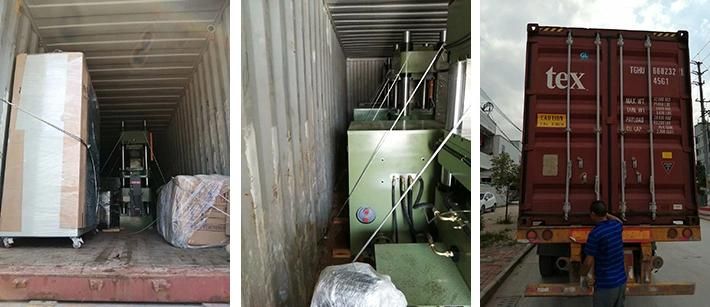

Packaging&Shipping



1. free machine installation service will be provided(the buyer need to pay for the round way air ticket, hotel and food)
2. free training to operate the machine
3. overseas after sales service provided

Q1. How to get machines I want?

1. Please advise all details of your need. We offer best solution.

2. You can get all machines with lowest purchasing cost and least sourcing time.

Q2. How to use the machine?

1. We suggest you coming to our factory for free and full training till you know it.

2. User manual is offered along with the machine, making it easy to operate.

Q3. What can I do when the machine can't work well?

To save your time and money when use our machines, we always have strict quality control from the beginning to the end. In case the machine can`t work well, pls get our services:

Our engineers are online for 24 hours, and offer a solution quickly.

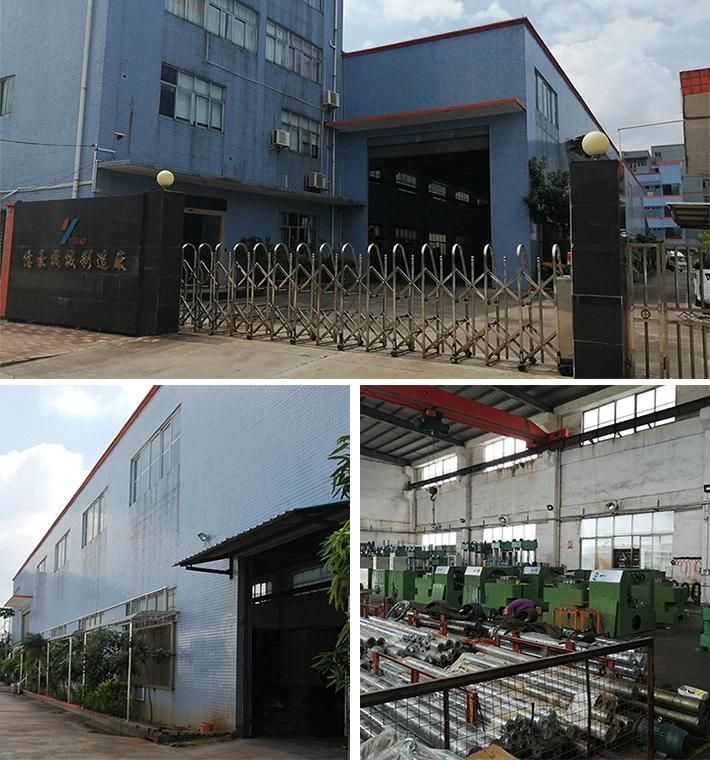

In June 2003, due to business expansion, we set up factory in Dongguan city, Hengli town. Dongguan Hengli Yihao Mechanical Manufacture Factory is engaged in professional R & D and manufacturing high precision hydraulic rubber forming machine, toilet seat cover forming machine, melamine tableware molding machine, double color melamine forming machine, cup mode melamine tableware molding machine, double-Layer toilet seat cover forming machine, mahjong forming machine, and the like.

After several years of development, the factory has professional production and technical personnel to ensure that products could meet the customer demand.

The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.

We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment.
