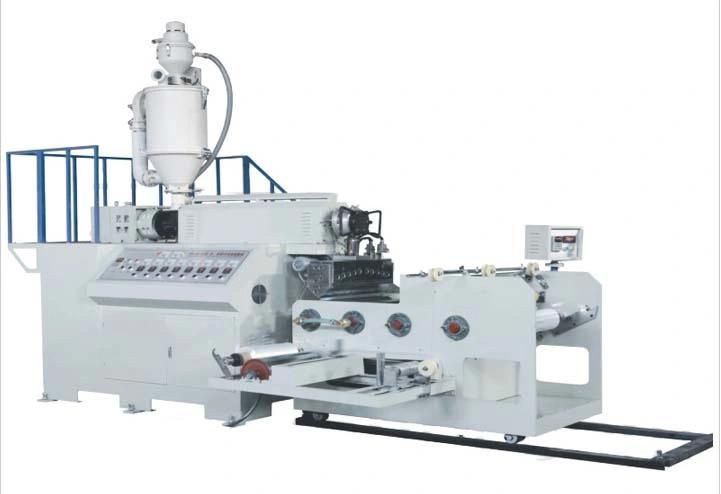

One-Layer LLDPE Stretching Film Making Machine
Ruian Chuangli Machinery Factory- After-sales Service：Yes
- Warranty：Yes
- Type：Film
- Plastic Processed：PE
- Product Type：Film Extruder
- Feeding Mode：One Feed
Base Info
- Model NO.：SJ-500
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Film Width：500mm
- Transport Package：in Wooden Box
- Specification：CE
- Trademark：Chuangli
- Origin：Ruian, China
- HS Code：847730100
- Production Capacity：20sets,Month
Description
Model
SJ-500 single-layer
SJ-1000 single-layer
SJ-1500 single-layer
Diameter of Screw Stem
55 mm
65 mm
90 mm
L/D Ratio of Screw
28:1
28:1
28:1
Material of Scerw & Barrel
38 CrMoALA
38 CrMoALA
38 CrMoALA
Rationl Speed of Screw Stem
10-120 rpm
10-120 rpm
10-120 rpm
Width of T-die
650 mm
1250 mm
1800 mm
Heating Way
Casting-aluminum heating device
Casting-aluminum heating device
Casting-aluminum heating device
Width of Traction Roller
650 mm
1250 mm
1800 mm
Folding Width of Products
500 mm
1000 mm
1500 mm
Thickness
0.015-0.05 mm
0.015-0.05 mm
0.015-0.05 mm
Main Motor
15kw
22 kw
45 kw
Heating Power
16 kw
30 kw
58 kw
Tractiong Motor
2.2 kw
3 kw
5.5 kw
Max. Output(kg/h)
40
90
150
Machine Weight
2T
3.6T
6.5T
Overall Dimensions (L*W*H)
7500 mm*2800 mm*3200 mm
7500 mm*3200 mm*4000 mm
10000 mm*5500 mm*5000 mm
