• Model NO.：DL45,65,80,90
• Screw：Single-Screw
• Engagement System：Non-Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Marketing Type：Ordinary Product
• Condition：New
• Color：Customized
• Feature：Fast Speed
• Machinery Test Report：Provided
• Transport Package：Wooden Package
• Specification：DL45 DL65 DL80 DL90
• Trademark：DL
• Origin：China
• Production Capacity：10sets,Month

Basic Info.

Model NO. DL45/65/80/90 Screw Single-Screw Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Non-Computerized Marketing Type Ordinary Product Condition New Color Customized Feature Fast Speed Machinery Test Report Provided Transport Package Wooden Package Specification DL45 DL65 DL80 DL90 Trademark DL Origin China Production Capacity 10sets/Month

Product Description

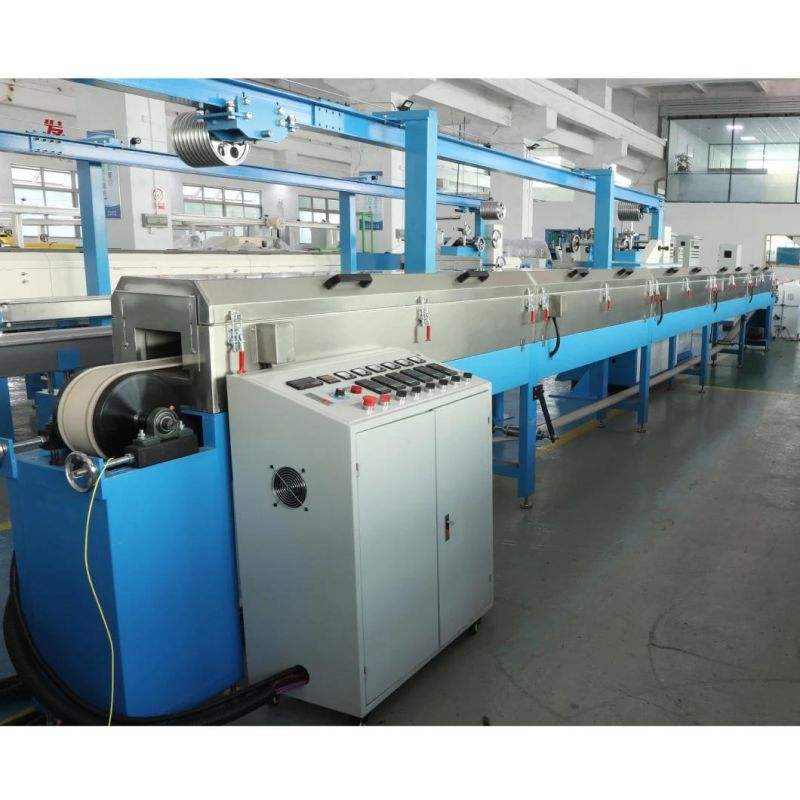

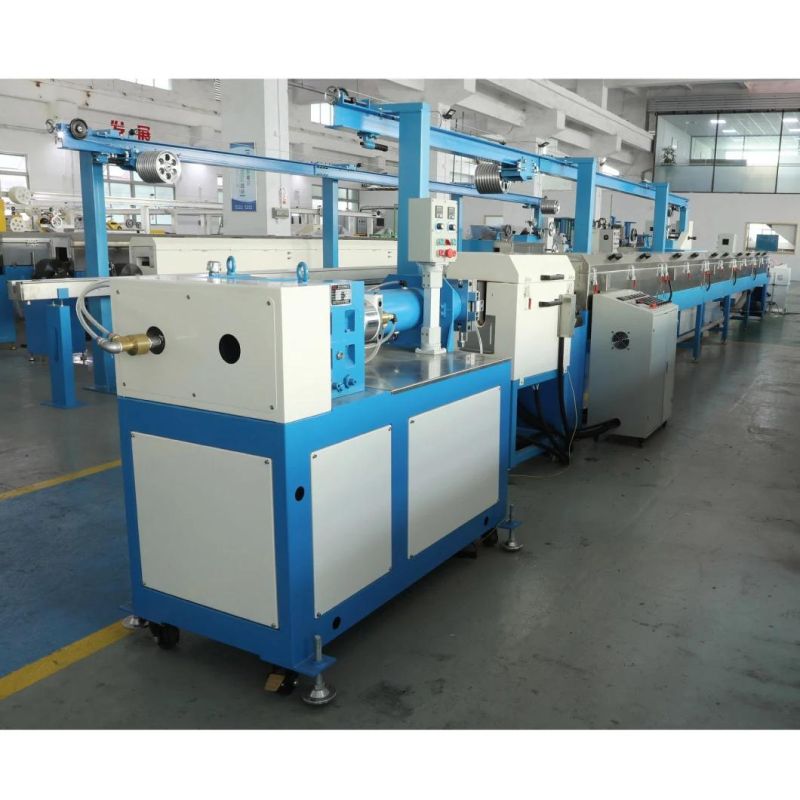

Silicone Seal Strip/Hose  Extrusion Line
Technical Specifications


	DL65	DL80	DL90	DL115
Finished diameter	1.2-8mm	2.0-16mm	3.0-25mm	8.0-50mm
Line speed(max)	150m/min	150m/min	70m/min	40m/min
Extrusion output(max)	70kg/h	150kg/h	200kg/h	300kg/h
Screw Ratio L/D	12:1	12:1	12:1	8-12:1
Extruder power	11kw	22kw	30kw	55kw
Payoff reel	PN400-630	PN500-1000	PN630-1250	PN800-1600
Curing length	16m	24m	24m	32m
Capstan power	2.2kw	5.5kw	7.5kw	11kw
Take-up reel	PN400-630	PN500-1000	PN630-1250	PN1000-2000





FAQ1
Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production.
      It takes more than 30 business days to customize complex mechanical equipment.
Q2: What is terms of payment? MOQ?
A2: T/T. 1 set.
Q3: How do you gurantee the machine stable operating?
A3: We do pre-shipment test for every single piece of machine.
      We have seperate QC, delivery, sales and after-sales departments.
      Also strict management process from pre-sales to after-sales.
Q4: How is your after-sales service?
A4: 1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient, professional and enough experience for various non-standard project) .
Q5: How can I install my machine when it arrives?
A5: For simple and semi-auto machine, we will send manual instruction and teaching video.
      For complex operation, we will send the engineers overseas to help client installing, operating and training.

Our Services
What to provide customers with after-sales service?
Pre-sales services:
1. Inquiry and consulting support.
2. Customized design program.
3. Pre-sale training: in order to guarantee all customers fully to operate the machine, if a customer needs, we can help our customer training, includes:
1) Correct operating mode.
2) Correct maintenance way.
3) Remove simple problem of our product.
After-sales service:
Since the shipment date, our company freely assuring period of after-sale maintenance service is:
1) 1year for mechanical part.
2) 6 month for electrical part.
3) Offer lifetime consultation on problems occurred.

Our products include:
1. Silicone strip equipment series.
2. 3D printer filament extruders.
3. LED strip equipment series.
4. Rubber processing machines.

Since our company was founded, over the past 13 yeas, our products have been extensively exported to Africa, Southeast Asia, Latin America, Europe and other markets.
