• Model NO.：Plastic Film Bag Pelletizing Machine
• Computerized：Non-Computerized
• Certification：CE, SGS
• Name：Bags Pelletizing Machine
• Color：Green
• Motor：Siemens
• Inverter：ABB
• Handle：Waste Plastic Film
• Core Part：Plastic Film Extruder
• Drying：Centrifuge Dewatering
• City：Zhangjiagang
• Hot Washing Mothod：Steam
• Clean Medicament：Cuastic Soda
• Machine Material：Stainless Steel 304
• Blade Material：SKD11
• Temperature Control：Omron
• Contactor：Schneide
• Frictiong Washer：High Speed Type
• Transport Package：Film Sea Packing
• Specification：WD-1000
• Trademark：WEDO
• Origin：China
• HS Code：8477800000
• Production Capacity：10 Sets Per Year

Basic Info.

Model NO. Plastic Film Bag Pelletizing Machine Computerized Non-Computerized Certification CE, SGS Name Bags Pelletizing Machine Color Green Motor Siemens Inverter ABB Handle Waste Plastic Film Core Part Plastic Film Extruder Drying Centrifuge Dewatering City Zhangjiagang Hot Washing Mothod Steam Clean Medicament Cuastic Soda Machine Material Stainless Steel 304 Blade Material SKD11 Temperature Control Omron Contactor Schneide Frictiong Washer High Speed Type Transport Package Film Sea Packing Specification WD-1000 Trademark WEDO Origin China HS Code 8477800000 Production Capacity 10 Sets Per Year

Product Description

Plastic Film Bag Pelletizing Recycling Machine
Description of Plastic Film Bag Pelletizing Recycling Machine:
PE PP plastic pelletizing machine with international advanced recycling technology and combined with the actual application condition. This plastic pelletizing recycling machine is design specializes for recycling the washed plastic PE film, such as PE plastic bags, plastic packing films, plastic shopping bags, agricultural film etc.
After PE PP plastic pelletizing machine processing, the final products are plastic pellets/granules, which can be to produce plastic bags, drainage pipes, plastic board/sheet etc.

The whole Plastic Film Bag Pelletizing Recycling Machine includes(customizable):
Belt conveyor → Compression barrel (agglomerator) → Efficient extruder → Non-stop hydraulic screen filter changer → Water ring cutting → Vibration machine → Dewatering machine → Blower → Storage hopper.   Electric control panel

Photos of the main parts in Plastic Film Bag Pelletizing Recycling Machine:

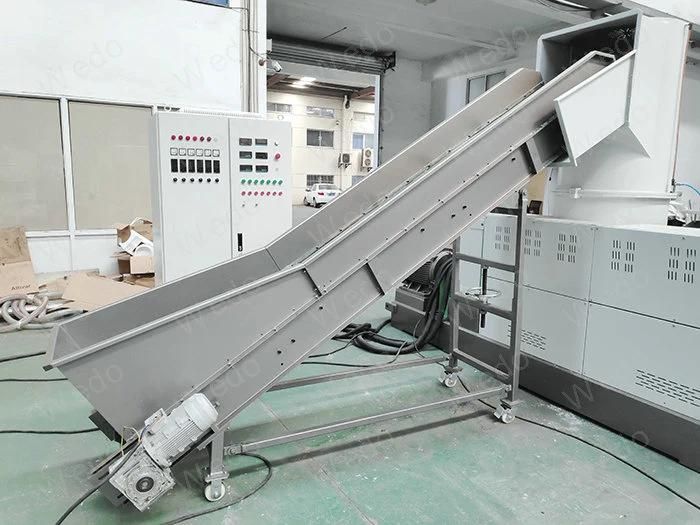

Belt conveyor of Plastic Film Bag Pelletizing Recycling Machine

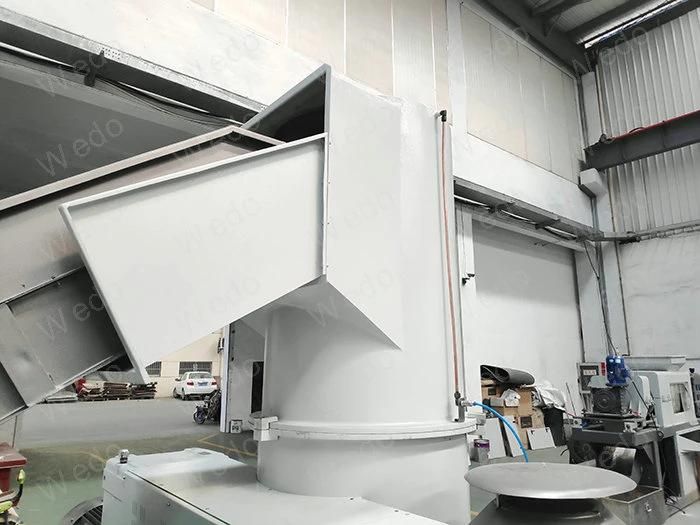

Compector/ agglomerator of Plastic Film Bag Pelletizing Recycling Machine

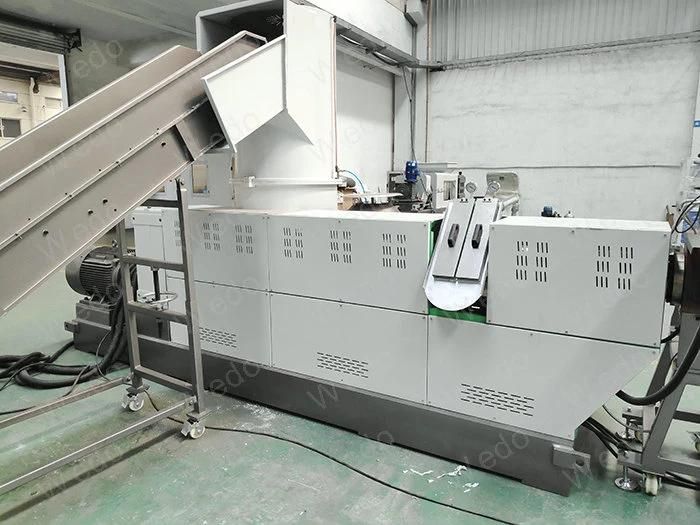

Extruder for the Plastic Film Bag Pelletizing Recycling Machine
Non stop screen changer unit of Plastic Film Bag Pelletizing Recycling Machine

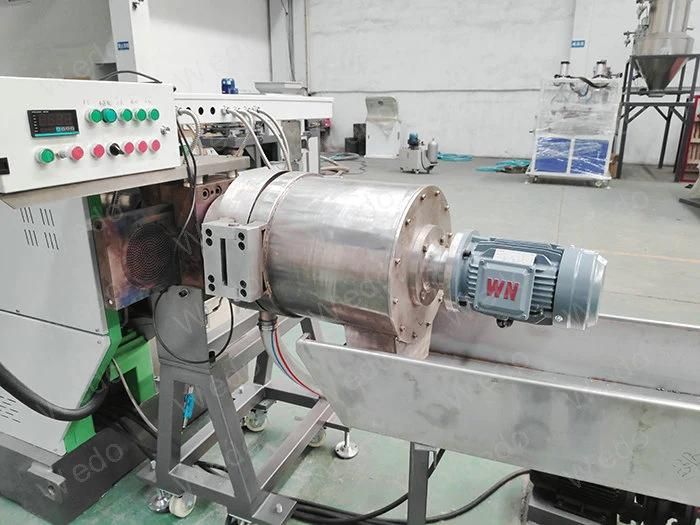

Watering cooling die face cutting unit of Plastic Film Bag Pelletizing Recycling Machine

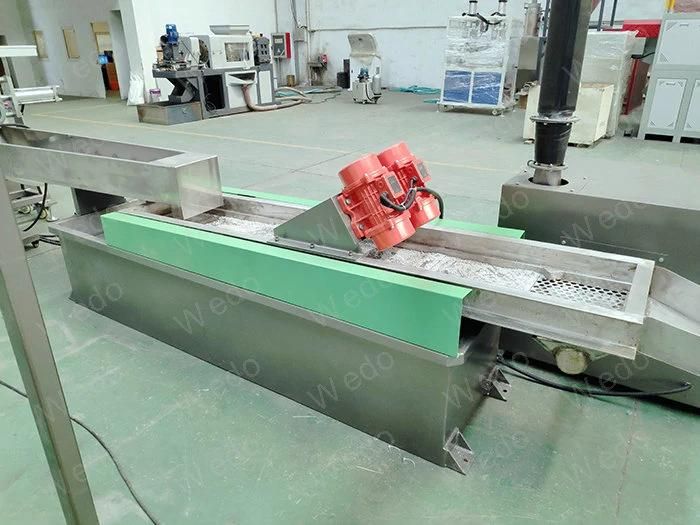

Vibriation machine of Plastic Film Bag Pelletizing Recycling Machine

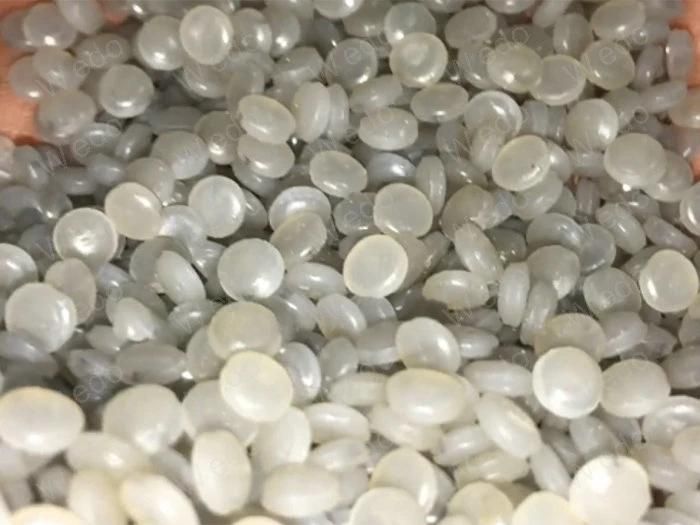

The pellets get from Plastic Film Bag Pelletizing Recycling Machine


Function of the main parts in Plastic Film Bag Pelletizing Recycling Machine:
1. Belt conveyor feeding: as standard design, plastic scraps such as film, bag, filament, raffia conveyed into the compacting barrel through belt conveyor; to process rolls' scraps, roll hauling off device is an optional feeding method. Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt and roll hauling off is fully automatic based on compactor's barrel' space. Metal detector can combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal into the screw.
2. Compression barrel: crushing and compacting the material, the rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high-speed rotatory blades will heat the scraps, and let them shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material, which enables a fast and stable feeding from the compactor directly into the extruder.
3. Extruder: to plasticization and degassing, a specialized single screw extruder applied to melt the pre-compacted material. The plastic scraps will well melted, plasticized in the first stage extruder, and the plastic will be extrude by the second stage extruder. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
4. Non-stop hydraulic screen filter changer: double stage filtering, fore filtering in the first extruder, and fine filtering in the second extruder, to reduce the frequency of filtering sieves changing. The requirements on the filter technology depend heavily on the quality of the input material as well as the planned use of granules.
5. Cutting pelletizing: die-face water ring pelletizing system as the standard granulating method in Wedo system. Self-adjusting pelletizing head for the best granulate quality, and consistently correct blades pressure can ensure long running. Rotate speed of cutting blades is automatic based on melt extruding pressure. Advanced dewatering vibration sieve combining with vertical-type centrifugal dewatering present high performance dried pellets.

Parameters of Plastic Film Bag Pelletizing Recycling Machine:

CAPACITY (kg/h)	POWER CONSUMPTION (kw)	WATER CONSUMPTION	LABOUR	HUMIDITY CONTENT
100-150	150	Keep water cool	1-2	<2%
200-300	200	Keep water cool	1-2	<2%
300-400	280	Keep water cool	1-2	<2%
450-500	350	Keep water cool	1-2	<2%
700-800	460	Keep water cool	1-2	<2%

Advantage of Plastic Film Bag Pelletizing Recycling Machine:
Very low labor request.
Stable running.
Automatic constant temperature control.
CE certification, ISO9001 certification, SGS certification
Configuration based on client requirement and material, and give reasonable suggest.

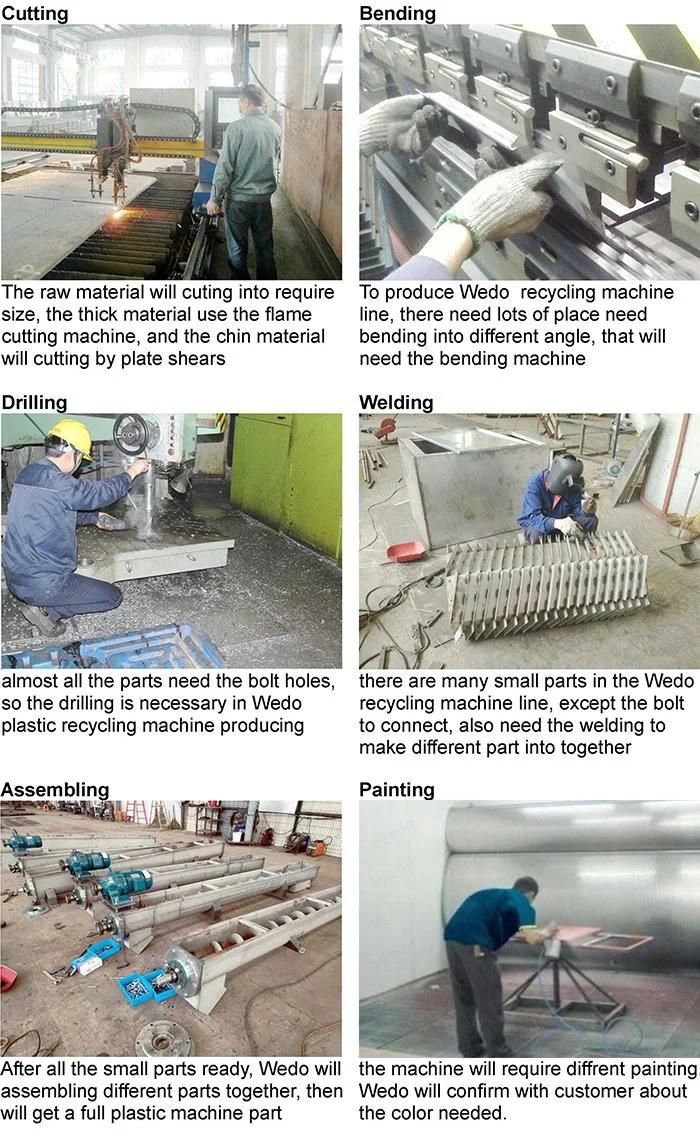

Wedo Produce steps:
Wedo have a fully step for the Recyled PE PP Plastic Film Pelletizing Machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.


Wedo service:
We do best service for you in Recyled PE PP Plastic Film Pelletizing Machine




Any further about the Plastic Film Bag Pelletizing Recycling Machine, please contact us timely we will give your professional fully support.
