• Machine Weight：2.2ton
• Certification：CE, ISO9001:2008
• Model：Chsj--PC45,55
• L/D Ratio of Screw：L,D 30:1
• Main Motor Power：30kw
• Maximum Capacity Kg/H：75-100kg,H
• About The Machine Weight：75012000kg
• Transport Package：Wooden Cases
• Specification：SGS
• Trademark：CHENGHENG
• Origin：China
• HS Code：8477309000
• Production Capacity：100PCS,Year

Model
 PC-45/900   PC-55/1300Width of the film
 400-800mm  500-1200mm
 Thickness of the film0.006-0.08mmThe max output75kg/h  100kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialPP/LDPEPower consumption40kw/h   60kw/h  Weight7500kg   12000kgExtruder unitDiameter of screw
 Φ45×3    Φ55×3
38CrMoALA  wearproof Alloy steel,five years guarantee
 L/D ratio of screw
 30:1Rotation speed of screw
 10-120r/mBarrel Fan
 Zone 3 barrels install over-temperature fanGear box146#   200#
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation system
 Main motor  15kw×3  22kw×3
100% Original three-phase variable frequency motor  Equipped with inverter control
 Die head unitDie diameter350mm   250mm
With 40Cr steel forging finishing, Uniform flow channel,blown plasticizing effect
 Cool unitAir ring type
 PPSingle outlet air ringAir ring material
 High quality Taiwan cast aluminum alloy air ringBellow power
 1.5kw  4kw   2.2kw
Shanghai production of high-pressure mute fan
 Traction unitWidth of take up roller
   900mm   1300mm  Traction roller material
 silicone roll
 Take up motor
 1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter control
 Take up speed
 100m/minEmbossing roller
 hot embossing unit
cold embossing unitLambdoidal board
 Stainless steel perforated plateGusset equipment
 Modular rack type
Independent Split Bubble stabilizing ring
 Electric aluminum roller guide
Manual wood floor Guide rollerAluminum guide roller (HV300-HV700) surface treatment
 Winding unitWinding type
 Double center winding machineDrive typeTorque motor equipped RV reducerFilm expanding rollerSmoothing rollElectric control cabinetlow-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control table
 Computer control type7-inch touch screen + process control system
Automatic air supply device
Who are we :
We are special produce full production of plastic bag, including film blowing machine, bag making machine,
printing machine ETC.

About us:
1) All Our Machines with CE certificate
2) Machines exported to Sauid , USA, UAE, Mexico, Africa,Vietnam,Thailand,Jodan and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If you need, engineer will help you train workers how to operate
5) Guarantee for two year , Long Life Services



Packing and shipping

Machines will Packed with stretch Film
If need ,  wooden case as option
Delivery date: 30 work days after receipt of down payment.
Shipment from tian jin  port ,China By Sea


Warm Noted:


Are you a factory or Trading Company
   We are a factory with experienced exporting products. We also help clients
   To look for products which they can not sure of.

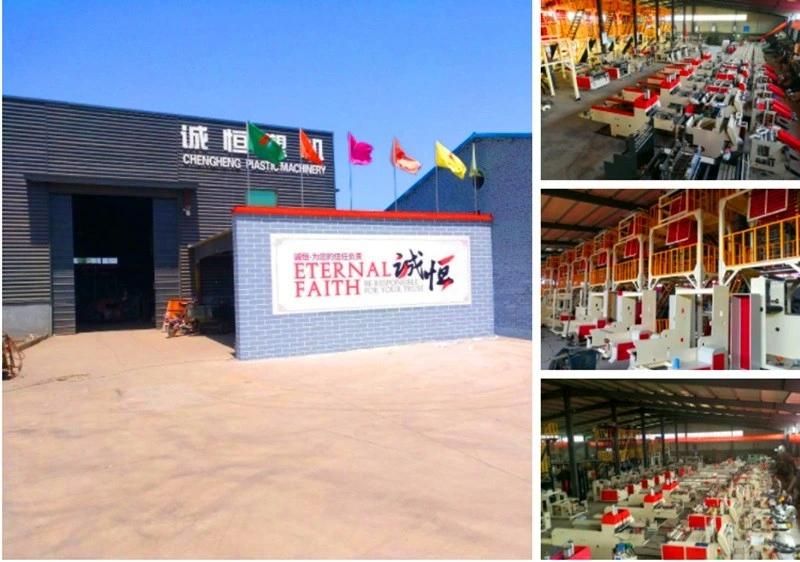

Where is your factory Located
  Our Factory Located in Ningjin  City ,Hebei Province ,China .
  It is about 2 hours by plane from Shanghai,  about 3 hours by air plane from
  guangzhou .
  We are pleasured to pick up you when you arrived .




How you work if I am not come to China
   Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .





IF Have more questions , Contact with me !!!
THE ENDING ...........THANKS FOR YOUR READING
