High Speed Double Layer Agricultural PE Film Extrusion Machine Price

RUIAN YUNBANG MACHINE CO., LTD.
  • Warranty：One Year
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：3000mm
  • Screw Diameter：120mm
  • Automation：Automatic

Base Info

  • Model NO.：SJ-
  • Computerized：Computerized
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Die Head：1000mm
  • Output：450-500kg,H
  • Compressor：Including
  • Screw Material：Bimetal
  • Transport Package：Film Package or Wooden Case
  • Specification：SGS
  • Trademark：YUNBANG
  • Origin：China
  • HS Code：84773090
  • Production Capacity：5 Sets,Month

Description

LLDPE  , LDPE  , EVA
 Screw Diameter(mm)
 φ 45/φ 55/φ 45
 φ 50/φ 60/φ 50
 φ 60/φ 70/φ 60
 φ 75/φ 90/φ 75
 Screw L/D Ratio
 30.1
 30.1
 30.1
 30.1
 Screw Max. Rotation Speed (r/min)
 100
 100
 100
 100
 Extruding Driving Power(kw)
 18.5/30/18.5
 22/37/22
 30/45/30
 55/90/55
 Die Structure
 IBC Film Tube Inner Cooling System
 Air-ring Structure
 Double Vents Air Ring
 Reversing Haul-off System
 Horizontal± 180°
 Take-off Wide-up Speed (m/min)
 45-120
 Total Power(kw)
 150
 280
 280
 350
 Overall Dimensions(mm)
 According to actual machine

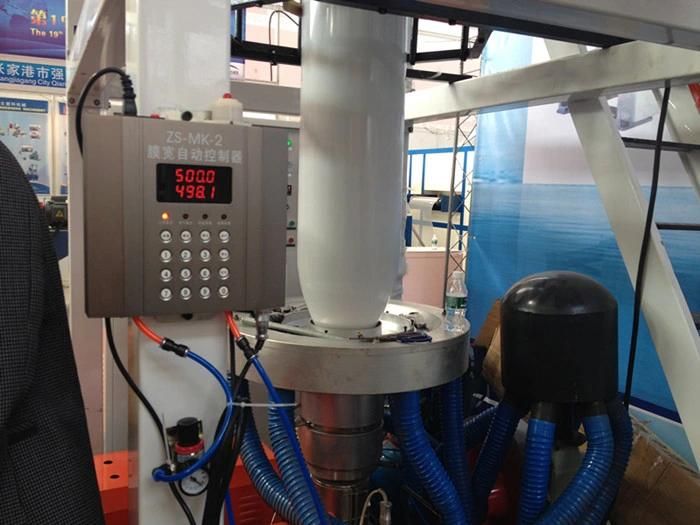

Die Head Part:

High Speed Double Layer Agricultural PE Film Extrusion Machine Price

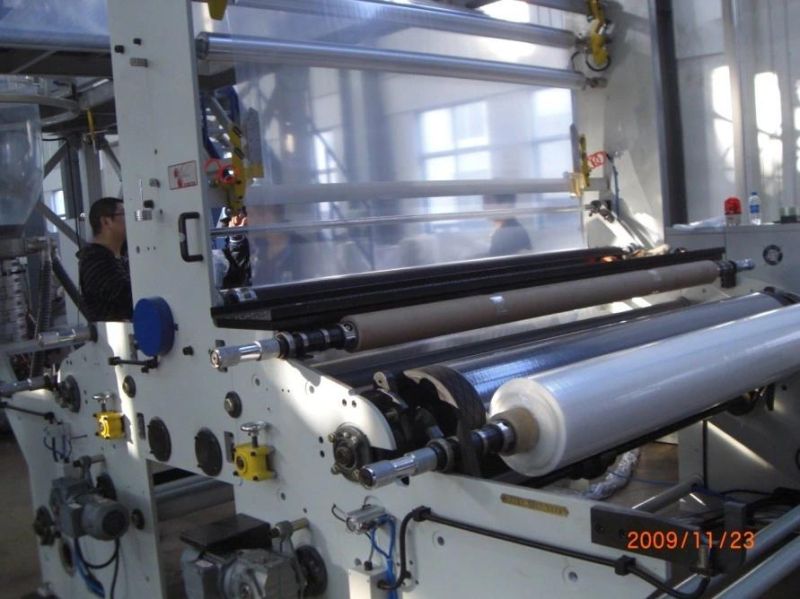

Rewinding Part :Three to Five Layers Co-Extrusion Film Blowing Machine
