HDPE Fishing Net Fiber Extruding Machine / PP Nylon Pet Monofilament Yarn Rope Making ...
Shandong Haidai Intelligent Machinery Co., Ltd.- Type：Fiber Extruder
- Plastic Processed：PP
- Product Type：Granulating Extruder
- Feeding Mode：One Feed
- Assembly Structure：Separate Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：HDYSJ
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Non-Automatic
- Computerized：Non-Computerized
- Capacity：1000-3000kg
- L/D：33
- Fiber Dia：0.13-0.35mm
- Rotation Speed of Screw：20-90r,Min
- Drawing Ratio：4-10
- Cooling Mode：Water Cooling
- Screw Dia：70mm,80mm,90mm
- Power：100kw
- Machine Weight：10-15 Tons
- Machine Dimension：20*3*2.5m
- Function：Yarn Extruder
- Advantage：High Quality
- Installation：Yes
- Mode：Hdysj
- Yarn Type：Round Yarn

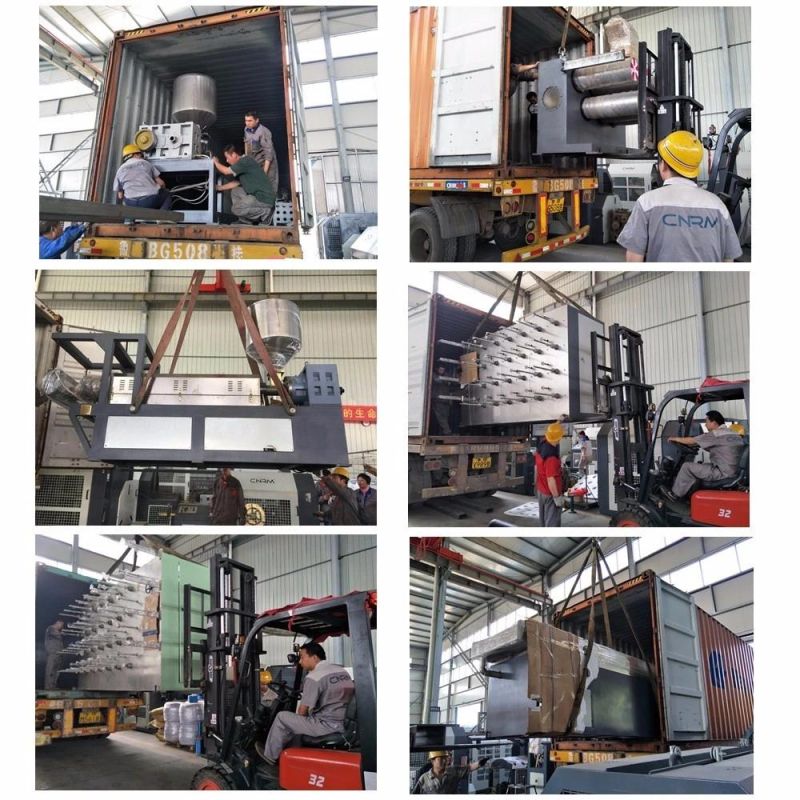

- Transport Package：Container
- Specification：27*2.2*3
- Trademark：CNRM
- Origin：China
- HS Code：84772090
- Production Capacity：High
Description
PP/PE/HDPE Monofilament Yarn For Making Rope or NetRatio of L/D 33 33 33 Rotation Speed of Screw 20-90r/min 20-90r/min 20-90r/min Drawing Ratio 4-10 4-10 4-10 Cooling Mode Water Cooling Water Cooling Water Cooling Power Consumption 100KW/65KW 130KW/80KW 150KW/100KW Max Output capacity 1200KG/24H 2000KG/24H 3000KG/24H Machine Weight 13 Tons 15 Tons 18 Tons Machine Dimension(L*W*H) 20*3*2.5M 23*3*2.5M 27*3*2.5M
*Precision ground and tempered steel
*High L/D ratio for higher output
*Cooling bath is constructed from stainless steel to prevent corrosion
*Take-off speed is powered by vs motor with adjustable speed for smooth whining and stretching performance
*Orientation device is especially designed to allow the filament to flow on water thus ensuring proper
*Filament roundness, uniformity and smoothness

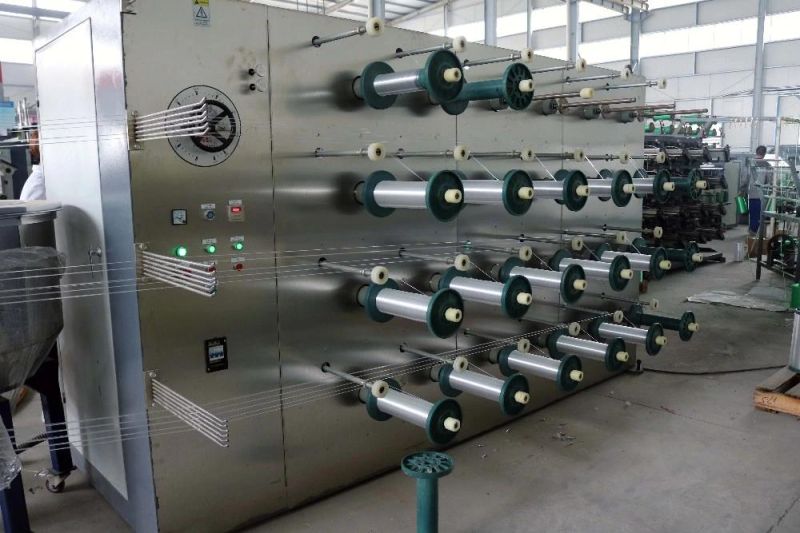

*Different types of winder can be provided depends upon product and customer requirement

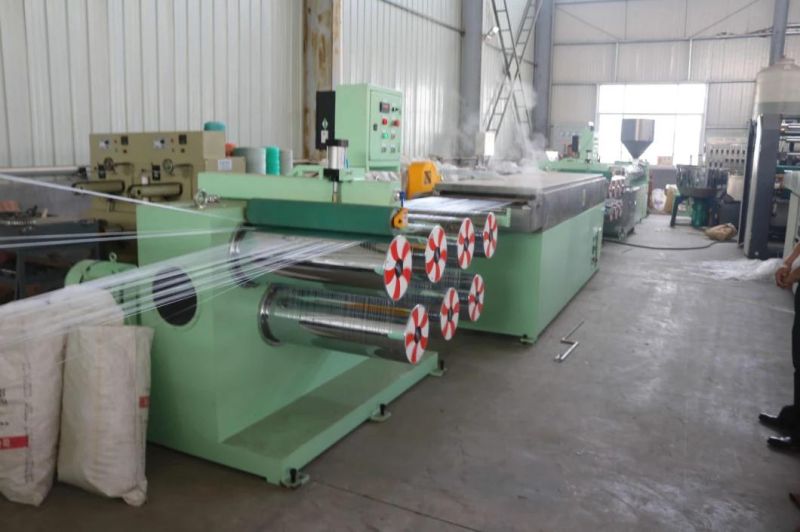

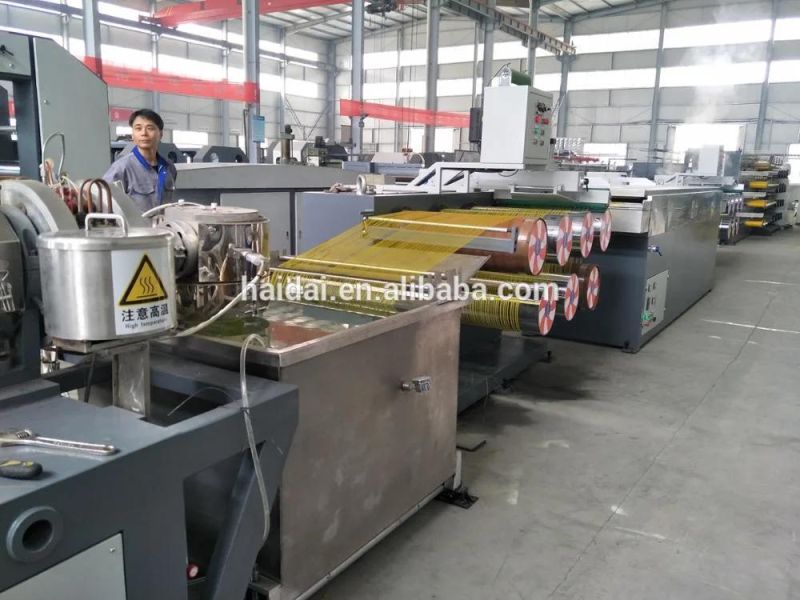

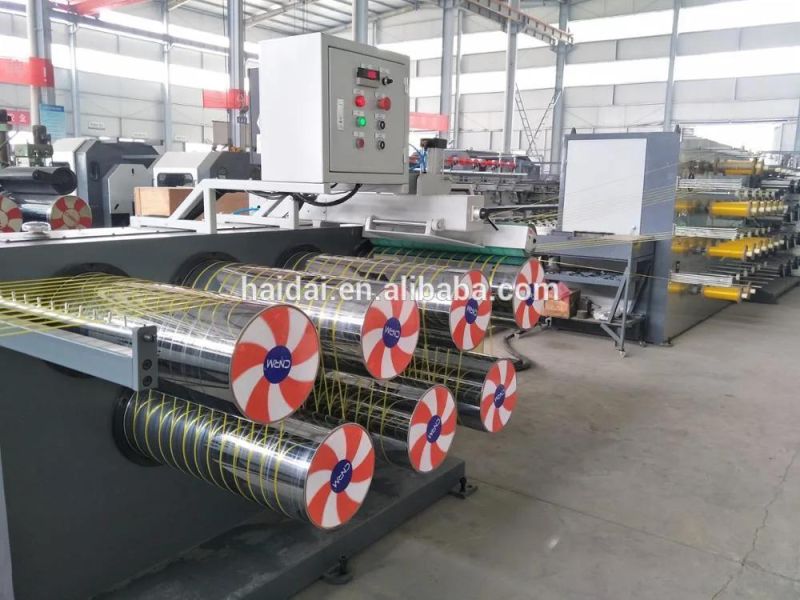

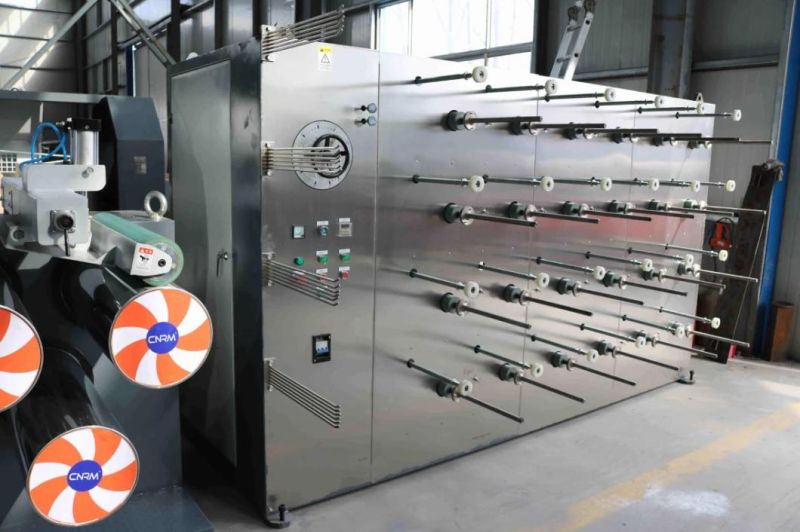

Detailed ImagesPP Yarn Plastic Filament Extruding Machine

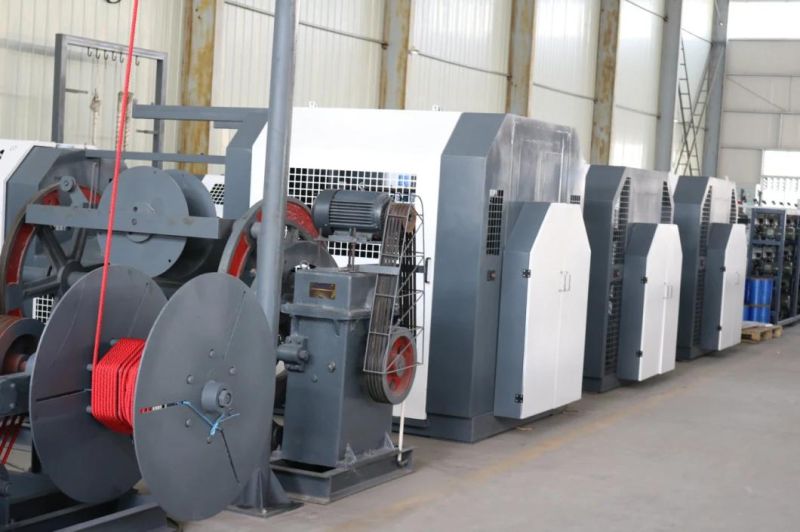

Our CompanyTaian Haidai Rope Machinery Science Technology Co., Ltd. has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
PP Yarn Plastic Filament Extruding Machine Key Features
*The screw and barrel is manufactured from special nitrogen treated*Precision ground and tempered steel
*High L/D ratio for higher output
*Cooling bath is constructed from stainless steel to prevent corrosion
*Take-off speed is powered by vs motor with adjustable speed for smooth whining and stretching performance
*Orientation device is especially designed to allow the filament to flow on water thus ensuring proper
*Filament roundness, uniformity and smoothness
*Different types of winder can be provided depends upon product and customer requirement

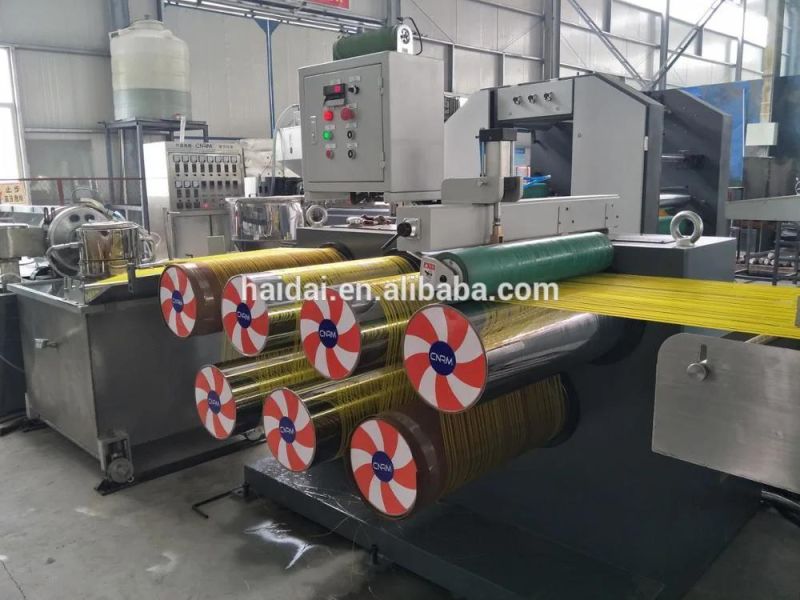

Detailed ImagesPP Yarn Plastic Filament Extruding Machine
Our CompanyTaian Haidai Rope Machinery Science Technology Co., Ltd. has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
