• Model NO.：TEX 160
• Type：Involute Inner Spline
• Shaft Hardness：HRC 38-42
• Material Hardness：HRC 58-62
• Shaft Material：Wr15e
• Screw Material：C22
• Function：Melting and Mixing
• Transport Package：Wooden Box
• Specification：TEX160
• Trademark：As required,JOINER
• Origin：China
• HS Code：8477900000
• Production Capacity：1000 Pieces,Year

Basic Info.

Model NO. TEX 160 Type Involute Inner Spline Shaft Hardness HRC 38-42 Material Hardness HRC 58-62 Shaft Material Wr15e Screw Material C22 Function Melting and Mixing Transport Package Wooden Box Specification TEX160 Trademark As required/JOINER Origin China HS Code 8477900000 Production Capacity 1000 Pieces/Year

Product Description

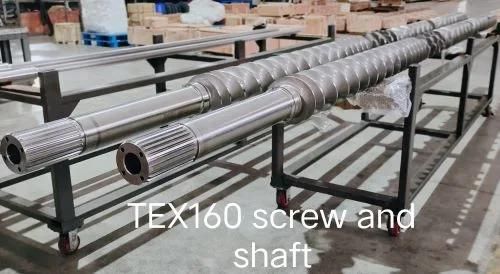

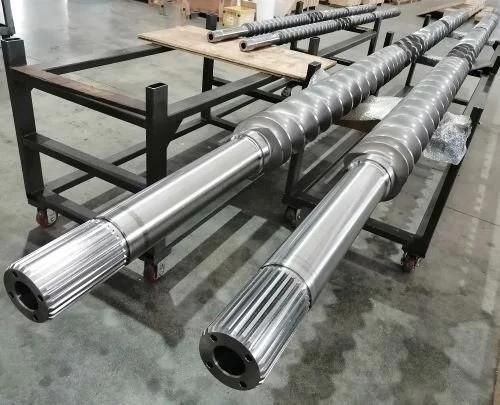

TEX160 Wear Resistance Screw Elements and Milling Shaft for Twin Screw Extruder

Joiner have been successfully applied in the production of different extruder models at home and abroad, and has been unanimously recognized by customers.

Provide parts for companies such as Coperion, Berstorff, Leistritz, W&P,JSW, Kobe and Toshiba to just name a few.

1. Details of products


Screw Design	Double-Screw
Extrusion Brand	JSW
Elements surface Treatment	Sand blasting
Elements Flight	Double flighted
Elements spline	involute inner spline
Shaft spline	involute spline
Application	Twin screw extruder
Certification:	ISO9001 2015

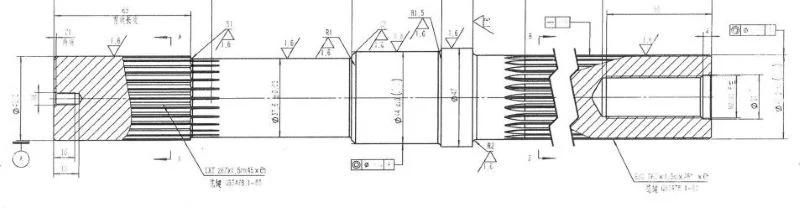

2. Example drawing of shaft


3. Kinds of Materials of shafts:

Imported Material	WR Material	Domestic Material
1.Made in Germany 2.Made in Janpan	WR6 WR12 WR8 WR9 WR15A WR15E WR10 WR30	40CrNiMo

3. Detail introduction of some shaft materials:

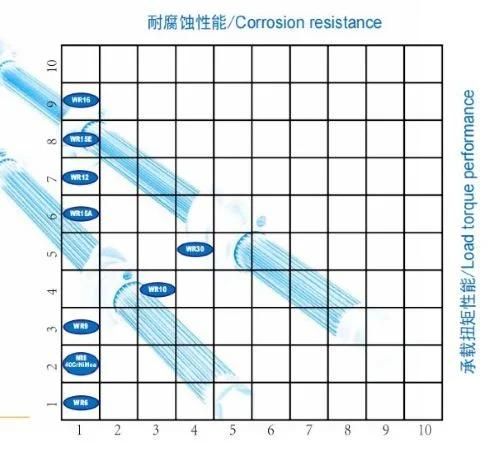

WR15E	WR30	40CrNiMo
Ralloy WR15E is a chromium-molybdenum-vanadium-slloyed steel which is characterized by:	Ralloy WR30 is a high pressure nitriding iron-based Cr-Mo alloy Which is characterized by	40CrNiMo is a kind of alloy constructional steel.
- Excellent tensile strength combined with good toughness	-Superior corrosion resistance
-High thermal stability, high resistant to thermal shocks	-Excellent machinablity
-Good high-temperature strength	-High dimensional stablity after heat treatment.
-Good machinability and polishablity	-Excellent grinding and polishing ability to obtain optimal surface quality
-Excellent through-hardening properties	-High durability by maximun hardness under static and dynamic demands
-Good dimensional stability during hardening.	-Good wear resistance
	-High temper resistance up to 500 °C

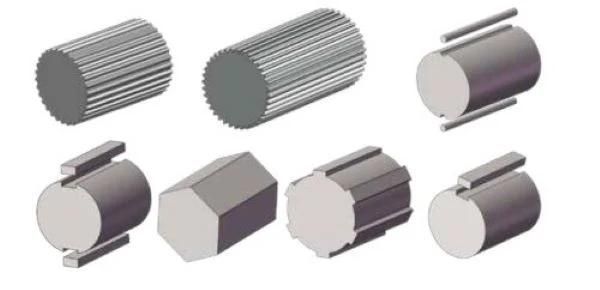

4. Types of shaft to choose:

Single keyway                    Square keyslot              High torque key button          Dual keyslot
Involute inner spline           Round keyslot               Rectangle spline                   Client requirements available

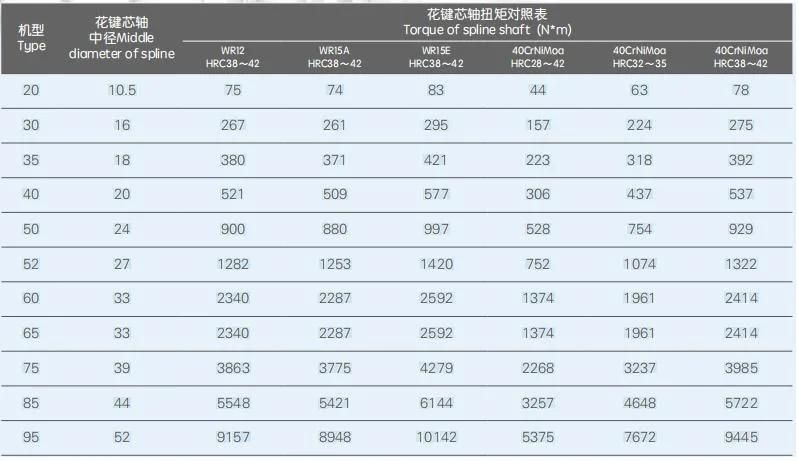

5.  Torque of spline shaft

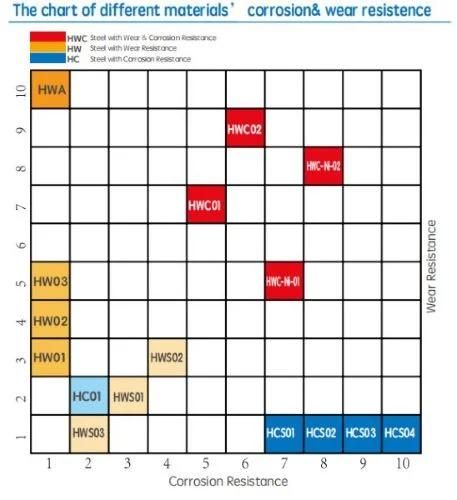

6. Materials of screw elements
1. For wear application:
Tool Steel : W6Mo5Cr4V2;
PM-HIP material : SAM10 SAM26 SAM39 CPM10V CPM9V
2. For corrision application:
Nitrided Steel: 38CrMoAI;
PM-HIP material : SAM26 SAM39 CPM10V CPM9V
3. For wear and corrision application:
PM-HIP material:SAM26 SAM39 CPM10V CPM9V
4. Other Materials:
Stainless Steel: 316L, C276 etc.


7. Why choose us?
(1) Total solution of highly wear-resistance and corrosion-resistance problems;
(2) Expert of engineering design and consulting,
(3) Advanced manufacturing capabilities and technology,
(4) Lean production management
(5) Top quality products with high cost performance

8. Equipment:

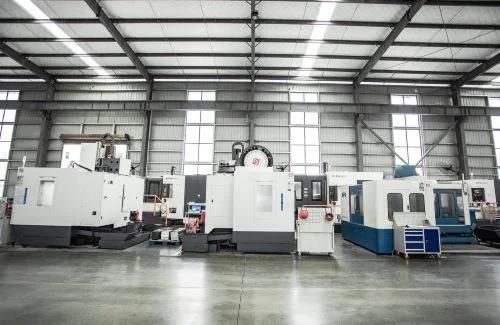

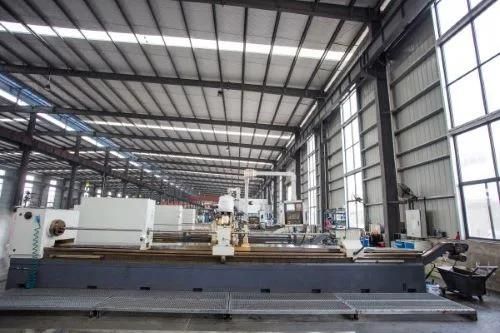

Joiner has over 130 advanced equipments such as CNC thread grinder, CNC thread milling, CNC kneading block grinder, CNC forming milling, 4-axis machining center, automatic deep hole grinder, CNC lathe, CNC surface grinder, CNC external grinding, CNC band saw, laser marking machine, vacuum quenching furnace and vacuum tempering furnace. After the raw materials enter the market, all the processing procedures are in-house.





All shafts must be strictly straightened


 All screw elements must be strictly inspected



8. Packing details:

1). Rust-proof oil processing,
2). Oiled paper packages,
3). Bubble wrap package,
4). Special foam packaging,
5). Packing,
6). Sealing.

 9. Service Network Assurance

We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.

10. Products display:
