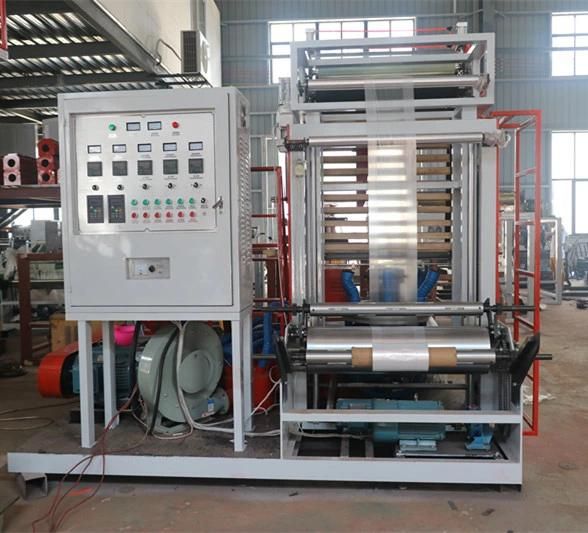

Mini PE Heat Shrinkable Film Blowing Machine
RUIAN YUNBANG MACHINE CO., LTD.- Warranty：One Year
- Type：PE Film Blowing Machine
- Raw Material：PE
- Maximum Folding Width of Film：600mm
- Screw Diameter：50mm
- Automation：Automatic
Base Info
- Model NO.：SJ700
- Computerized：Computerized
- Machine Weight：2t
- Certification：CE, ISO9001:2008
- Max. Screw Speed：100 R,Min
- Main Motor Power：11 Kw
- Total Machine Power：About 28
- Machine Size：4*1.8*3.6 M
- Die Head：Rotary Die Head
- Rewinder：Double Winder
- Transport Package：Film Package or Wooden Case
- Specification：SGS
- Trademark：YUNBANG
- Origin：China
- HS Code：84773090
- Production Capacity：20 Sets,Month
Description
LDPE Heat-shrinkable membranePackage, drink, foodstuff, medicirie, making-up, electrical appliance, siliconlice, synthetictesin, fetilizer, pottery, glass, wall paper, varnished wire, welding wire, rope mesh, floor borad, aluminun-base alloy, beer, mineral water etc. Electric wdlding rod and welding wire, various high strength packaging for metals.
LLDP LDPE HDPE
Screw Diameter mm
50
65
80
90
Screw L/D Ratio L/D
28: 1
Max. Screw Rotation Speed r/min
100
100
100
100
Extruder Driving Power kw
11
18.5
30
37
Air Ring
Dual-lip Air RingRorary Air Ring
Die Structure
Cylindrical Helical Die Core360° Rotary Die Head
Max. Take-off or Wind-up Speed m/min
80
80
80
80
Total Power kw
≈ 28
≈ 42
≈ 58
≈ 75
Overall Dimensions(L× W× H) M
4× 1.8× 3.6
5.8× 2.2× 6.0
6.5× 2.7× 6.0
8.2× 3.2× 8.8
Weight T
≈ 2.2
≈ 4.5
≈ 6
≈ 9
LLDP LDPE HDPE
Max. Take-off or Wind-up Speed m/min
