• Model NO.：XDC-171202
• Condition：New
• Whole Dimension：20-25m*5m*3.5m
• Inverter：ABB
• Mould：20-4000mm
• Transport Package：Wooden Box
• Specification：300-3000 mm
• Trademark：XDC
• Origin：China
• Production Capacity：10 Set,Year

Basic Info.

Model NO. XDC-171202 Condition New Whole Dimension 20-25m*5m*3.5m Inverter ABB Mould 20-4000mm Transport Package Wooden Box Specification 300-3000 mm Trademark XDC Origin China Production Capacity 10 Set/Year

Product Description

- high speed and high efficiency extrusion on the basis of high quality
- low cost and high profit
- to create value for our customers


Technical parameter:

Model	Pipe(mm)	Speed(m/min)	Total Power(KW)
XDC/KRPE-2000	φ300-φ2000	0.35	320
XDC/KRPE-3000	φ300-φ3000	0.30	460
XDC/KRPE-4000	φ1500-φ4000	0.15	660

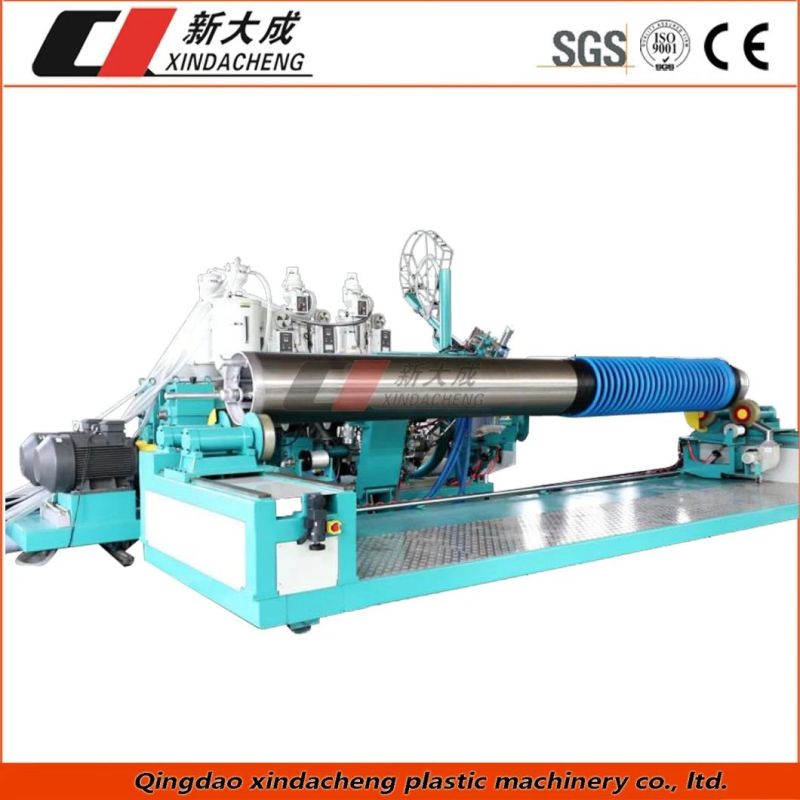

Product description:
The unit is commonly known as krah pipe in China, and it takes high-density polyethylene (HDPE) resins as main material by hot winding molding process. It is winding structural wall pipe B with strong anti-pressure capability, and supported by polypropylene (PP) single wall corrugation pipe. The pipe has smooth surfaces inside and circular reinforced structure outside, and it also has high circular rigidity, strong impact resistance and melting sealing joint. It belongs to flexible pipe.
1.High-efficiency special extruder with high output and low energy consumption;
2.Special designed cladding moulds with improving the circular rigidity, easy disassembling and assembling;
3.European or Japanese ignition systems and flame detecting equipment,
automatically detects the flame working state, with high reliability and safety;
4.The demolding system takes platform towed demolding structure, with high demolding efficiency;
5.The production line takes PLC control system, and it can control the entire manufacturing process by Man-machine interface; the operator can finely adjust the production parameters according to the actual production status and the adjusted data can be saved in the control system.

Components of the production line:
1. Optimized extruder placement and flow design reduce the melt pressure and energy consumption.
2. The extruder platform car and winding platform adopt the precise straight line guide three dimensional and controlled by Servo.
3. Patented technology for extruders of co-extrusion technology.
4. Choose different assigments according to raw material property and color, etc.
5. The glass fibre can be added to increase the pipe stiffness and reduce the pipe cost.
6. Advanced PLC control system, the whole line can be intergrated into the control system, not only controlled by linkage, but also by individual control.
7. cooling cutting: the cooling cutting adopts single-position design for cooling the product. Pneumatic cantilever control, exact dimension and high efficiency.
8. demoulding device: advanced structural design and high reliability. High degree of automation effectively protect the mold and reduce the labor intensity.

Auxiliary equipment:
 1.  Dressing device: the horizontal walking hydraulic lift will transfer the pipe after demoulding from hosting rack to the dresser and repair the pipe socket to meet the requirements of the exterrior quality of the pipe. Moreover, the electric fuse is embedded in the socket. Finally inspect and weigh the pipe.
2. PP corrugated pipe production line: dual module design, unique designed cooling system, high-speed of production, high efficiency.
3. Forming mould:
diameter range : 200-4000mm. Steel structure welded frame, easy operation, special steel production, long life and smooth demoulding.
4. winding system: adopt full mechanical mode, convenient maintenance, strong reliability and tidy layout.


Application Field:
Underground drainage, sewage, aeration and others in municipal construction areas;
Drainage for railway, highway, court and others in road engineering areas;
Nuclear power plants, steel mills, power plants, petrochemical plants, docks, stations;
Tidal flat, saline pool, riverbed, soft foundation expansive soil, earthquake zone and others in adverse environmental areas.

Qingdao Xindacheng Plastic Machinery Co., Ltd  The company mainly engages in research, development,

design, manufacture and sales service of new type plastic machinery,
:HDPE/LDPE/PVC/PE/PPR pipe production line .high speed flat drip irrigation pipe production line .
round drip irrigation pipe making machine ,
PET/PP strap extrusion machine.krah pipe making machinery .PET sheet extrusion line polyster fiber strap production line .
PVC layflat pipe production line
is able to provide "Turn-key project" of complete set
of production line for many plastic product. It owns powerful technology strength, gathers professional scientific and
research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and
marketing.
Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class
product and considerate service to help you in accomplishing great business and cooperate with together to create
new era in plastic machinery industry.Xindacheng always considers that customers' interest is the first important. Over
decades, Xindacheng's product spreads all over the country and exported to more than 40 countries and regions such as,
U.S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Iran, Saudi Arabia, Egypt, Indonesia,
Singapore, Taiwan, HK, Malaysia, and wins customers' reputations.Company board chairman and staff warmly welcome
friends from all circles to visit us
