• Model NO.：SJ45, SJ50, SJ65
• Customized：Customized
• Condition：New
• After-sales Service：in Door Installation, Online Support

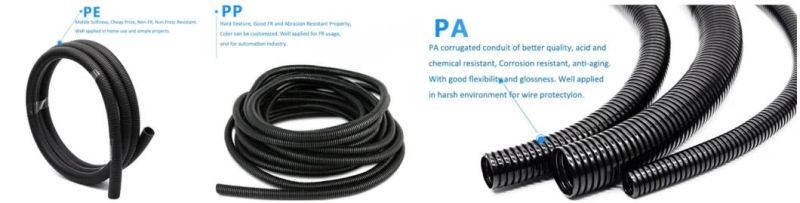

• Suitable Material：PP PE PVC HDPE PA Nylon
• Motor：Simens
• Contactor：Siemens
• Machine Type：Corrugated Pipe Machine
• Machine Name：Flexible Corrugated Pipe Making Machine
• Machine：Plastic Single Wall Corrugated Pipe Making Machine
• PVC Corrugated Pipe Making Machine：PVC Conduit Pipe Making Machine
• Transport Package：Wrapping Film Packing
• Specification：Customized
• Trademark：TONGSAN
• Origin：China
• Production Capacity：10 Sets Per Month

single wall corrugated pipe machine ModelPipe diameterExtruder model Motor powderProduction speedMold pairsVacuum pump(Optional)SJDBGZ-145-14mmSJ-4511KW6-8m/min42 SJDBGZ-3210-32mmSJ-5015KW5-12m/min501.5kwSJDBGZ-5016-50mmSJ-6530KW3-10m/min502.2kwSJDBGZ-6316-63mmSJ-6530KW3-10m/min502.2kwSJDBGZ-11032-110mmSJ-7537KW3-6m/min 725.5kw

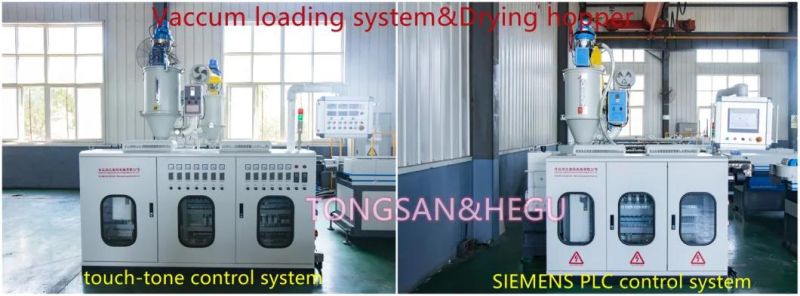

Extruder Part
Vacuum feeding system,Drying loader,Various of screw and barrel

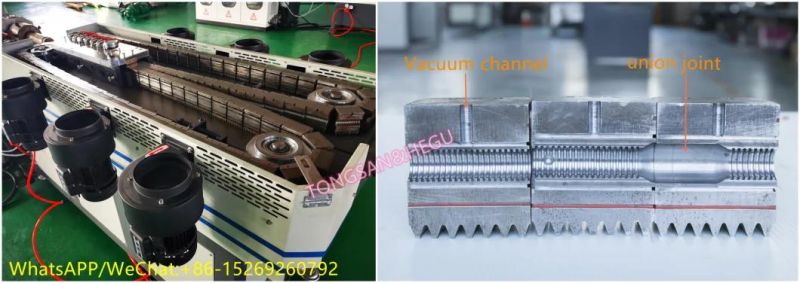

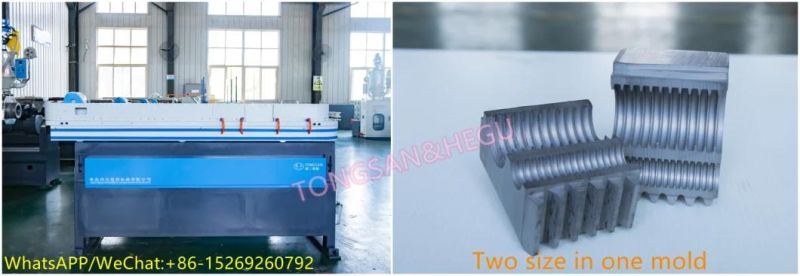

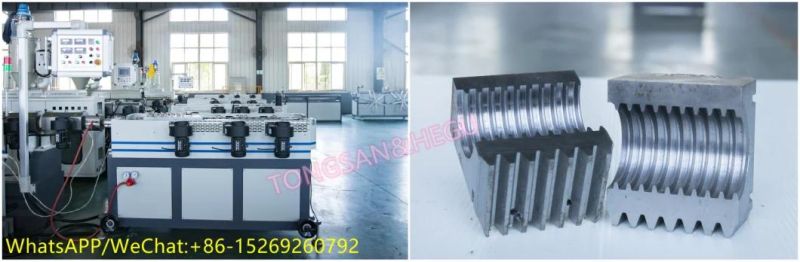

FORMING MACHINE
The molds are design and made by ourselves,we have own machining center.
4.5-14mm Single wall corrugated pipe making forming machine
Normal speed model single wall corrugated pipe making forming machine ( POPULAR MODEL)

15-25m/min single wall corrugated pipe making forming machine

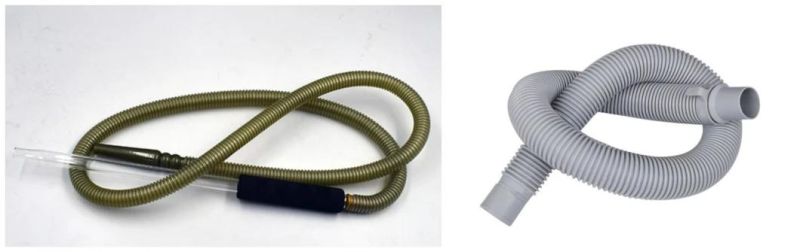

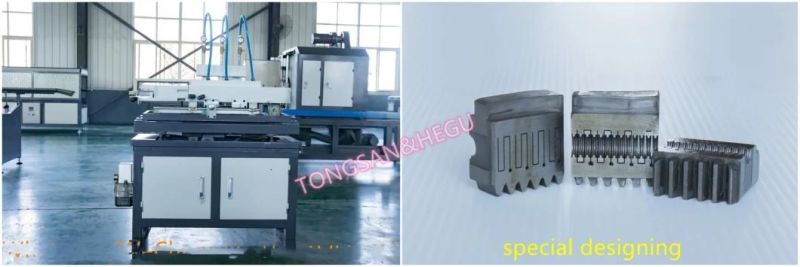

Special design Union joint single wall corrugated pipe/shisha hookah hose/magic pipe making forming machine

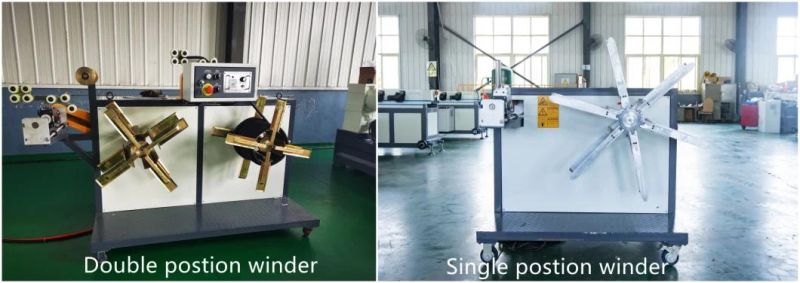

Single wall corrugated pipe rolling-up Winder

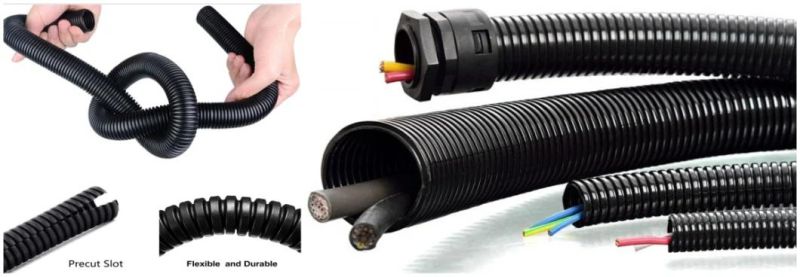

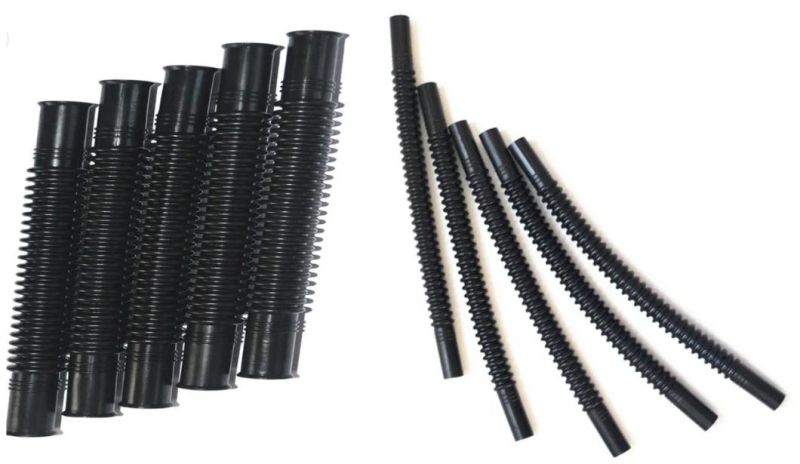

The advantages of plastic corrugated pipes

1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.

2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;

3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;

4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.

5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its flexibility,so that it can be laid on the uneven ground continuously.

6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.

7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.

8. safe insulation, is an ideal material for the electric wire conduit.

Our Service
Pre-sale services
1.Provide the free consultation of the machine
2.Provide the standard device and the flow chart
3.According to the clients' special requirement, offering the reasonable plan and free design helping to select the machine
4.Welcome to visit our factory or the domestic clients' factory.
Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Inspect the machine before leaving the factory.
3.Send our experienced workers and engineer to your factory for installing and adjusting all the machine
4.Train the first-line operator.
5.Provide the basic formula
After sale services
1.One year warranty
2.24 hours online service
3.Engineers available to service machinery overseas
4.Provide technical exchanging
If you are interested in our corrugated pipe machine,please contact me at any time.
now we have ready made machine in the factory.
