• Model NO.：LSJ-80,156+65,30
• Customized：Customized
• Condition：New
• Name：Plastic Corrugated Roofing Sheet Machinery
• Sheet Width：720mm-1050mm
• Sheet Thickness：0.5mm-3mm
• Sheet Applications：Roofing Tiles,Sheets,Panels for Warehouses
• Extruder Model：Conical Twin Screw Extruder +Single Screw Extruder
• Die Head：T-Type Die Head
• Main Electrical Parts：ABB, Omron, Rkc, Schneider, Siemens etc
• Guaranteed Time：12 Months
• Transportation：1 Set of 40gp Container and 1 Set of 20gp Containe
• Transport Package：Wooden Case or Other Moistureproof Packages
• Specification：LSJ80,156+65,30
• Trademark：Leader Machinery
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：35 Line Per Year

PAR T1   THIS LINE CONSISTS OF (COMPULSORY)
1
Automatic spring feeding machine
1 set
2
Conical twin screw extruder SJSZ-80/156
1 set
3
Single screw extruder SJ-45/30 or 65/30 for UV extrusion
1 set
4
T-type /hanger type die head (JC-Times brand)
1 set
5
Corrugation forming boards
1 set
6
Cooling frame and edge cutting unit
1 set
7
Haul off machine
1 set
8
Plastic cutting machine-guillotine with meter counting
1 set
9
Stacker
1 set
10
Electrical cabinet (ABB,Omron, RKC,Schneider, Siemens etc)

11
Spare parts
1 set

PART 2   ACCESSORY MACHINE PARTS (OPTIONAL)
1
High speed hot and cold mixer SRL-Z 300/600
1 set
2
Plastic crusher SWP-450
1 set
3
Plastic pulverizer SMP-400
1 set
4
Air compressor
1 set
5
Industrial water chiller
1 set

PART 3 SHEET APPLICATIONS
1
Roof panels, roof tiles, roof sheets, ceilings
2
Factories, warehouses, farm building, greenhouses, canopies, walkways, patio covers,
Pergolas, cladding

PART 4 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1
Payment terms
40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2
Delivery time
70 days after receipt of prepayment
3
Packing method
Wooden cases/pallets with stretching films
4
Guaranteed time
18 months for mechanical parts, 12 months for electrical parts
5
After sale service
Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable
6
Contact
Ms Lilly Zhou (mob: 0086-15266238607)
Sheet specifications
Sheet width
720,760,820,840,860,880,900,930,950,980,1050mm etc
Sheet thickness
0.5, 0.8, 1.0, 1.2, 1.5, 2.0,2.5,3.0mm
Sheet length
4m, 6m or customized
Sheet weight
1mm thickness 1.4kg-1.85kg/m2, 2.0-2.4 thickness 2.5-3kg/m2
Suitable environment
-40(50)ºC-70ºC
Surface treatment
With UV coating
Service life
More than 25 years, 10years can be guaranteed
Colors and tints
Clear, bronze, opal
Textures
Can be textures
Sheet features
1
Weatherable and durable
2
UV-protection
3
Wide range of profiles
4
High impact option
5
Lightweight and easy to handle
6
Low maintenance
7
Chemical resistance
8
Excellent fire performance
9
Economical
10

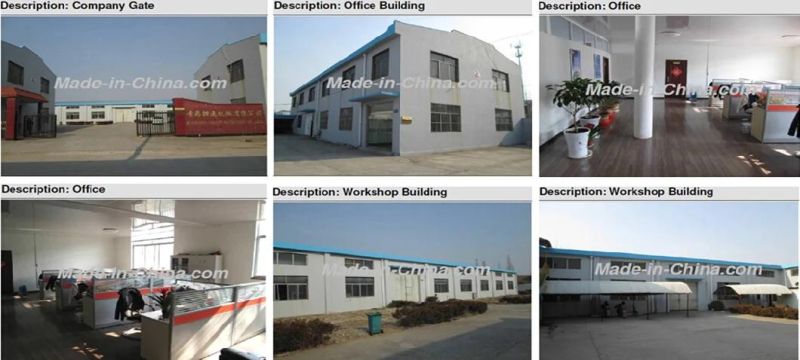

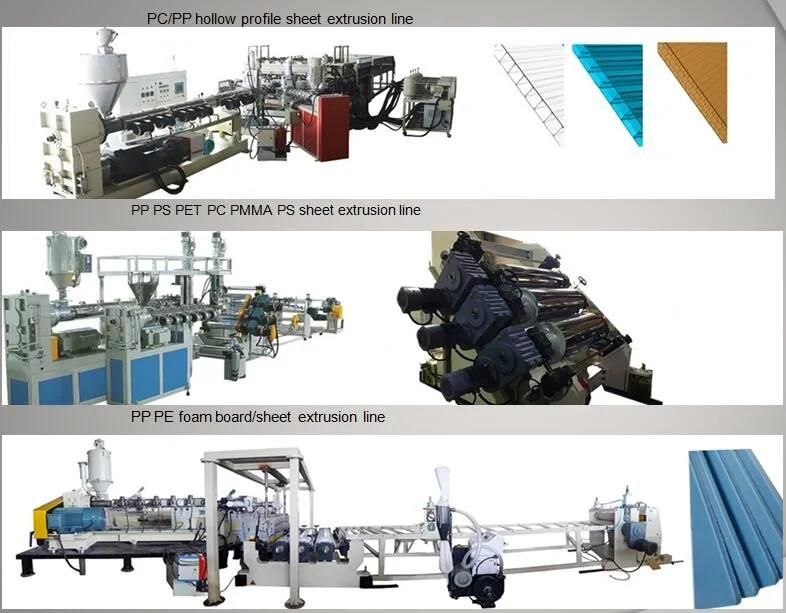

10 years warrantyPART 5 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 6 COMPANY CERTIFICATIONS:

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:

PART 9 CONTACT INFORMATION:
