• Model NO.：SJ
• Computerized：Computerized
• Machine Weight：1.5t
• Certification：CE, ISO9001:2008
• Gear Box：146
• Output：40kg,Hr
• Main Motor：11kw
• Film Thickness(mm)：HD:0.008-0.08
• Screw L/D Ratio：28:1
• Transport Package：as Require
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：20 Sets,Month

Model

SJ45/50

SJ55

SJ60

SJ65

Suitable Material

HDPE

Max Film Width(mm)

600

800

1000

1200

Film Thickness(mm)

HD:0.008-0.08

Max Extrusion Output HD

30/40kg/hr

50kg/hr

60kg/hr

80kg/hr

Gear Box

133/146

173

173

200

Screw Diameter(mm)

φ45/50

φ55

φ60

φ65

Screw L/D Ratio

28:1

28:1

28:1

28:1

Screw's Material

38 CRMOALA

Barrel's Material

38 CRMOALA

Barrel's Cooling Fan

250W×2

370W×2

370×2

370×3

Thermo Control (zone)

3

3

3

4

Driving Motor (kw)

7.5/11

18.5

22

30

Die Size (mm)

HD:φ60/80

HD:φ80/100

HD:φ100/120

HD:φ120/φ150

Screen Changer

Standard manual

Thermo Control (zone)

2

2

2

2

Air Ring (mm)

φ620

φ620

φ620

φ760

Cooling Blower (kw)

1.5

2.2

2.2

3

Center Steady Stick

1 PCS

Roller Width (mm)

φ138×650

φ138×850

φ138×1100

φ138×1300

Embossing Roller Width

550mm

750mm

1000mm

1200mm

Take-UP Motor (kw)

0.75

1.1

1.1

1.5

Take-UP Speed(M/min)

10-60

10-60

10-60

10-60

Height adjustable type

700mm

Type OF Winder

Surface Friction Single Winder

Roller Width (mm)

700

900

1100

1300

Winding Motor (N.M)

6

10

10

16

Winding Speed(M/min)

10-60

10-60

10-60

10-60

Voltage

380V, 50HZ, 3PHASE

Cover Dimensions (m)

4.5×2.0×4.3

4.5×2.2×4.5

5×2.5×4.8

5.5×2.8×5.2

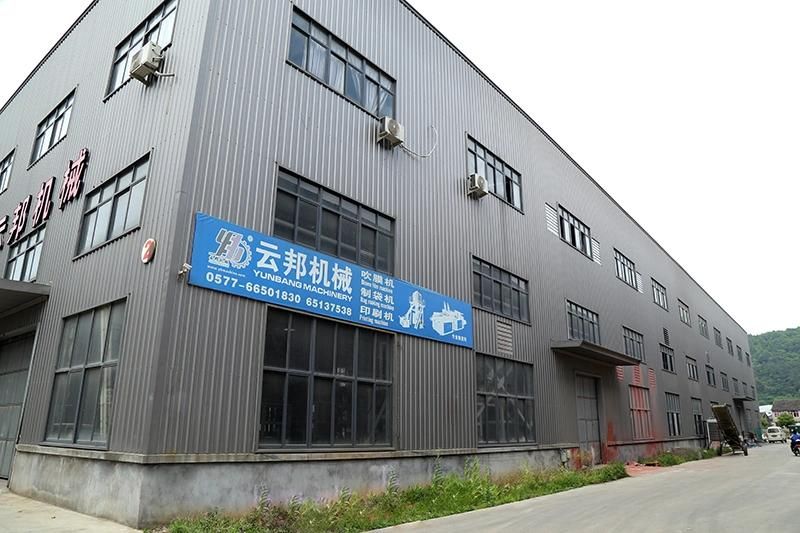

RUIAN YunBang Machinery Co., ltd. has been the symbol of high quality and excellent service in machiery areas for many years, researched and developed our machines on basis of advanced technology introduced from developed countries. as a professional and experienced manufacturer in china, we're able to produce many kinds of machines like film blowing machine, bag making machine, paper bag machine, packing machine, printing machine and leather & shoe machines, ect.









Have any require, you could contact with us:

Add: Building 2 , bailian Industrial Zone ,jinhu street, Ruian Wenzhou, Zhejiang, China

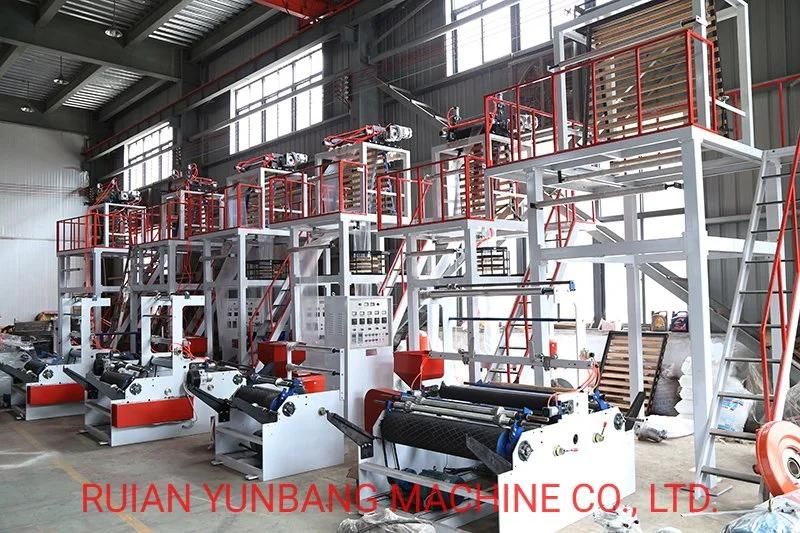

High and Low -Density Film Blowing Machine
Optional Device:
1. Auto Loader
2. Corona
3. Automatic Air Supply Device
New Type High Technologe
