• Model NO.：YJ-MEP1
• Condition：New
• Quality：High
• Precision：High
• Efficiency：High
• Output：High
• Performance：Good
• Operation：Easy
• Life：Long
• Running：Stable
• Color：as Per Standard
• Volt：220V, 380V, 415V, 440V
• Transport Package：Plastic Film, Wooden Pallet
• Specification：CE
• Trademark：Yuanjin
• Origin：China
• HS Code：84772090
• Production Capacity：50sets,Month

Basic Info.

Model NO. YJ-MEP1 Condition New Quality High Precision High Efficiency High Output High Performance Good Operation Easy Life Long Running Stable Color as Per Standard Volt 220V, 380V, 415V, 440V Transport Package Plastic Film, Wooden Pallet Specification CE Trademark Yuanjin Origin China HS Code 84772090 Production Capacity 50sets/Month

Product Description

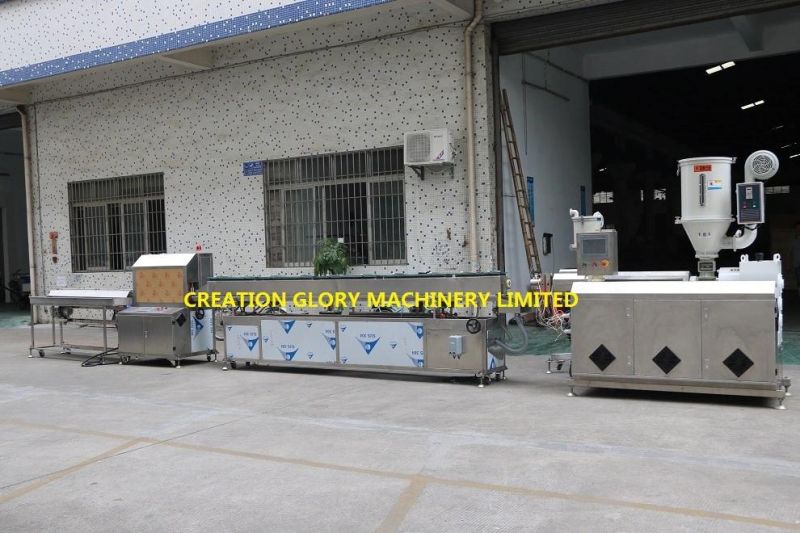

High efficiency medical endotracheal intubation pipe extruding manufacturing machine






Our advantages in the medical tubing extrusion machine:


(1) Professional dedicated in research, development, production and technical service of precise medical tubes
extrusion production lines for many years;

(2) Top-ranking technical, mechanical, electrical engineers which have rich practical experience in design & manufacturing
of medical catheter tube extrusion machines;


(3) Our medical catheter tube extrusion equipment conforms with medical-use no-dust & no-bacteria using conditions, could be used in GMP certified workshop;


(4) Cooling water tank is fully sealed by toughened glass, tractor and cutter machine have transparent glass cover,
fully stainless steel material structure, no rust, no paint, machine structure design without cleaning dead corner,
easy for cleaning.


Introduction of medical endotracheal intubation pipe extruding manufacturing machine


1. The machine is used to produce endotracheal intubation, reinforced tracheal intubation, double-lumen tracheal intubation tube etc medical tubes;

2. Applied materials: Medical grade PVC;

3. Features of our medical tracheal tube extrusion line


(1) Endotracheal intubation tube production line is one of our matured, advantageous and competitive production lines,
it could produce both ordinary endotracheal intubation tube and reinforced endotracheal intubation tube,
we have rich practical operation experience;


(2) Besides tube extrusion machine, we could also supply whole set of endotracheal intubation tube extrusion forming technology
and auxiliary equipment for head-melting, printing, bag, glue filling etc processing;


Composition & technical details of medical endotracheal intubation pipe extruding manufacturing machine

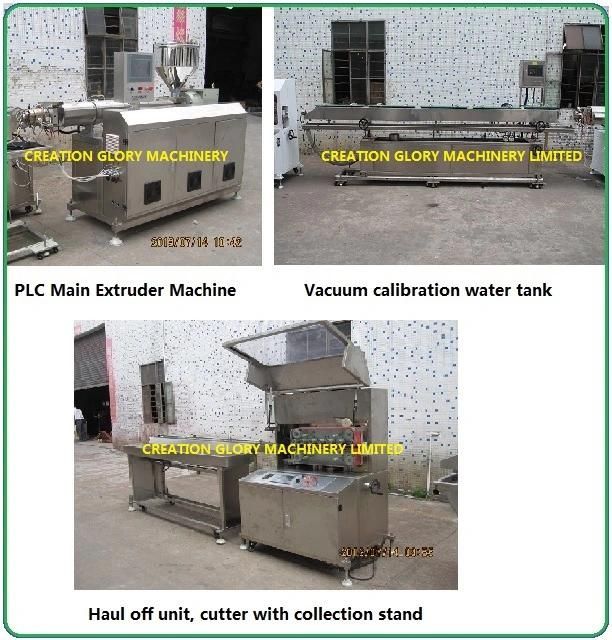

1. Composition of the extrusion production line:



MACHINE PARTS	QUANTITY
Φ55 MAIN EXTRUDER	1 SET
Φ30 AUXILIARY EXTRUDER	1 SET
HIGH PRECISION EXTRUDING DIE	1 SET
VACUUM COOLING CALIBRATION WATER TANK	1 SET
OUTER DIAMETER MEASURING INSTRUMENT	1 SET
MEDICAL USE PRECISE TRACTOR MACHINE	1 SET
MICRO-COMPUTER CUTTER	1 SET
CONVEY AND COLLECTION STAND	1 SET

2. Technical details of endotracheal tubing extrusion machine:




Name	Features
SINGLE SCREW EXTRUDER MACHINE	1. Two sets of main extruder machines for co-extrusion, screw and barrel of the two extruder machines adopt high strength Nitrogenization alloy steel (38CrMoAIA) or High strength quenching alloy steel (9Cr18MoV); 2. Screw special for PVC, high compressing ratio, suitable for soft PVC plasticizing, good plasticizing effect; 3. AC frequency converter for drive, Siemens motor drive, intelligent temperature controller with precision ±1ºC; 4. High-end machine model is equipped with fully computer control, 10 inch touch screen operation panel, integration of various safety protection function, technology parameter recording etc functions;
EXTRUDING DIE	1. Imported S136 thermo-stable steel special for extruding die; 2. Smooth mirror surface flow channel, which provides enough guarantee for high quality medical catheters;
VACUUM COOLING WATER TANK	1. Imported SUS304 stainless steel bending to form the tank; 2. Medical grade stainless steel vacuum pump;         3. Fully sealed by glass cover, avoiding-dew dripping onto floor structure (water collection device under the water tank); 4. Sealed type blowing-dry device, no water splash onto the floor;   5. High precision and roundness of the tubes; 6. Product precision and stability are leading in the industry;
PRECISE TRACTOR & CUTTER MACHINE	1. Tractor machine and cutter machine are of conjoined structure, steady, with upward-turning over cover; 2. Fully computer control, touch type interface operation panel; 3. Servo motor drives flying cutter device, and with alcohol blade cleaning device; 4. Cutting length be set freely, cutting times counted automatically; 5. Tractor speed adjustable, all data digital display, touch screen operation;
LASER ONLINE DIAMETER MEASURING INSTRUMENT	NO-touch online live catheter outer diameter checked precisely, precision 0.003MM.

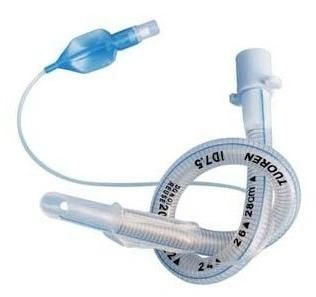

Finished medical endotracheal intubation

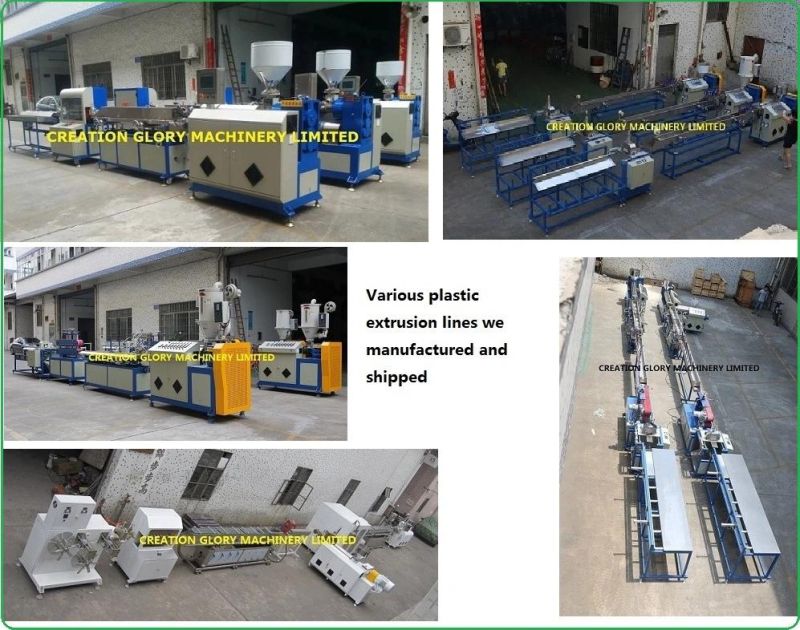

Various extrusion production lines we manufactured:








Why choose CREATION GLORY MACHINERY?


1. Technology:

Extrusion technology is critical in plastic product extrusion production, we own leading extrusion technology in producing various plastic products including pipe, profile, filament and strip, tape etc, so as to help our clients set up plastic extrusion whole plant for producing various plastic extrusion products successfully and stably;


2. Experience:

With our almost 20 years experience in plastic extrusion industry, we not only help our clients with design of whole extrusion production line, but also sourcing plastic raw materials suppliers, suggesting auxiliary equipments needed etc;


3. Professionality:

Specialized in plastic extrusion production line design and manufacturing for more than 10 years, we are serving lots of big and small companies in China and also over the world, including many listed companies.


4. Quality:

The quality of products is footstone of enterprise's constant development, always endeavoring to do much better, quality comes first, developing & innovative is our responsibilities;

We always care quality of each and every small part of the machines, and keep improving design and structure of whole line, so that our clients could get the production lines in good quality, with excellent performance, stable running and also with long life.


5. Honesty:

Working on plastic extrusion industry for more than 10 years basing on sincerity, we enjoyed good reputation in this industry, and we keep very good relationship with our suppliers, clients and partners all over the world.





FAQ


Q1: What is your guarantee of the machine?
A1: The guarantee period of our machine is 12 months;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container in nude packing.

We place and fix the machines well into container and check carefully before closing the container
so as to ensure everything is well for the shipment. We care each and every point so that our clients could receive the machines in good status.

Q3: What is delivery time of the machine?
A3: About 45 working days;

Q4: What is your payment terms?
A4:  30% advance payment by T/T upon order, balance 70% by T/T before shipment OR by L/C;

Q5: Which countries do you sell your machines to?
A5: Our plastic extrusion machines were sold to Russia, Ukraine, South Korea, Thailand, Malaysia, Vietnam, India, Bangladesh, Canada, USA etc countries.

Q6: Do you have instruction manual to guide us if i buy the machine?
A6: Yes, we supply detailed user manual for your reference. PLS read it for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q7: What is your service to overseas clients?
A7: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.

Q8: What is your contact details?
A8:  PLS contact belows:
