• Model NO.：CHSJ-GH N-120,3200; N-180,3500; N-200,4000
• Machine Weight：1300kgs, 1400kgs
• Certification：CE, ISO9001:2008
• Max Output：300kgs,H,600kgs,H; 900kgs,H
• Film Thickness：0.006-0.04mm
• Transport Package：12*5*11m; 15*5*22m; 16*8*22.4m
• Specification：12*5*11m; 15*5*22m; 15*5*22.4m
• Trademark：Chengheng
• Origin：Ningjin, Hebei, China
• HS Code：8477309000
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. CHSJ-GH N-120/3200; N-180/3500; N-200/4000 Machine Weight 1300kgs, 1400kgs Certification CE, ISO9001:2008 Max Output 300kgs/H,600kgs/H; 900kgs/H Film Thickness 0.006-0.04mm Transport Package 12*5*11m; 15*5*22m; 16*8*22.4m Specification 12*5*11m; 15*5*22m; 15*5*22.4m Trademark Chengheng Origin Ningjin, Hebei, China HS Code 8477309000 Production Capacity 100 Sets Per Year

Product Description

CHSJ-GH Greenhouse Film Blowing Machine(Greenhouse Film)





Model	N-120/3200 N-180/3500 N-200/4000
Film width (mm)	3000-12000mm  3000-16000mm  3500-24000mm
Film thickness	0.006-0.04mm
max output	300kg/h   600kg/h   900kg/h  Max Output depends on the width/thickness of film, the die size and raw material
Raw material	LDPE/LLDPE/HDPE
Diameter of screw	Φ120,30/1  Φ180,30/1   Φ220,30/1.  SACM 645 ,bimetallic ,five years guarantee
Gear box	280#  420#  560# Hard gear reducer specially for Extruders,grinding teeth hardened, internal and external oil circulation system
Take up roller(mm)	3200mm  3500mm   4000mm
Machine size	12*5*11  15*5*22    16*8*22.4

Note: The above specifications, dimensions & design characteristics are subject to change without notice


Product feature

1. Square steel structure tower
2. Traction inverter control, host frequency conversion control, ( fan frequency conversion control, winding frequency conversion control as option).
3. 100% inverter motor + frequency converter control
4. Enclosed over temperature cooling device
5. Brand Industrial electricity components
6. Aluminum guide shaft Collapsing frame
7. Ceramic heater

Optional devices

1. Automatic Hopper Loader
2. Film Surface Treater
3. Rotary Die
4. Oscillating Take Up Unit
5. Two Stations Surface Winder
6. Chiller
7. Heat Slitting Device
8. Gravimetric Dosing Unit
9. IBC(Internal Bubble Cooling Computer Control System)
10. EPC(Edge Position Control)
11. Electronic Tension Control
12. Manual mechanics screen changer
13. Edge material recycling machine

Our service:

1.Guarantee period: 5 year Garantee for Screw, from the date customers receive the machine.
lifetime warranty for after-sales service and mechanical parts.
2.Delivery:within 35-40days finish production,we start to manufacture the machine after we receiving 30% of the payment as deposit.
3.Packing: Film Wrap
4. After sale service:
We can arrange engineer to install the machine and training worker, but customers need to pay the charges, including flight tickets cost, accomodation cost, salary USD/day.
Free installation, ajustment and training for consumers purchase more than $100000 only
5.Professional advices and consultancy for the relating machines in 24 hours.




Ningjin Chengheng Plastic Machinery Co., Ltd.
A Manufacturer of Blown Film Extrusion Machinery and Bag Making Machinery

We have more than 15 years of experiences in plastic processing and plastic packaging machinery products.
In the past 15 years we have been building plastic machines for clients from all over the world.




Our products

1. Blown film extrusion machine, co-extrusion blown film machine. For 1-5 layers blown film made of LDPE, LLDPE, HDPE, OPP, PP, (bio) degradable plastics, recycled material and blends.
2. Bag making machine. For flat bags, Vest(T-shirt) bags, string drawing bags, Garbage bags, carry bags, roll bags, (Courier)permanent adhesive bags, laminated bags.
3. Plastic film printing machine. Plastic Laminating machine.

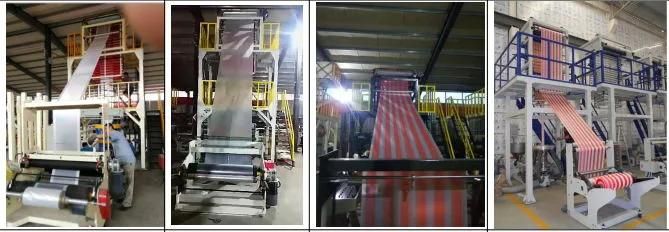

Our Blown Film Extrusion Machine

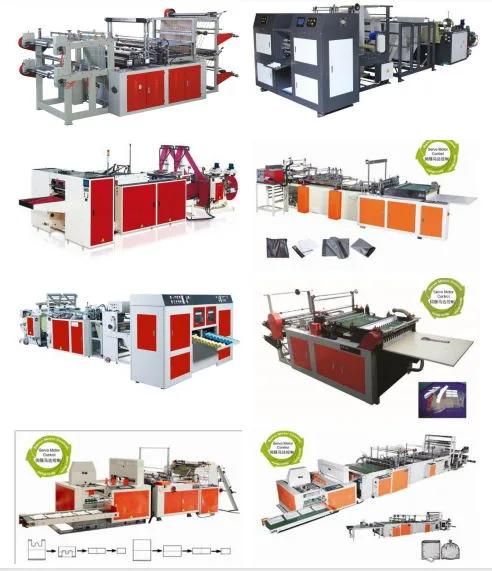

Our AUtomatic Bag making Machine




We have gained CE, SGS, or BV certificates for most of our products.
SGS and TUV audited plant. Golden member of Made-in-China

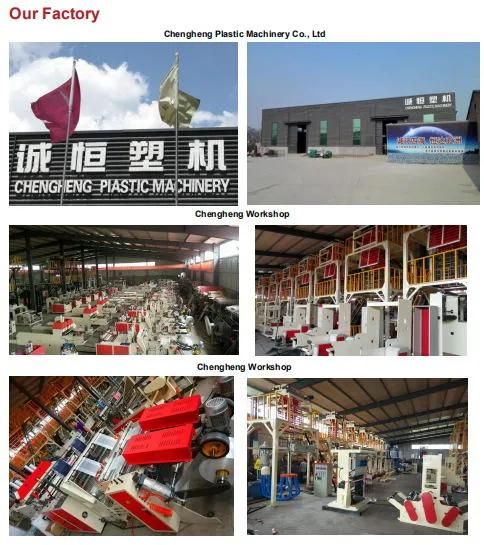

The factory is located in Ningjin Plastic industrial zone in North China, out of Shijiazhuang city, hebei province, about 2 hours driving south of Beijing airport.
