• Model NO.：CB-S800
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Blade Material：Cr12MOV,SKD-11,D2
• Rotating Blade Quantity：Different as Different Machine Model
• Fixed Blade Quantity：4PCS
• Rotating Speed：75-80rpm
• Rotating Diameter：260mm-550mm
• Motor Power：22kw-110kw
• Delivery Time：30 Days
• Guarantee Period：One Year
• Electrical Components：Siemens, ABB, Omron, etc.
• Standard Particle Size：Around 60mm (Customized)
• Transport Package：Plastic Film and Wooden Box
• Specification：Max model at CBS-1500
• Trademark：CONBOPLAS
• Origin：Zhangjiagang
• HS Code：84772090
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. CB-S800 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Blade Material Cr12MOV/SKD-11/D2 Rotating Blade Quantity Different as Different Machine Model Fixed Blade Quantity 4PCS Rotating Speed 75-80rpm Rotating Diameter 260mm-550mm Motor Power 22kw-110kw Delivery Time 30 Days Guarantee Period One Year Electrical Components Siemens, ABB, Omron, etc. Standard Particle Size Around 60mm (Customized) Transport Package Plastic Film and Wooden Box Specification Max model at CBS-1500 Trademark CONBOPLAS Origin Zhangjiagang HS Code 84772090 Production Capacity 30 Sets Per Month

Product Description

SINGLE SHAFT SHREDDER:

General Information:
The shredding machine is a general-purpose shredder developed and developed by our factory. It can effectively tear up most materials. Low energy consumption, high output, easy to move and so on. Users can choose different models according to the size of the material and the amount of processing required to achieve the purpose of "limited resources, unlimited recovery". This series of shredders can generally be used to shatter broken plastics, rubber, tires, nylon plastics, car bumpers, abandoned fishing nets, plastic pipes, fibers, paper, electrical components, cables, circuit boards, and wood.

Features:
1. Single shaft shredder has characters as follows: single shaft shredder properties as follows: strong, durable. It is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs. We can provide all kinds of feed hopper; low speed rotary cutter in accordance with customer needs, which will be low noisy and energy saving.
2. Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shapes quadrilateral knife block. The knife block has 4 blades, can be replacing the use of. The knife block along the axis of the base is in multiple rows into type V, and fixed with screws in the radical axis, rotated with the based shaft together, finally comprise a knife disc. The two-static knife is fixed on the machine frame. The material is sent to the cutter by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsive force is large and uniform. It is applicable to the recovery of a variety of bulk solid materials, refractory materials, irregular plastic containers and plastic barrels, tubes, films, fibers, paper etc. Spindle speed is 45 ~ 100 rpm/min.
3. We can offer a variety of rotor configurations to suit different applications. Such as:High Performance Rotor,Hard Material Rotor and Soft and Film Rotor.
4. When customers choose the rotor, we can also offer different knives holder to suit different requirement. Such as: Welded Knife holders,Assembled Knife holders and CNC cutting knife holders.

Machine models:

Model	CBS-600	CBS-700	CBS-800	CBS-1000	CBS-1200	CBS-1500
Motor power	22/30kw	37kw	45kw	55kw	75kw	90/110kw
Rotating blade quantity	26+4pcs	30+4pcs	36+6pcs	48+6pcs	58pcs	98pcs
Fixed blade quantity	4pcs	4pcs	4pcs	4pcs	4pcs	6pcs
Blade material	Cr12MoV/SKD-11/D2	Cr12MoV/SKD-11/D2	Cr12MoV/SKD-11/D2	Cr12MoV/SKD-11/D2	Cr12MoV/SKD-11/D2	Cr12MoV/SKD-11/D2
Rotating speed	75rpm	75rpm	75rpm	75rpm	80rpm	80rpm
Rotating diameter	260mm	280mm	400mm	400mm	400mm	550mm
Shredding room dimension	600*600mm	700*600mm	800*800mm	1000*1000mm	1200*1200mm	1500*1500mm
7.5kwHydraulic p1500ower	2.2kw	2.2kw	3kw	4kw	5.5kw	7.5kw
Cylinder movement length	600mm	600mm	800mm	1000mm	1200mm	1500mm
Overall dimension	1800*1600*1850	1830*1750*1850mm	2200*1780*2100mm	2500*1850*2300mm	3500*2000*2400mm	4800*2350*2400mm
Machine weight	2200kg	3000kg	3700kg	4500kg	7000kg	9200kg

REMARKS: THE INFORMATION ABOVE IS ONLY FOR YOUR INFORMATION; PLS CONTACT US FOR MORE DETAILS.

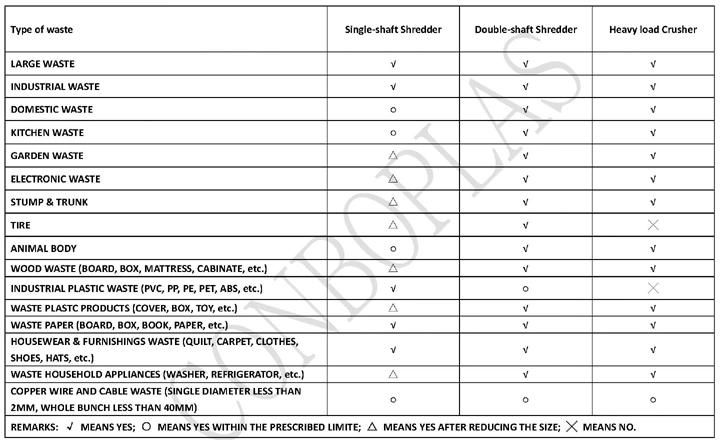

APPLICATION:

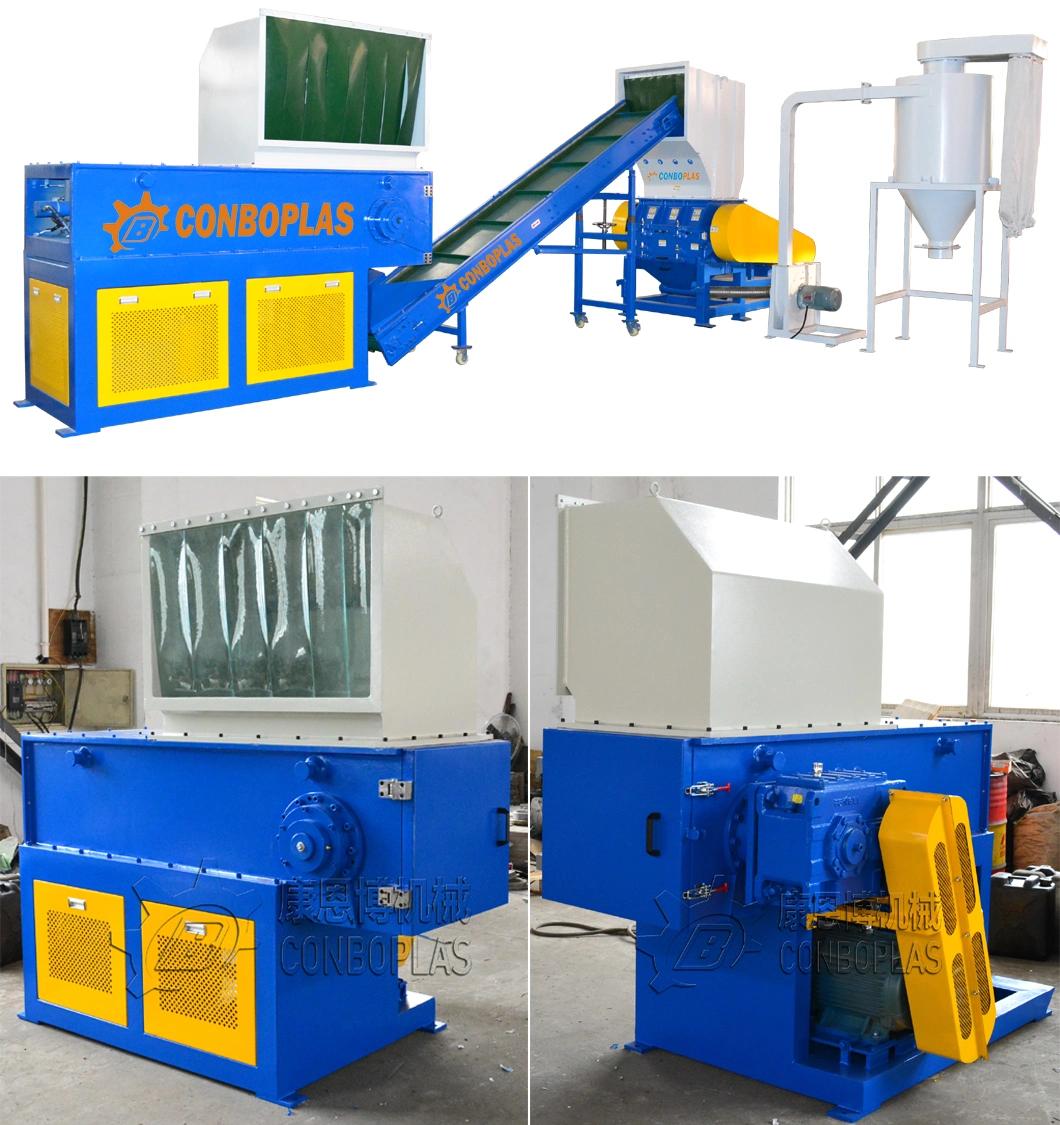

Machine models:



MORE MODELS FOR OPTION:
