• PVC Ceiling Production Line：Ceiling Machine
• PVC Ceiling：Profile Production Line
• Inverter：ABB
• PVC Profile：PVC Extrusion
• Ceiling Machine：Ceiling Production Line
• PVC Ceiling Extrusion Line：PVC Ceiling Production Line
• Transport Package：Wood
• Specification：sgs
• Trademark：middle tech
• Origin：Zhangjiagang City
• HS Code：84778020
• Production Capacity：300kg,Hr

Basic Info.

PVC Ceiling Production Line Ceiling Machine PVC Ceiling Profile Production Line Inverter ABB PVC Profile PVC Extrusion Ceiling Machine Ceiling Production Line PVC Ceiling Extrusion Line PVC Ceiling Production Line Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84778020 Production Capacity 300kg/Hr

Product Description

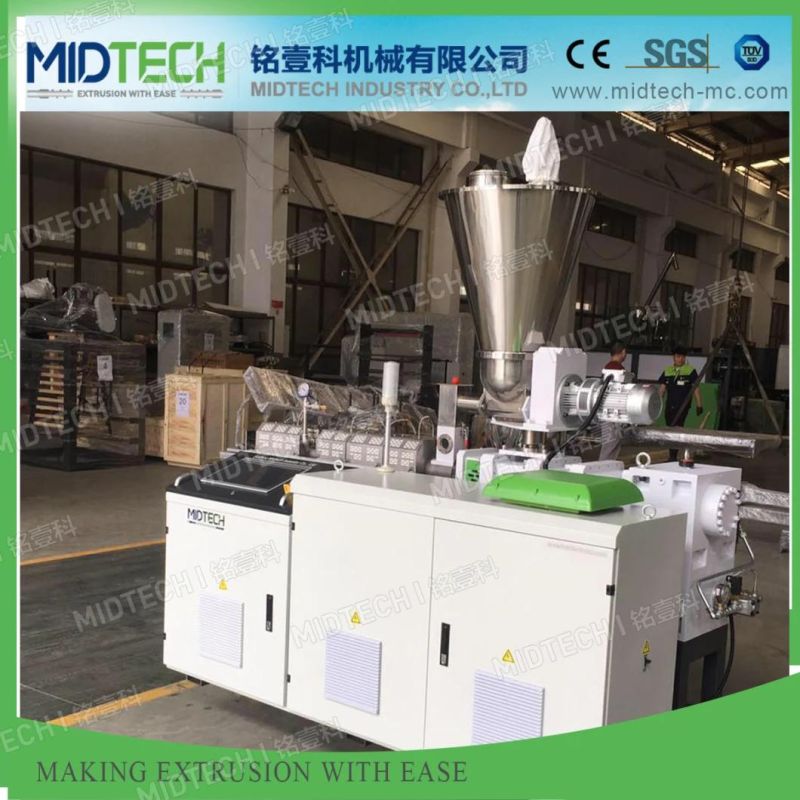

600mm pvc ceiling making machine /PVC ceiling panel extruder




Product Description
PVC ceiling profile panel application
Suitable for kitchen, toilet condole top decoration, light quality, the characteristic of moisture proof, heat insulation, nonflammable, no dust, easy to clean, can finish, easy to install, and low price

Consists list of  pvc ceiling panel extruder machine

Feeder	• To feed material into extruder;
Extruder	•World famous brand electrical component: Siemens,Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 3Cr13/3Cr17 material • Complete set include extrusion die head, calibrator and cooling tank • Adopt to single, co-extrusion, foam imitation marble profile
calibration table	• Include full set of vacuum and water pump • Width: 240mm • Length: 6000mm • Independent operation panel for easy operation
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter • Fast change type pads for easy operation • Install plate is adopts aluminum material
Cutter	• Lifting saw cutter with adopts double station dust collection system •Synchronous drivingby air cylinder or servo motor control
Stacker	• Stainless steel304 as touching material • Discharge driving by air cylinder
Hot stamping machine	• Decorative pattern and film protection of product surface


Auxiliary machines
 1-We normally equip with SHR200/500 mixer unit for total PVC ceiling board extrusion line
 2- Printer or hot stamping transfer machine
 3- we can recycle waste to make granules and reuse again,such as crusher and grinder for PVC ceiling board
Why choose us:

♦ Specified screw design and material application for high percentage CaCo3
♦ Speedy cooling forming die supports the production line with faster linear speed and higher efficiency;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.
♦ Ability to provide the customized plastic extrusion solutions.
♦ Turn-key solution provided include plant layout and design, formula, production support.
♦ Super extend sales guarantee for all our machines:18 months since the machine left supplier plant.
♦ Competitive price for all our machines to meet customer demand.
♦ World wide after services center: Hungary, Spain, Nigeria, UAE, Brasil, Peru......
