1000mm PVC Film Blowing Machine with Horizontal Oscillating Unit

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PVC Film Blowing Machine
  • Raw Material：PVC
  • Maximum Folding Width of Film：800mm
  • Screw Diameter：60mm*1
  • Automation：Automatic & Manual
  • Computerized：Computerized

Base Info

  • Model NO.：FMCI-1000
  • Machine Weight：4.5t
  • Certification：CE, ISO9001:2008
  • Fmc-1000：L*W*H: 5m * 3.5m * 3.9m
  • Voltage：380V 50Hz 3phase
  • Color：as Request
  • Max.Output：80kg,H
  • Warranty：1 Year
  • Film Width：1000mm
  • After-Sales Service：Engineers Available to Service
  • Power(W)：30kw
  • L/D：30:1
  • Weight：4500kg
  • Transport Package：Plastic Film for Container Shipment
  • Specification：single layer
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

PVCthickness0.02--0.10mfilm width400mm500mm600mm700mm1000mm1450mmscrew diameter Φ35mm Φ40mm Φ45mm Φ50mm Φ55mm Φ65mmL/D ratio28:1die diameter Φ40mm Φ50mm Φ60mm Φ70mm Φ80mm Φ120mmmain power11kw15kw15kw18.5kw22kw30kwmax output30kg/h40kg/h50kg/h60kg/h75kg/h95kg/hrewinder wayTorque motor winder
optional equipmentrotary die head / auto up and down


Pictures for reference:

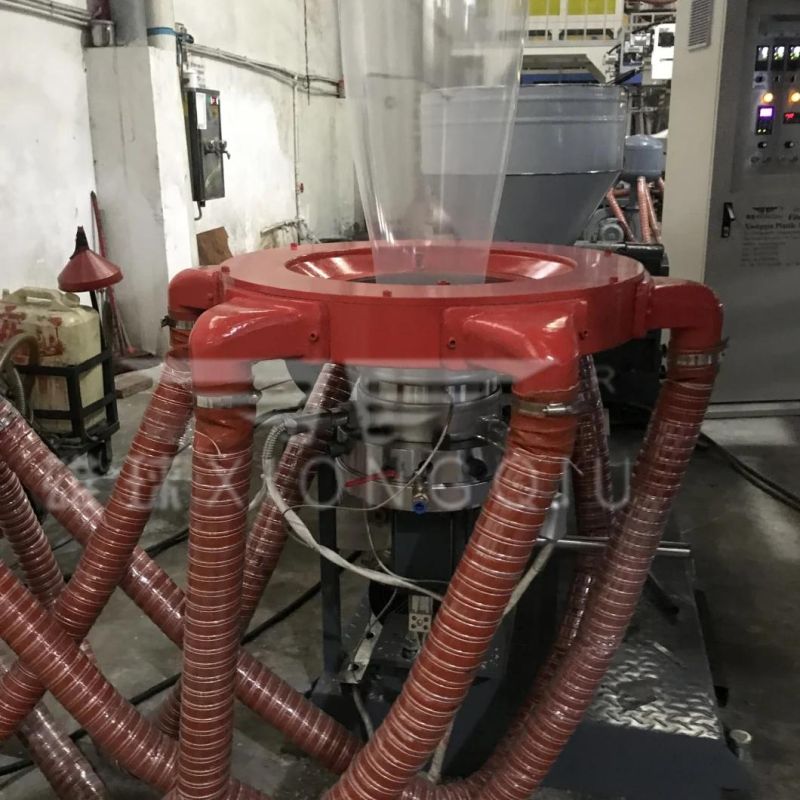

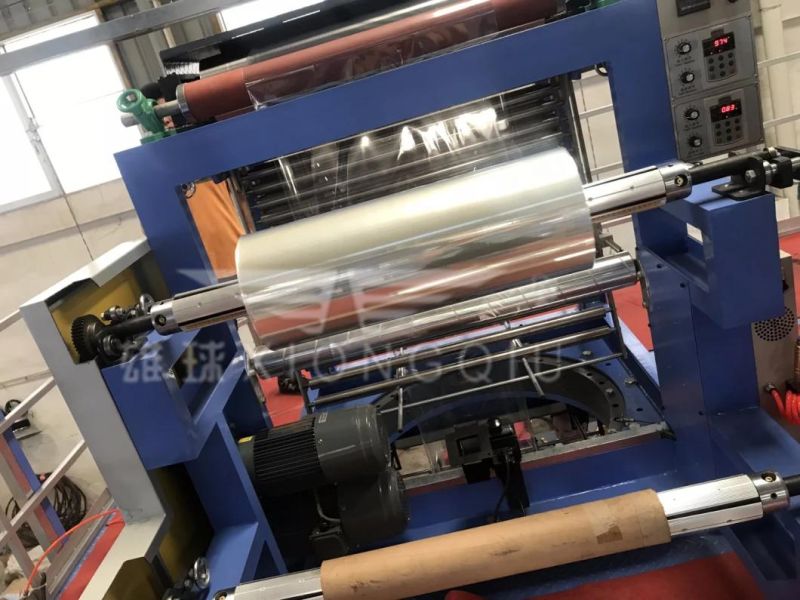

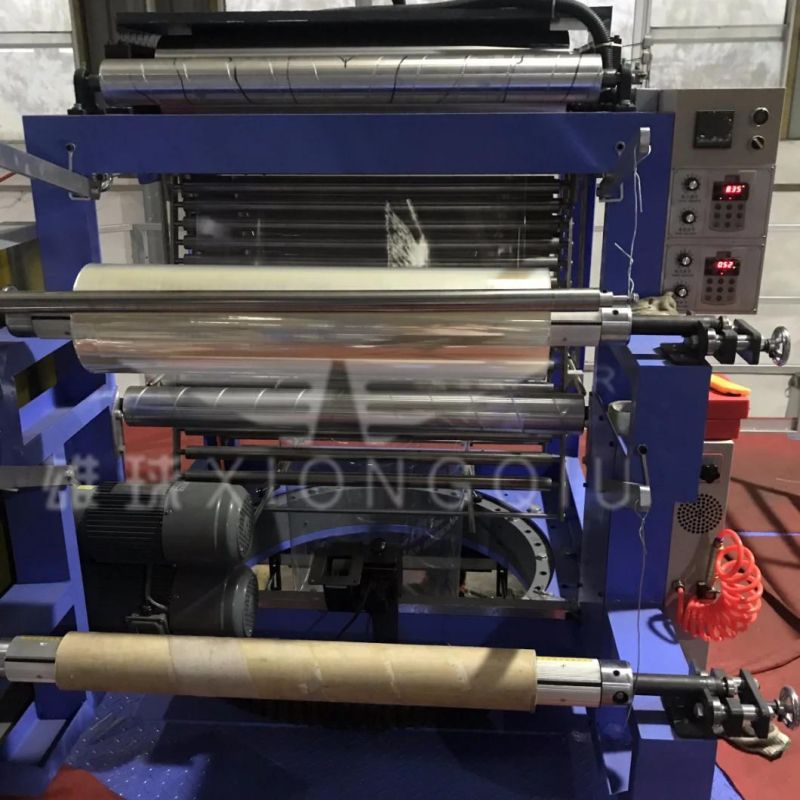

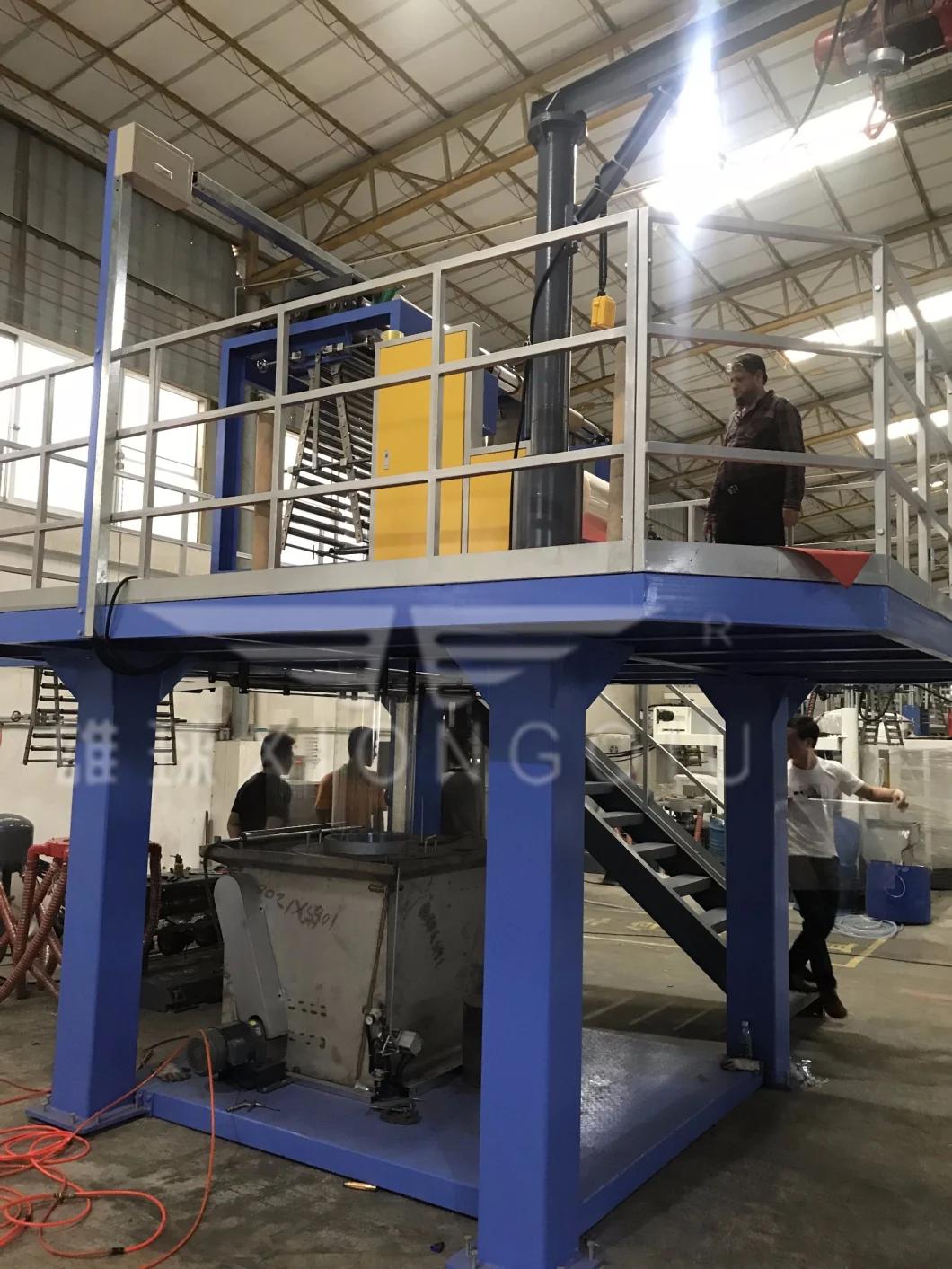

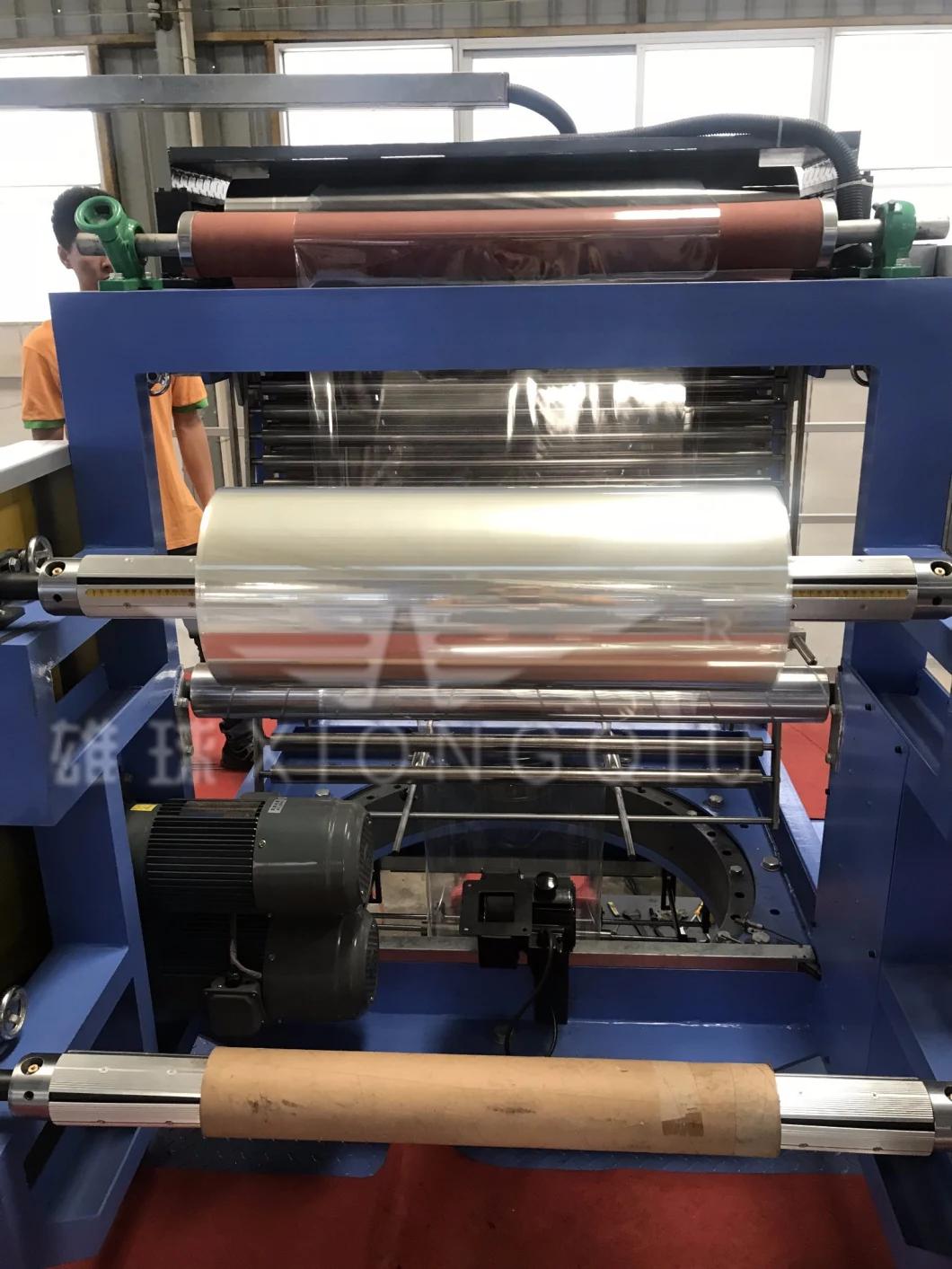

1000mm PVC Film Blowing Machine with Horizontal Oscillating Unit
1000mm PVC Film Blowing Machine with Horizontal Oscillating Unit
1000mm PVC Film Blowing Machine with Horizontal Oscillating Unit
1000mm PVC Film Blowing Machine with Horizontal Oscillating Unit
1000mm PVC Film Blowing Machine with Horizontal Oscillating Unit

1000mm PVC Film Blowing Machine with Horizontal Oscillating Unit
