ABA Three Layer PE Blowing Machine Agriculture Film Extruder Price

RUIAN YUNBANG MACHINE CO., LTD.
  • Warranty：One Year
  • Type：Multi-Layer Co-extrusion Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：3000mm
  • Screw Diameter：120mm
  • Automation：Automatic

Base Info

  • Model NO.：SJ
  • Computerized：Computerized
  • Machine Weight：8T
  • Certification：CE, ISO9001:2008
  • Die Head：1000mm
  • Output：450-500kg,H
  • Compressor：Including
  • Screw Material：Bimetal
  • Transport Package：Film Package or Wooden Case
  • Specification：SGS
  • Trademark：YUNBANG
  • Origin：China
  • HS Code：84773090
  • Production Capacity：5 Sets,Month

Description

LLDPE  , LDPE  , EVA
 Screw Diameter(mm)
 φ 45/φ 55/φ 45
 φ 50/φ 60/φ 50
 φ 60/φ 70/φ 60
 φ 75/φ 90/φ 75
 Screw L/D Ratio
 30.1
 30.1
 30.1
 30.1
 Screw Max. Rotation Speed (r/min)
 100
 100
 100
 100
 Extruding Driving Power(kw)
 18.5/30/18.5
 22/37/22
 30/45/30
 55/90/55
 Die Structure
 IBC Film Tube Inner Cooling System
 Air-ring Structure
 Double Vents Air Ring
 Reversing Haul-off System
 Horizontal± 180°
 Take-off Wide-up Speed (m/min)
 45-120
 Total Power(kw)
 150
 280
 280
 350
 Overall Dimensions(mm)
 According to actual machine

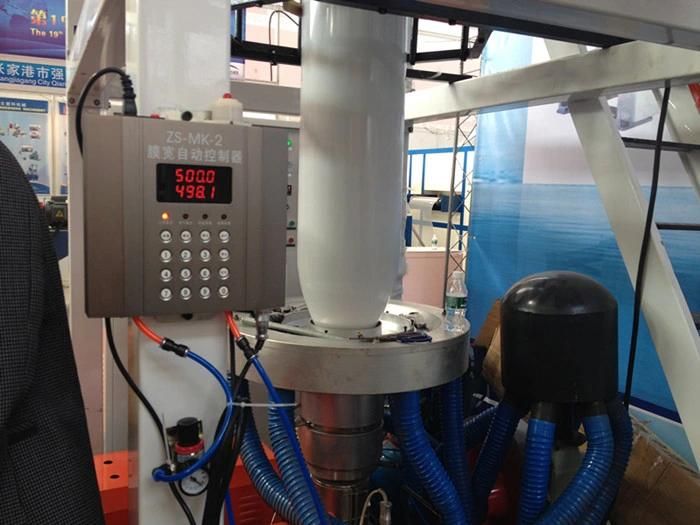

Die Head Part:

ABA Three Layer PE Blowing Machine Agriculture Film Extruder Price
Rewinding Part :Three to Five Layers Co-Extrusion Film Blowing Machine

ABA Three Layer PE Blowing Machine Agriculture Film Extruder Price



ABA Three Layer PE Blowing Machine Agriculture Film Extruder PriceABA Three Layer PE Blowing Machine Agriculture Film Extruder Price
ABA Three Layer PE Blowing Machine Agriculture Film Extruder Price
