• Model NO.：DM60
• Transport Package：Bare Packing
• Trademark：KINGSMAN
• Origin：China
• HS Code：8401200000
• Production Capacity：30 Sets,Year

Basic Info.

Model NO. DM60 Transport Package Bare Packing Trademark KINGSMAN Origin China HS Code 8401200000 Production Capacity 30 Sets/Year

Product Description

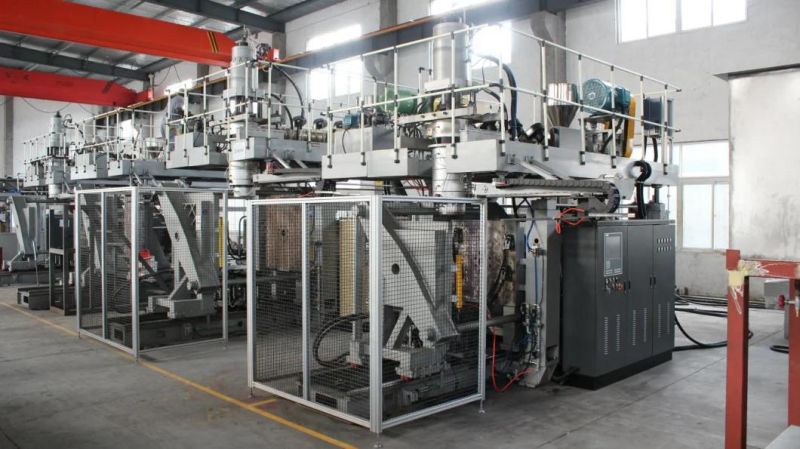

Technical Data for Blow Molding DM60
General Issues
  volume of product:  single cavity 60 L
  weight 12 .5 ton
  output :40 pcs/h

Clamping Unit
Principle: bi-direction synchronous clamping device with double axis
Linear roller guidance horizontal (HIWIN)
Clamping force: 250KN
Mold platens H x W: 900 x 900 mm
 Distance between the platens: 450-1250 mm
Clamping unit stroke:800 mm

Die Head
Type of die head: accumulator. With Ceramic heater
 Max. storage volume: 6.6L
100 point WDS system controller
Power of heating: 22 KW

 Extruder system
Screw diameter: 90/25D
Nitride treatment barrel and screw.
Plasticizing efficiency: 160-170 kg/h (HDPE)
AC motor drive: 37KW ( 6 Grade Motor---SIMENS Brand)
Cooling by 4 cooling fans.

Blow System(optional)
 Blow system mounted on linear guide under mold
 Height adjustment mechanism 250 mm
 Blow pin up/down stroke: 150 mm, controlled by hydraulic cylinder.
 Parison close
 Mechanical adjustment for left and right

Take out system
Take out stroke 1000mm
 Adopt Linear Guide and Synchronous belt transmission of motor to advance and retreat
Gripper with the function :auto cooling water

Servo Hydraulic System
Servo system REXROTH Servo Pump (80L)+ Servo Motor  (15KW)  Or DAIKIN brand
Hydraulic valves: YUKEN
Oil Temperature sensor showing the screen
Motor power: 15 KW
Servo valve:REXROTH

Pneumatic System
Pneumatic cylinders AIRTEC
Pneumatic valves : AIRTC
Max. pressure of gauge: 8 bar
Air consumptions: 2.2 m³/min

Control System
Control System: B&R
Servo WDS control system: B&R 100 points
Total rated power: 90 KW
 Average energy consumption: 35 KW
Main components (Air switch, Contactor): SCHNEIDER  ; intermediate relay: SCHNEIDER
Invertor of extuder motor : DELTA or other brand
