• Model NO.：LSJ120,33
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Name：Pet Sheet,Plates Extruder Machine
• Sheet Width：600-1000mm
• Sheet Thickness：0.2-2mm
• Sheet Application：Thermoforming for Plastic Cups and Trays
• Extruder Model：High Efficiency Single Screw Extruder 90,33
• Max Capacity：300kg,H
• Die Head：T-Type Die Head, Jc-Times Brand
• Three Roller Calendars：Alloy Steel Material ,Chromed
• Guaranteed Time：12 Months
• Transport Package：Wooden Case or Other Moistureproof Packages
• Specification：LSJ120,33
• Trademark：Leader Machinery
• Origin：Qingdao of China
• HS Code：84772090
• Production Capacity：30 Sets,Year

PAR T1  THIS LINE CONSISTS OF (COMPULSORY)1Automatic vacuum feeding machine1 set2High efficiency single screw extruder 120/331 set3Hydraulic exchanging unit1 set4Melting gear pump1 set5T-type /hanger type die head (JC-Times brand)1 set6Three Roller Calendars (alloy steel material )1 set7Rollers thermoforming machine1 set8Cooling frame and edge cutting unit1 set9Haul off machine1 set10Plastic cutting machine-guillotine1 set11Twin position sheet winder1 set12Stacker1 set13Electrical cabinet (ABB,Omron, RKC,Siemens etc) 14Spare parts1 set PART 2  ACCESSORY MACHINE PARTS (OPTIONAL)1Air compressor1 set2Industrial water chiller1 set PART 3 SHEET SPECIFICATIONS1Sheet width600-1800mm2Sheet thickness0.2-2mm3TypePET single layer/mono layer sheets4Raw material1. Can be virgin plastic pet material
2. Can be recyclable material, like PET Bottle Flakes PART 4 SHEET APPLICATIONS1Packing, printing, stationery, art works etc.2Main Products: Gift/ad/file bag/lamp cover/food packaging PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES1Payment terms40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable2Delivery time70 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

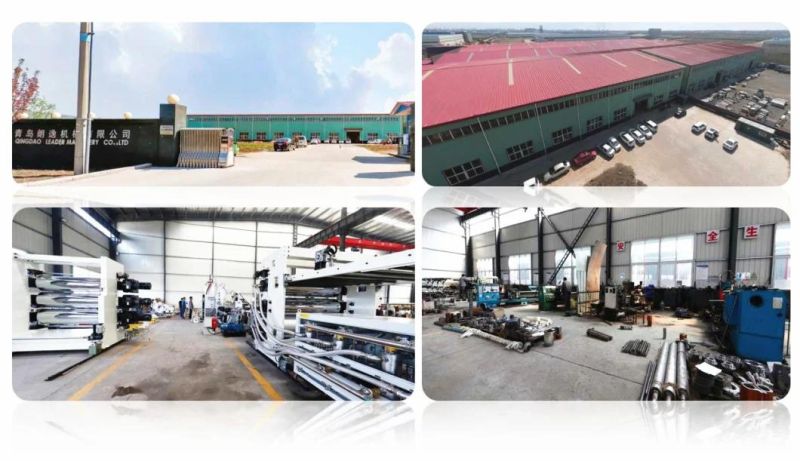

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:

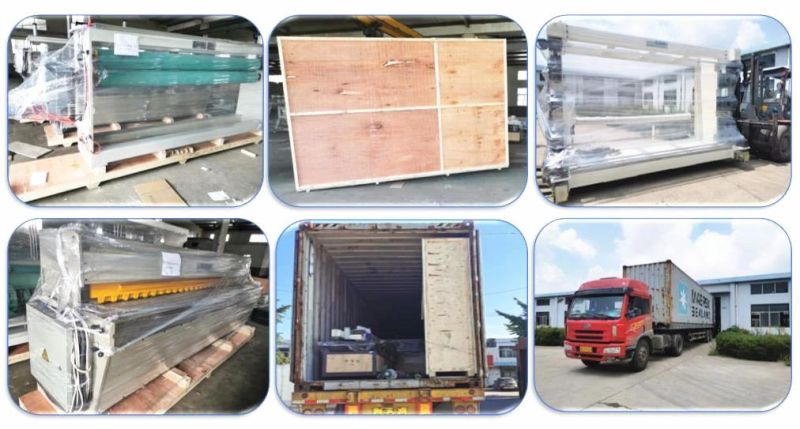

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

PART 8 COMPANY OVERSEA SHOWS

OUR COOPERATED SUPPLIER LIST
