1200mm PP Single Layer Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：PP Film Blowing Machine
  • Raw Material：PP
  • Maximum Folding Width of Film：1100mm
  • Screw Diameter：85mm
  • Automation：Non-Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：FMP-1200
  • Machine Weight：6t
  • Certification：CE, ISO9001:2008
  • Size：L*W*H: 6m * 3m * 4m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Warp Film for Container Shipment
  • Specification：single layer
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477800000

Description

PP / PPEthickness0.02--0.20mmfilm width(mm)60--400100--650150--700250--900300--1000max output40kgs/hr55kgs/hr70kgs/hr90kgs/hr120kgs/hr Extruder30:1temp. controller4 zone4 zone5 zone5 zone6 zonebarrel cooling120w*2120w*2120w*2250w*3250w*3driving motor11kw15kw18.5kw30kw45kw Die headSpiral mandrel die chrome plated surface 40Crcooling fan550w950w1.1kw1.5kw2.2kwTake up unit partauto-loader device, film surface treater, air compressor, rotary die head,automatic winder

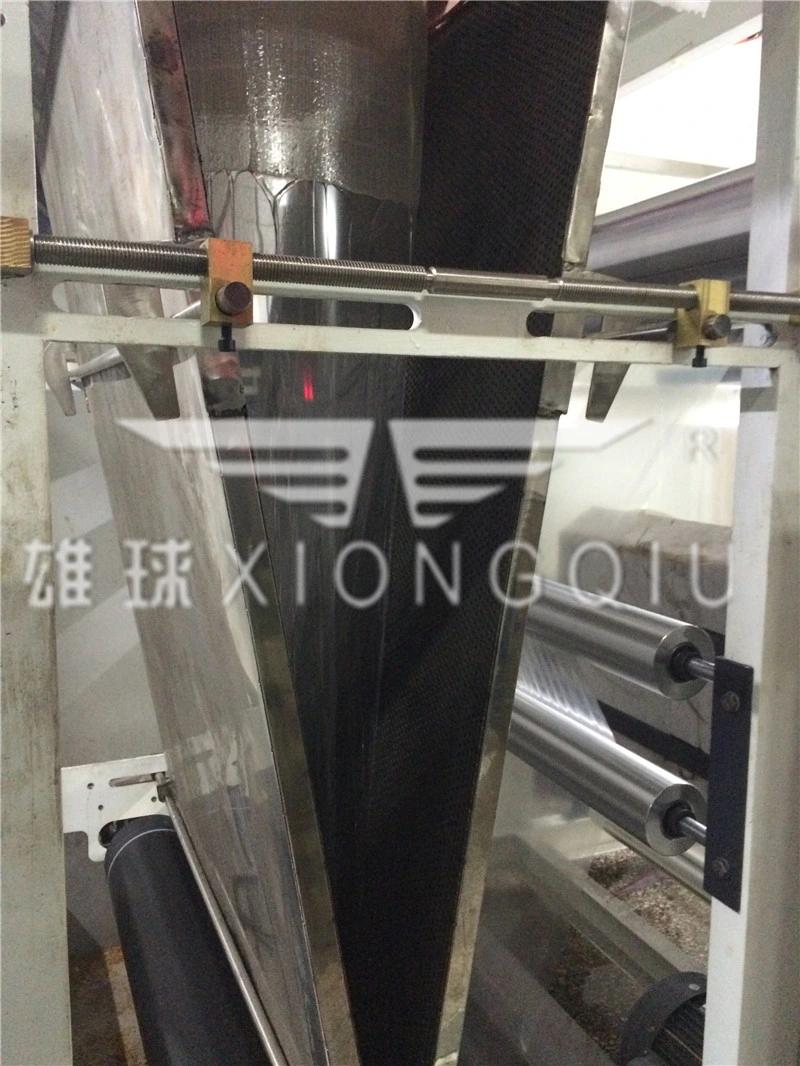

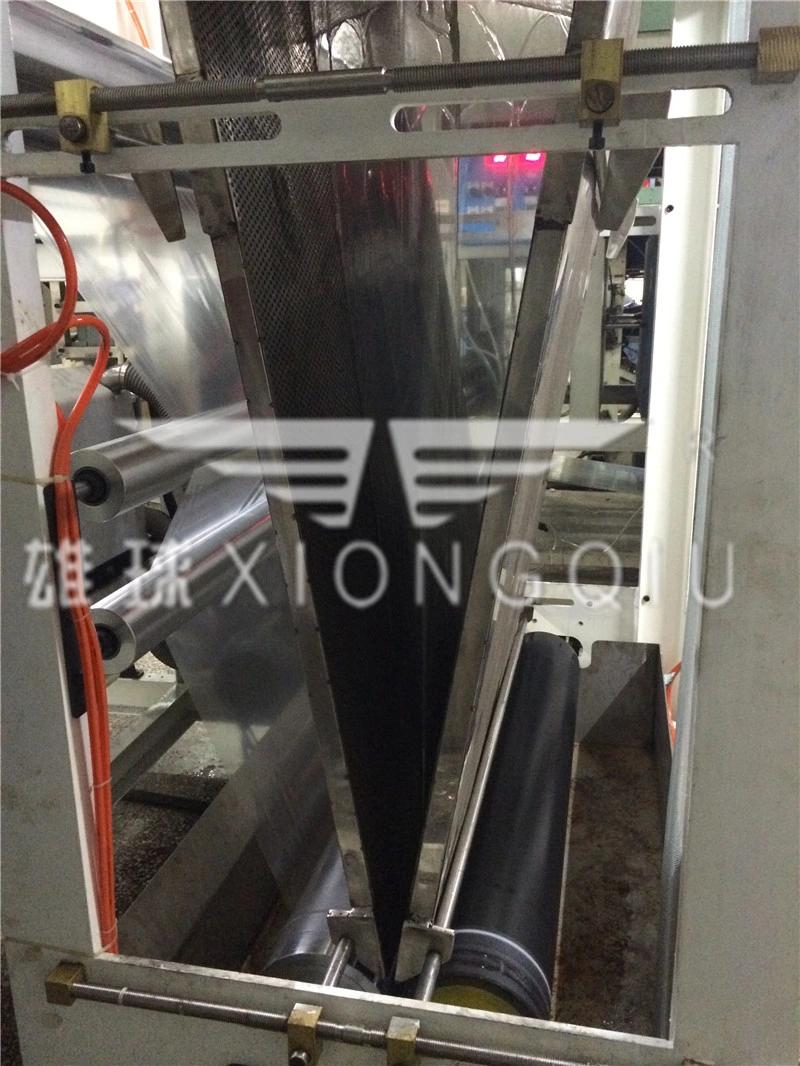

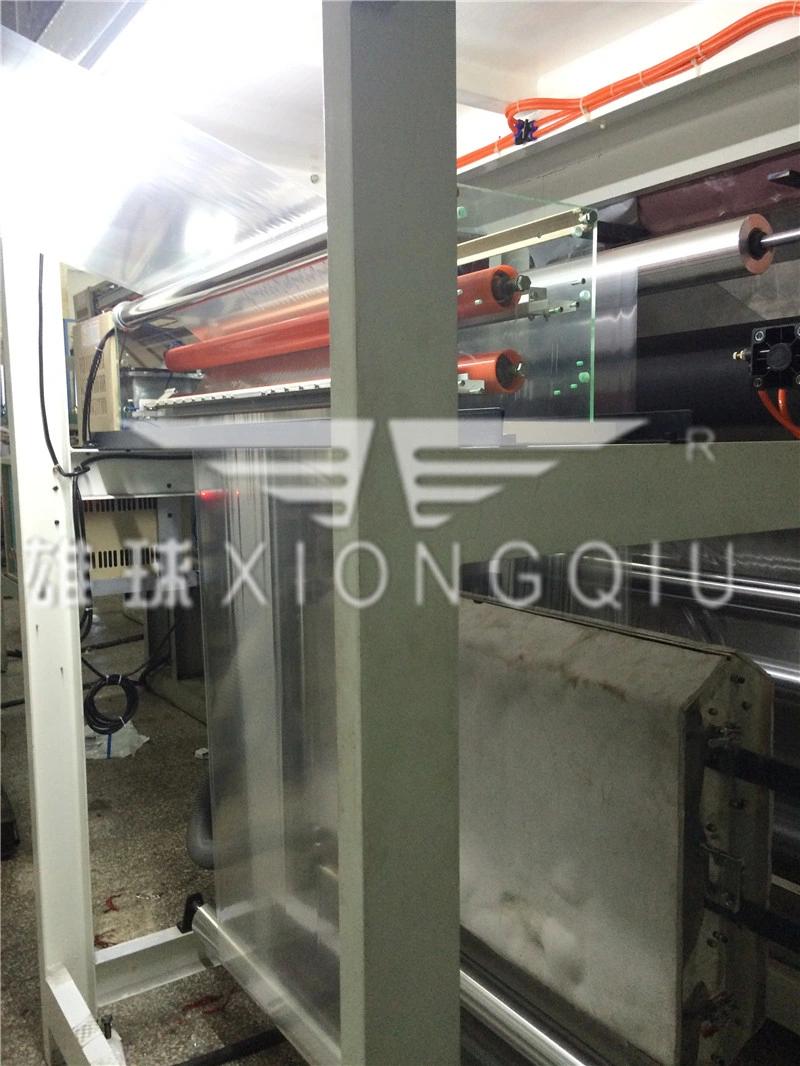

pictures for reference:
1200mm PP Single Layer Film Blowing Machine
1200mm PP Single Layer Film Blowing Machine
1200mm PP Single Layer Film Blowing Machine
1200mm PP Single Layer Film Blowing Machine
