• Model NO.：HSD
• Customized：Customized
• Condition：New
• Sheet Width：300-7000mm
• Thickness：0.2-45mm
• Color：by Buyer′s Request
• Extrusion System：Mono-Layer or Multi-Layer
• Raw Material：ABS,PE, PP, PS, Pet,PC, PMMA
• Transport Package：Wooden Cases and Pallets
• Specification：CE, ISO9001: 2008, SGS
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：20 Sets

Basic Info.

Model NO. HSD Customized Customized Condition New Sheet Width 300-7000mm Thickness 0.2-45mm Color by Buyer′s Request Extrusion System Mono-Layer or Multi-Layer Raw Material ABS/PE/ PP/ PS/ Pet/PC/ PMMA Transport Package Wooden Cases and Pallets Specification CE, ISO9001: 2008, SGS Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 20 Sets

Product Description

PE Sheets / Boards/ Plates Extrusion Line




This PP/PE/PVC sheet extrusion line can be applied to produce PVC, PE, HDPE PP, PC, ABS, PS, HIPS single-layer and multi-layer sheet (board) with thickness of 0.1mm to 30mm and width of upto 3000mm. The pvc, pe, pp sheet/board are widely used in the field of environmental-protection, chemical industry, anti-corrosion, advertisement, architecture, heat preservation, etc.

Composition of PVC/PE/PP sheet extrusion machine

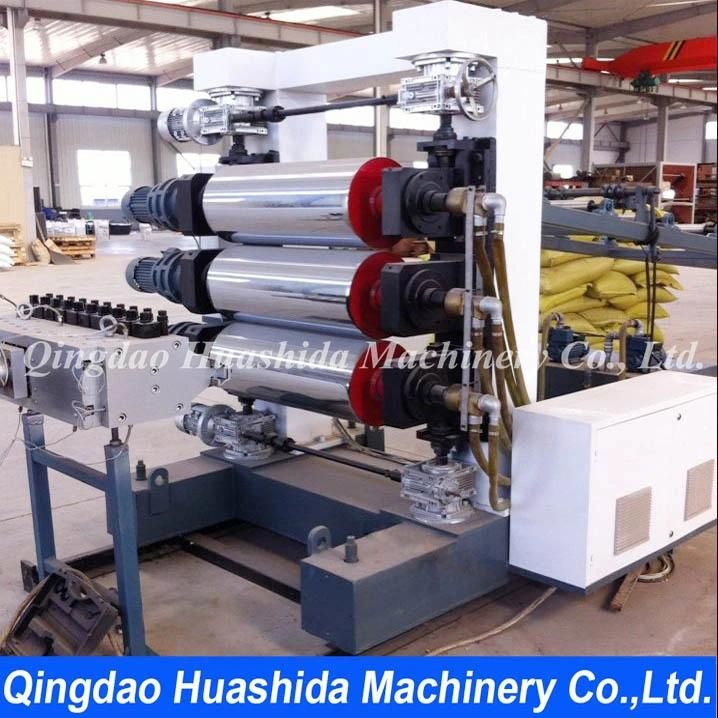

The machinery unit consists of extruder, Screen changing device, melt pump, T-die, 3-roller or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.
Others,

Features of the machinery unit: High grade alloy structural steel ( 38CRMOALA) made material barrel& screw and mould, after nitriding treatment. It gets high hardness, corruption and long service life. Choice T-die the flowing passage is designed for easy flowing without any detaining, and the product thickness is even,

The calendar can freely rise and fall. Unattached roll temperature controlling system can precisely control the temperature of the roll.
The cutting machine is equipped with PLC control system which helps to set length and provide accurate automatic cutting.


Application of PVC,PP,PE sheet/board:
Architecture, indoor and outdoor
Furniture, kitchen & bathroom cabinet
Advertising Signs, billboards, displays, exhibition stands
Interior scaleboard for boat & ship, vehicle, train
Screen printing, laser engraving
Thermoformed parts
Walls & partitions, wall cladding
Ceiling boards



(Modle)	(width)	Thickness(MM)	Seedtm/min)	Outputr(kg/h)
SBJZ-800	650	0.18-1.5	1-25	80-320
SBJZ -1000	800	0.2-2.0	1-20	150-430
SBJZ -1500	1350	1-10	0.5-10	150-450
SBJZ -2000	1850	2-15	0.5-8	300-550
SBJZ -2200	2000	1-10	0.4-3	420-820
SBJZ -3000	2850	2-8	0.2-3	500-1200
SBJZ -7000	6800	2-6	0.2-2	600-1560
