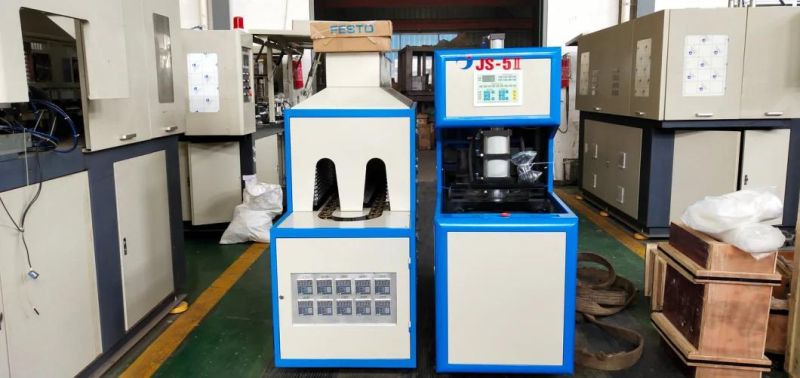

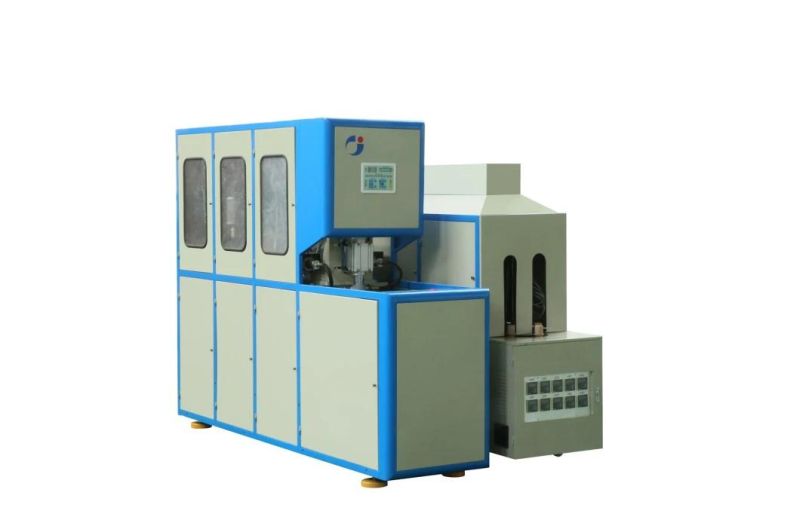

Semi Automatic 5L Semi Automatic Bottle Blowing Machine with CE
Taizhou Jiansheng Machine Co., Ltd.- Type:Stretch Blow Molding Machine
- Automatic Grade:Automatic
- Number of Cavity:1
- Clamping Force:80kn
- Mould Opening Stroke:230mm
- Stretch Stroke:350mm
Base Info
- Model NO.:JS-5II
- Max. Bottle Volume:5L
- Max. Bottle Neck Size:120mm
- Max.Bottle Height:350mm
- Max. Bottle Diameter:180mm
- Machine Size:2.0*0.65*1.8m
- Infrared Diamension:1.7*0.6*1.5m
- Raw Material:Pet
- Making Method of Parison:Stretch Blow
- Automation:Non-Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
- Transport Package:Wooden Case
- Specification:SGS, CE
- Trademark:JIANSHENG
- Origin:Made in China
- HS Code:84773090
- Production Capacity:850PCS
Description

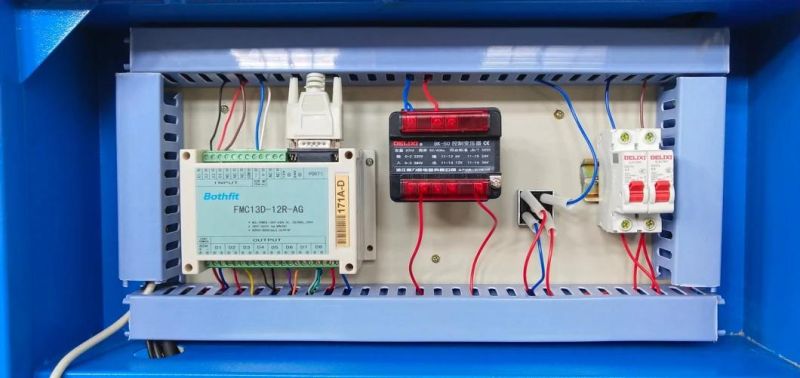

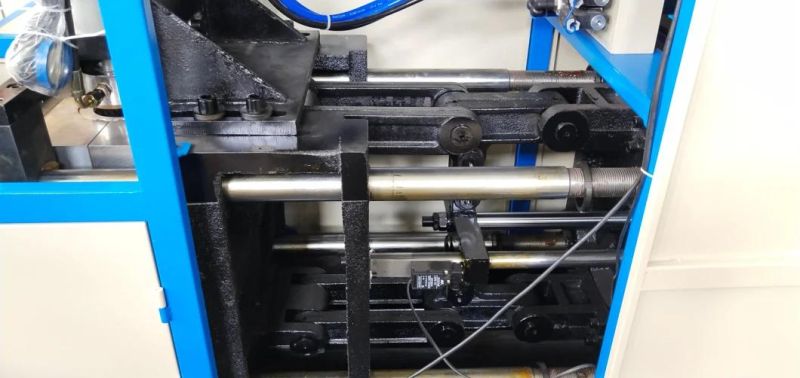

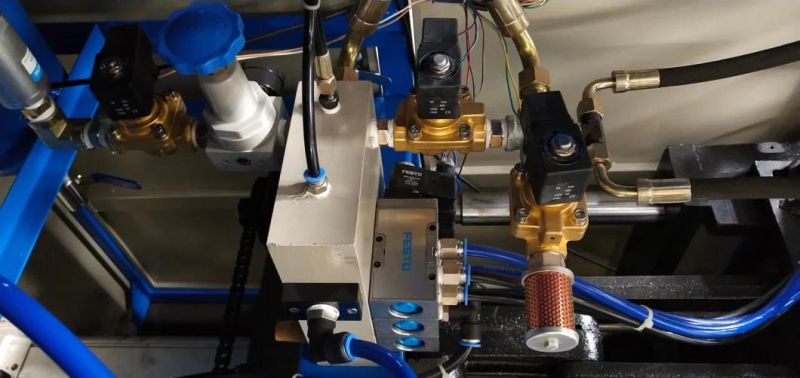

Semi-Automatic Blowing Machine JS-5II ( 2 cavity )blow moulding shaping machine can produce PET containers, including bottles for wine, drink, soybean, vinegar, and pesticide (less than 5 liters) according to the different bottle shapes and diameters. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, the machine has no noise It is easy to maintain It's the equipment for producing PET bottles. Mold gathering strength (kN) 90 Mold traveling distance (mm) 235 Pulling rising traveling distance (mm) 450 Bottle spacing 140-180 Mold hole number (cavity) 2 Max. Bottle capacity (L) 5 Max. Tooth part size (mm) 120 Max. Bottle diameter (mm) 180 Max. Bottle body height (mm) 450 Theoretic production capacity (bph) 400-800 Total power consumption (kW) 14 Thermal rating (kW) 12.8 Operating pressure (kg/cm2) 8 Low pressure gas consumption (L/min) 300 Bottle blowing pressure (kg/cm2) 25 High-pressured gas consumption (L/min) 350 Machine size (m) 2 x 0.65 x 1.75 Machine weight (MT) 0.71 Internal details of the Machine
