• Model NO.：CHSJ-TC
• Machine Weight：4T

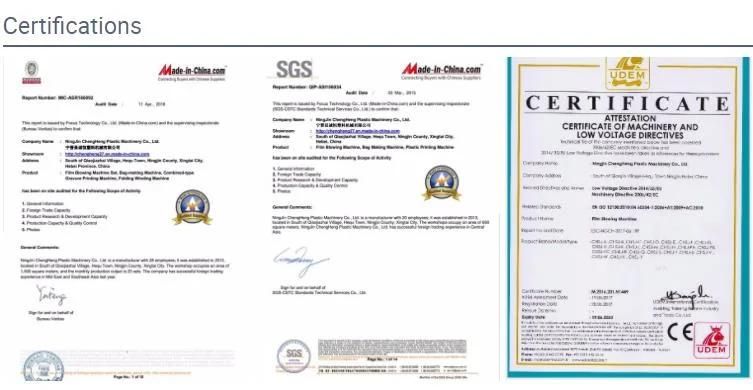

• Certification：CE, ISO9001:2008
• Film Width：200-1000
• Film Thickness(mm)：0.006-0.04mm
• Extrusion Capacity Kg/H：50-75kg
• L/D Ratio of Screw：30:1
• Transport Package：Wooden-Box,Nude
• Specification：SGS
• Trademark：Chengheng
• Origin：China
• HS Code：8477309000
• Production Capacity：50sets,Year

ModelE-40/700   E-45/900    E-50/1200 Width of the film200-420mm  250-600mm  300-1000mmThickness of the film0.006-0.04mmThe max output50kg/h   55kg/h   75kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialHDPE/LDPE/LLDPEPower consumption10kw/h   15kw/h  20kw/h  30kw/h Weight2500kg   2800kg  3500kgOverall dimension(L*W*H)m5*2.1*4.3  5*2.2*3.5    6.5*3.2*5.2 Extruder unitDiameter of screwΦ40×2  Φ45×2   Φ50×2
38CrMoALA  wearproof Alloy steel,five years guaranteeL/D ratio of screw30:1Rotation speed of screw10-120r/mBarrel FanZone 3 barrels install over-temperature fanGear box146#×2  173#×2  200#×2
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation systemMain motor  15kw  30kw 37kw
100% Original three-phase variable frequency motor  Equipped with inverter controlDie head unitDie diameter
   60mm  80mm   100mm
With 40Cr steel forging finishing, eight feed trough runner,Uniform flow channel,blown plasticizing effectCool unitAir ring type
 LDPE double vents vacuum air ring
 HDPE Single outlet air ringAir ring materialHigh quality Taiwan cast aluminum alloy air ringBellow power
 1.5kw  4kw   2.2kw
Shanghai production of high-pressure mute fanTraction unitWidth of take up roller700mm  900mm   1200mm    Traction roller material
  silicone roll
NBR rollerTake up motor1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter controlTake up speed100m/minEmbossing rollerhot embossing unit
cold embossing unit Lambdoidal boardWooden flannel wrappedGusset equipmentModular rack type
Independent Split  Bubble stabilizing ringElectric aluminum roller guide
Manual wood floor Guide rollerAluminum guide roller (HV300-HV700) surface treatmentWinding unitWinding typeSurface friction rewinding, manually change the volumeDrive typeTorque motor equipped RV reducerFilm expanding rollerSmoothing rollElectric control cabinetlow-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control tableComputer control type7-inch touch screen + process control system
Automatic air supply device Service

Our Advantage:
1.      First-class and professional service team offer one-stop intimate service. 18 senior technical experts, more than 20 after sales service staff.
2.     No charge for training the technician, let you have nothing to worry about!
3.     Five year after-sales service and mechanical parts lifetime warranty.
4.     Life-long free for offering all kinds of technical service and 24 hours after service.(no worry about the time differences)

Order step

    step1. Please let us know which product you like. the model and size, the offers will be sent to you within 24 hours.
     step2.  We make proforma invoice (PI) for you.
     step3. Please check and confirm the PI
     step4. Once we confirmed the order, please pay it soon.
     step5. After payment, all goods will be sent to you in the delivery time.
