High-Speed PE Film Extruder with Rotary Die Head

Ruian Chuangli Machinery Factory
  • After-sales Service：Yes
  • Warranty：Yes
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：1200mm
  • Screw Diameter：65mm

Base Info

  • Model NO.：SJ-65
  • Automation：Automatic
  • Computerized：Non-Computerized
  • Machine Weight：3.5t
  • Certification：CE, ISO9001:2008
  • 6600mm*3500mm*5200mm：Capacity: 100kg,H
  • Transport Package：in Wooden Box
  • Specification：CE
  • Trademark：Chuangli
  • Origin：Ruian, China
  • HS Code：8477209000
  • Production Capacity：30sets,Month

Description

Basic Info.

Model NO. SJ-65 Automation Automatic Computerized Non-Computerized Machine Weight 3.5t Certification CE, ISO9001:2008 6600mm*3500mm*5200mm Capacity: 100kg/H Transport Package in Wooden Box Specification CE Trademark Chuangli Origin Ruian, China HS Code 8477209000 Production Capacity 30sets/Month

Product Description

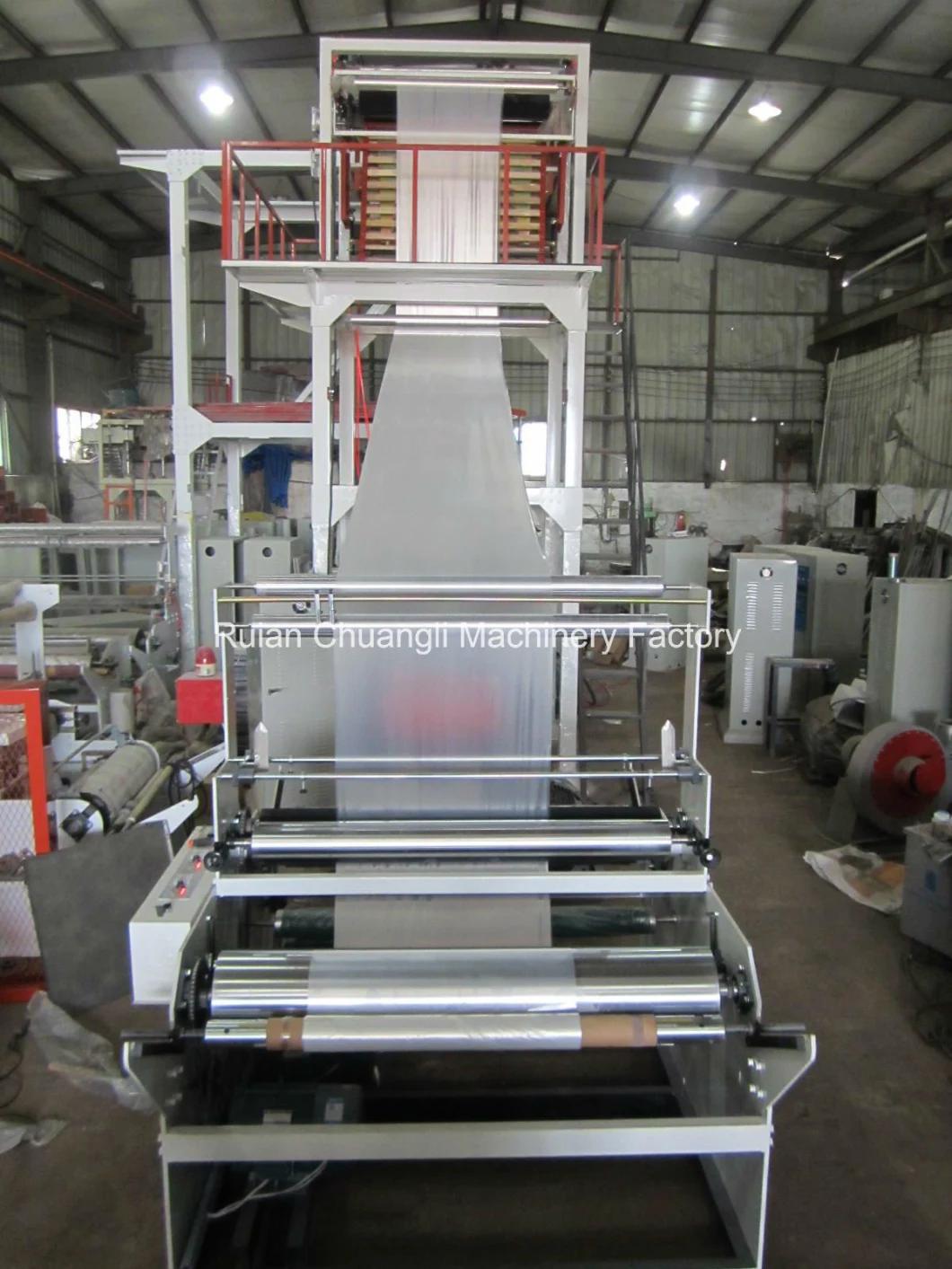

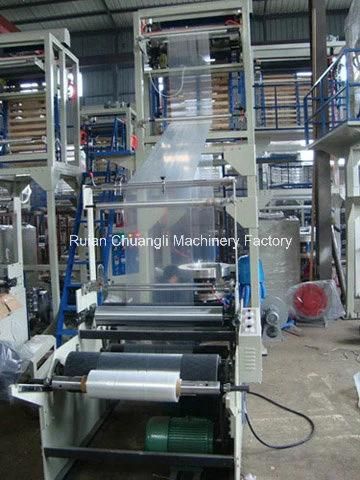

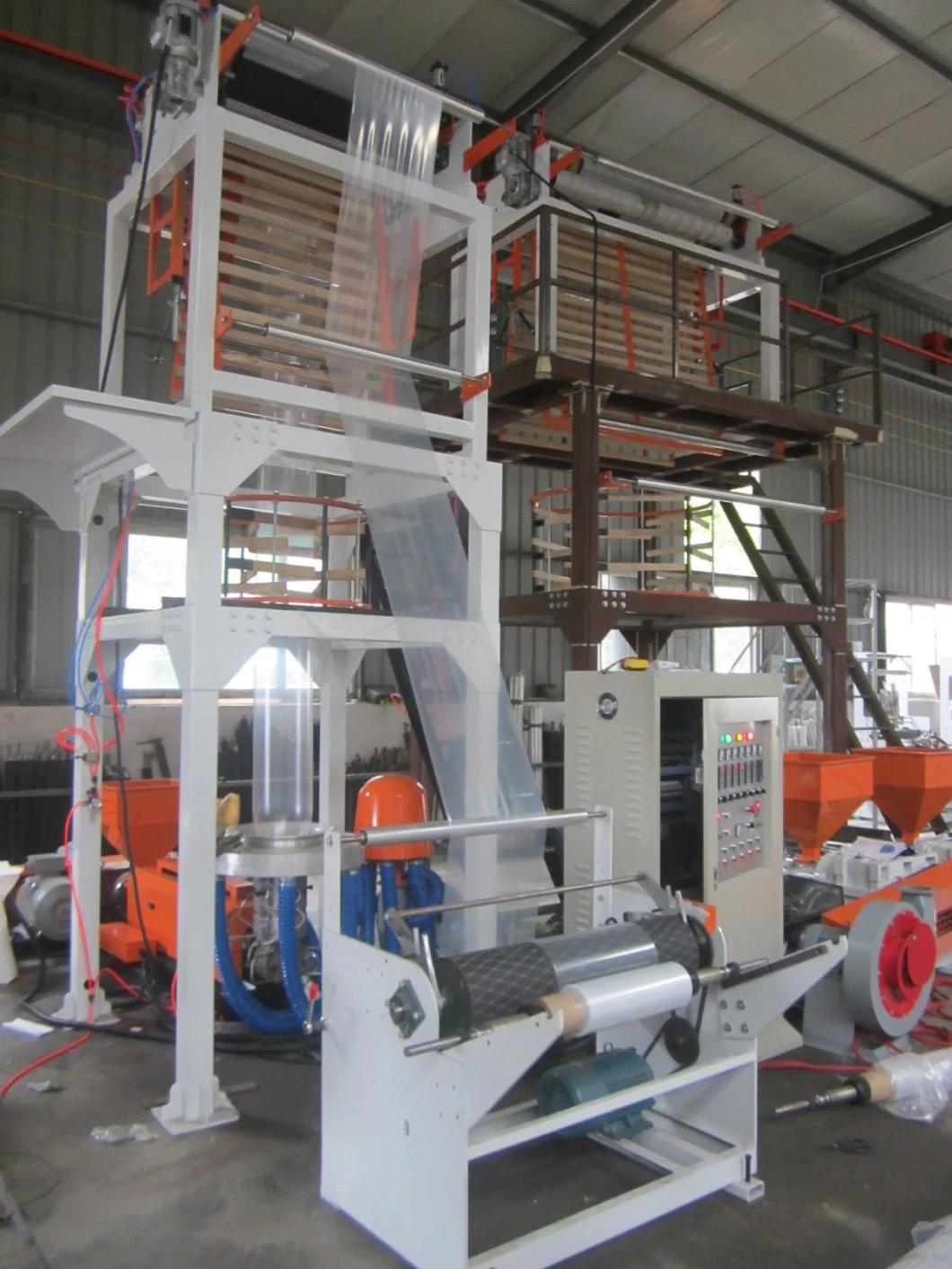

High-Speed PE Film Extruder with Rotary Die Head is used to produce HDPE/LDPE film with high speed.
Main technical parameters:

ModelSJ-H50SJ-H55SJ-H65
Screw Diameter50mm55mm65mm
Screw Ratio(L/D)30:130:132:1
Screw Speed10-100r/min10-100r/min10-100r/min

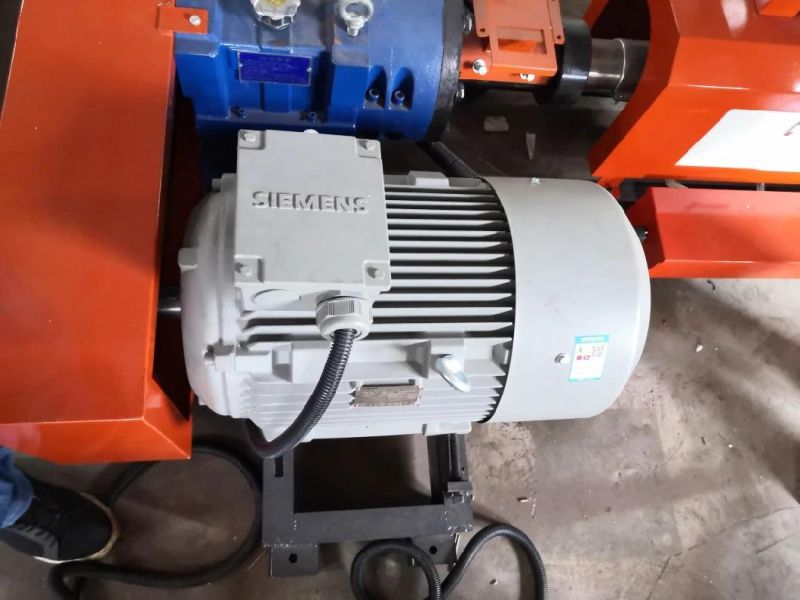

Power of Main Motor18.5Kw30Kw37Kw
Main Output60kg/h80kg/h100kg/h
Max. Folding Width of Film600mm800mm1200mm
Single-sided Thickness of Film0.01-0.10mm0.01-0.10mm0.01-0.10mm
Total Power38Kw45Kw52Kw
Weight of Machine2.3T2.8T3.5T
Overall Dimensions5200*2100*4500mm5500*2500*5000mm6200*3200*5500mm
