• Model NO.：sjsz80,156
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• PVC Foam Board Extrusion Line：PVC Board Production Line
• Thickness of The Board: 3mm to 20mm：Size:1220X2440mm
• Orgin: China：Made in China
• CE ISO9001 TUV：T,T
• Transport Package：on The Demand
• Specification：according to the custom′s required
• Trademark：Sanyi
• Origin：China
• HS Code：847780000
• Production Capacity：500kg,H

Basic Info.

Model NO. sjsz80/156 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized PVC Foam Board Extrusion Line PVC Board Production Line Thickness of The Board: 3mm to 20mm Size:1220X2440mm Orgin: China Made in China CE ISO9001 TUV T/T Transport Package on The Demand Specification according to the custom′s required Trademark Sanyi Origin China HS Code 847780000 Production Capacity 500kg/H

Product Description

                                    plastic foaming board making machinery/ plastic sheet extrusion line


       The application of PVC Foam Board

        Architecture: Such as building wall board, decoration board, housing, office, public building interlayer, commercial decoration shelf, non-dust room board, ceiling plate, etc.

          Advertisement: Such as screen printing, computer lettering, ad board, etc.

Industry: Cabinet board, chemical industry antisepticizing project, thermoforming for refrigerator, for temperature keeping for environment protection, etc.

          Transportation: Such as steamship, aeroplane, carriage, train compartment, roof shed, case core layer, inner upholster, etc.

          Our company can design and manufacture products with different specs for clients.

The features: We have set up one special forging team to design, develop-produce-distribute-debug-repair for our clienteles.

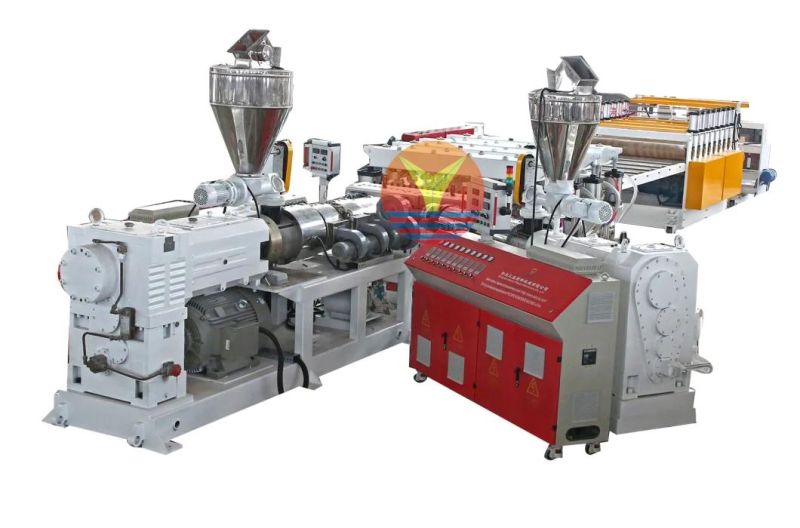

Main technical parameters of PVC foam board machine

Machine Type: SY80/156-1400

Product Width: 1220mm 1560mm 2050mm
Product Thickness: 2-30mm
Extruder Specification: 80/156
Max. Extrusion Volume: 350-400kg/h
Main Motor Power: 75kw

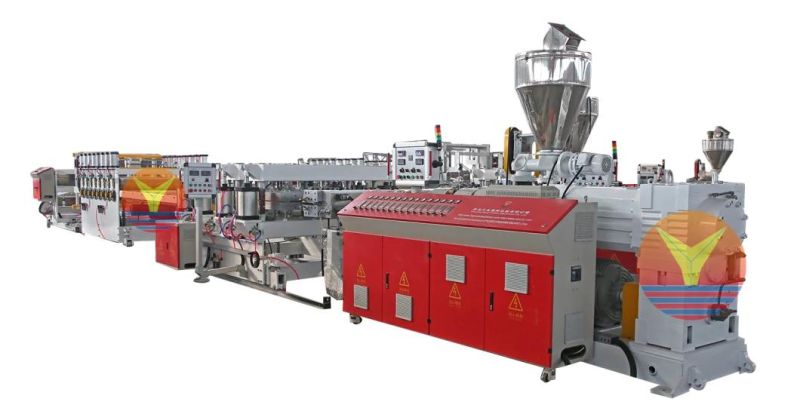

Main equipment of wpc furniture board machinery

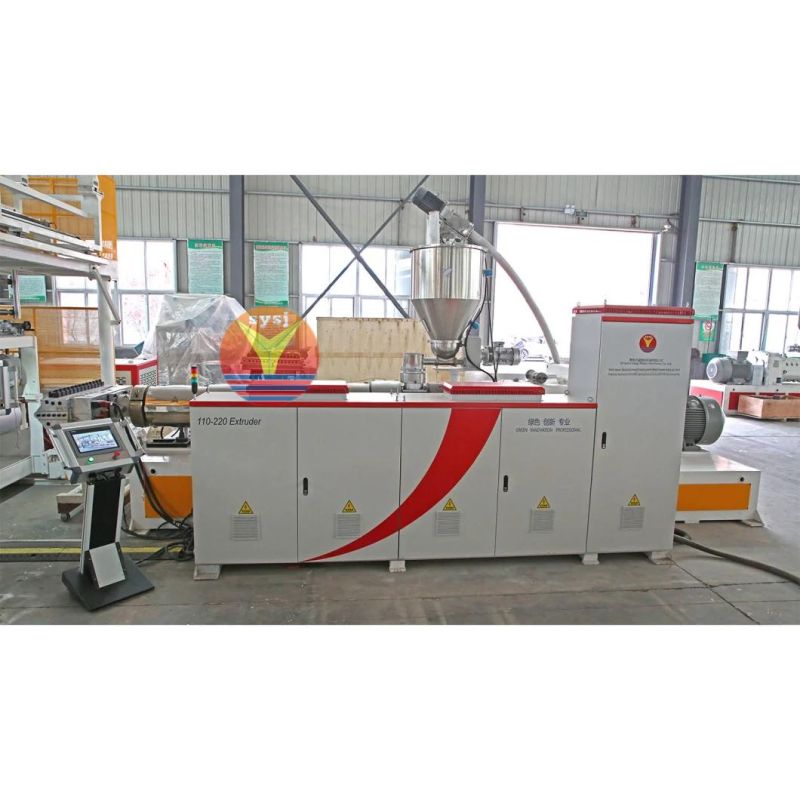

1. SJSZ 80/156 Conical twin Screw Extruder
2. Calibration unit
3. Cooling tank and bracket
Length: 6000mm
4. Haul-off unit
Cylinder clamping and loosening
5. Cutting unit
6. Stacker
.
Eletrical Parts of wpc furniture board machinery

1. Main motor frequency controller: Simens or ABB

2. Temperature controller: OMRON or RKC

3. AC controller: Schneider or simens

4. Thermal overload relay: Schneider

5. Switch: DELIXI or Schneider


Excellent Features of the PVC Foam boards:
Strong and durable; Lightweight and easy to install; Not easy to scratch;
Will not rot, warp, delaminate, cup or twist;
Resistant to weather, shock and abrasion;
Salt water corrosion resistant;
Impervious to salts, insects and many chemicals, including some acids;
Doesn't mold; Can be worked just like wood;
Non-toxic; 100% recyclable; Fire-retardant (self-extinguishing);
Easy to clean; Virtually maintenance free;
PVC Celuka foam board difference:
PVC Celuka Grade A is a kind of PVC foam boards we recommended to our customers as they have superior quality. The extrusion line adopts Celuka foam technology. These processes result in a "skinning" or outer layer of the foam board and harder or more scratch resistant.
Compared with other PVC foam board, this kind of PVC foam board not only has much more smooth surface, but also has the more skin hardness, and the mechanical performance of the PVC Celuka foam board is much better than other PVC foam boards.


Our Services

Pre-sale service:
To provide information and market research, to provide consultation, to provide many kinds of conveniences and market service, etc. Products: PVC Foam Board Machine...
The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.

After-sale service:
To install products and test products freely for customers.
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
To direct technology aspect of relevant use according to customers' requirements
To provide technical training for clients' employees.


o be responsible for maintenance service, door-to-door service under the necessary circumstance.

Technology support:
To provide installation and test for the machine.
To provide formulas and technology of relevant products.
To provide information of chemical material manufactories.
To provide technical training for clients' employees.
