Chengheng ABA Film Blowing Machine
HEBEI CHENGHENG PLASTIC MACHINERY TECHNOLOGY CO., LTD.- Type：High and Low Pressure Film Blowing Machine
- Raw Material：PP
- Maximum Folding Width of Film：1200mm
- Screw Diameter：55mm
- Automation：Automatic
- Computerized：Computerized
Base Info
- Model NO.：CHSJ
- Machine Weight：2.2ton
- Certification：CE, ISO9001:2008
- Model：Chsj--PC45,55
- L/D Ratio of Screw：L,D 30:1
- Main Motor Power：30kw
- Maximum Capacity Kg/H：75-100kg,H
- About The Machine Weight：75012000kg
- Transport Package：Wooden Cases
- Specification：SGS
- Trademark：CHENGHENG
- Origin：China
- HS Code：8477309000
- Production Capacity：100PCS,Year
Description
Model
PC-45/900 PC-55/1300 Width of the film
400-800mm 500-1200mm
Thickness of the film 0.006-0.08mm The max output 75kg/h 100kg/h
According to different width,thickness of film, die size and raw material characteristics to change Raw material PP/LDPE Power consumption 40kw/h 60kw/h Weight 7500kg 12000kg Extruder unit Diameter of screw
Φ45×3 Φ55×3
38CrMoALA wearproof Alloy steel,five years guarantee
L/D ratio of screw
30:1 Rotation speed of screw
10-120r/m Barrel Fan
Zone 3 barrels install over-temperature fan Gear box 146# 200#
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation system
Main motor 15kw×3 22kw×3
100% Original three-phase variable frequency motor Equipped with inverter control
Die head unit Die diameter 350mm 250mm
With 40Cr steel forging finishing, Uniform flow channel,blown plasticizing effect
Cool unit Air ring type
PPSingle outlet air ring Air ring material
High quality Taiwan cast aluminum alloy air ring Bellow power
1.5kw 4kw 2.2kw
Shanghai production of high-pressure mute fan
Traction unit Width of take up roller
900mm 1300mm Traction roller material
silicone roll
Take up motor
1.5kw 2.2kw 3.0kw
Installation of RV series reducer variable frequency motor inverter control
Take up speed
100m/min Embossing roller
hot embossing unit
cold embossing unit Lambdoidal board
Stainless steel perforated plate Gusset equipment
Modular rack type
Independent Split Bubble stabilizing ring
Electric aluminum roller guide
Manual wood floor Guide roller Aluminum guide roller (HV300-HV700) surface treatment
Winding unit Winding type
Double center winding machine Drive type Torque motor equipped RV reducer Film expanding roller Smoothing roll Electric control cabinet low-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control table
Computer control type 7-inch touch screen + process control system
Automatic air supply device
Who are we :
We are special produce full production of plastic bag, including film blowing machine, bag making machine,
printing machine ETC.
About us:
1) All Our Machines with CE certificate
2) Machines exported to Sauid , USA, UAE, Mexico, Africa,Vietnam,Thailand,Jodan and so on
3) All machines will be examined and test before delivery
4) Offer you skillful knowledge on machines and If you need, engineer will help you train workers how to operate
5) Guarantee for two year , Long Life Services
Packing and shipping
Machines will Packed with stretch Film
If need , wooden case as option
Delivery date: 30 work days after receipt of down payment.
Shipment from tian jin port ,China By Sea
Warm Noted:
Are you a factory or Trading Company
We are a factory with experienced exporting products. We also help clients
To look for products which they can not sure of.

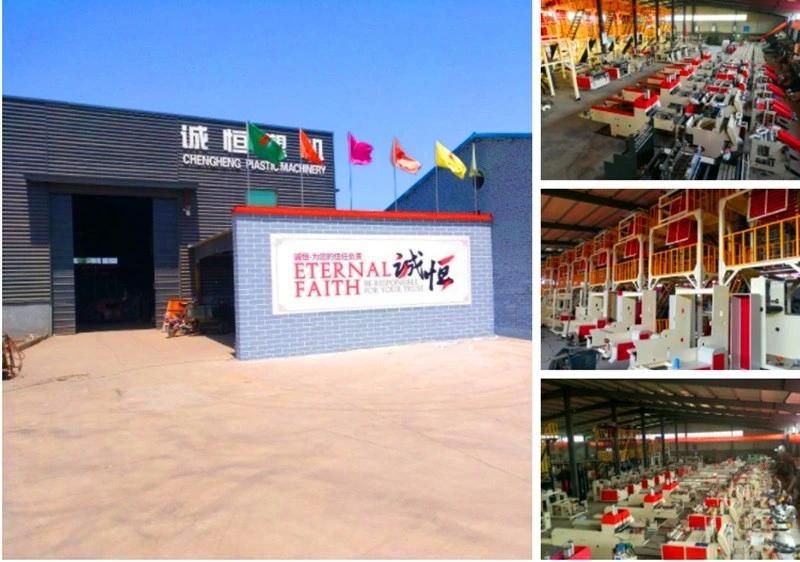

Where is your factory Located
Our Factory Located in Ningjin City ,Hebei Province ,China .
It is about 2 hours by plane from Shanghai, about 3 hours by air plane from
guangzhou .
We are pleasured to pick up you when you arrived .
How you work if I am not come to China
Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .
IF Have more questions , Contact with me !!!
THE ENDING ...........THANKS FOR YOUR READING
