• Condition：New
• Motor：Siemens Brand
• Inverter：ABB Brand
• Contactor：Schneider
• Temperature Controller：Omron,FUJI,Rkc Brand
• Transport Package：Film, Container
• Origin：China
• Production Capacity：up to Different Model

Basic Info.

Condition New Motor Siemens Brand Inverter ABB Brand Contactor Schneider Temperature Controller Omron/FUJI/Rkc Brand Transport Package Film, Container Origin China Production Capacity up to Different Model

Product Description

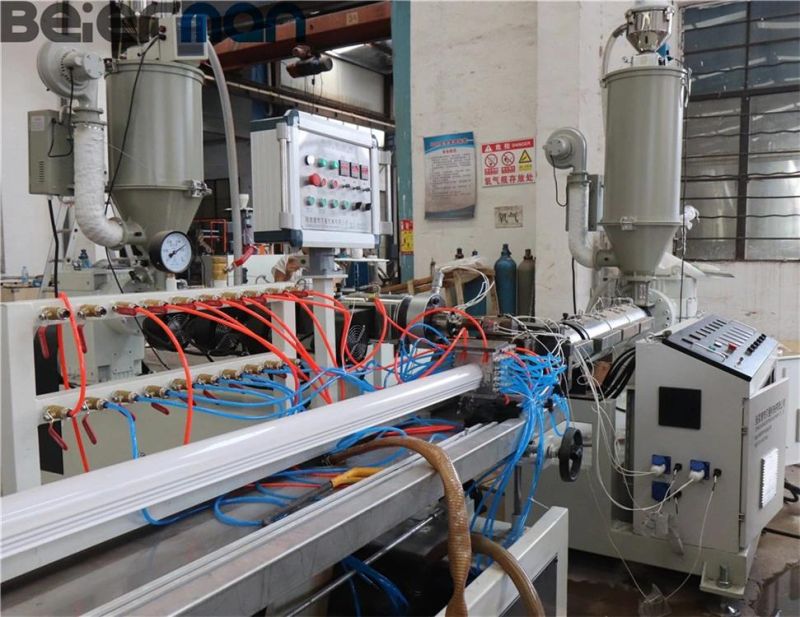

Detail description:
China origin Zhangjiagang city Beierman Machinery various different types PC LED light tube or profile making line ,

specially designed for making PC tube/profile as LED light, with one color separated, or two different color,integral.

The final PC tube or profile is suitable to T3,T5,T8,T12, etc models LED light.

if produce one color profile cover, need to equip 1set of single screw extruder will be enough, according to different width spefication will be equipped with corresponding single screw extruder SJ55, or SJ50,or  SJ45.

if produce two different color pipe or profile , need to equip 2sets of single screw extruder to co-extrude, according to different width spefication will be equipped with corresponding single screw extruders SJ55+SJ50

No.	Major parts	Detail information
1	Vacuum loading machine	Driving motor: 0.75KW
2	Hopper drying machine	electric heating power: 6KW, blower: 0.25KW
3	SJ55/25 Single screw extruder	Driving motor:15KW,heating power:16KW,cooling power:0.72KW.
4	Vacuum loading machine	Driving motor:0.75KW
5	Hopper drying machine	electric heating power:6KW, blower:0.25KW
6	SJ50/28 Single screw extruder	Driving motor: 11KW, heating power:12KW,cooling power:0.54KW.
7	PC LED integral cover and base mould	mould structure up to customer's sample or drawing dimension, such as integral 2color pipe or profile.
8	Vacuum forming tank	Tank length: 2500mm ,width:600mm. vacuum pump:2.2KW,1pc. water pump:0.37KW,1pc. table moving motor:0.55KW. stainless steel tank.
9	Haul off machine	haul power:0.75KW*2pcs; 2caterpillars
10	Cutting machine,include stacker and pile tank	Cutting motor:0.75KW, knife lift cutter. stacker:2000mm length,air cylinders. pile tank.

Packaging and shipping

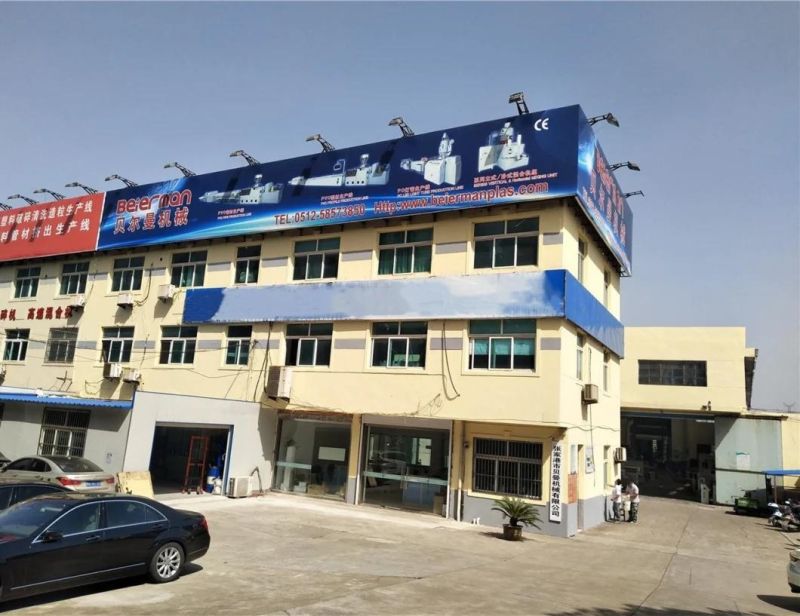

Company introduction:

- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.

- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.

- we have already get CE certificate for our machines and factory, which ensured the high quality level of all machines we are producing

- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.

- there will be 1-2 new produced machines will be showed to the customers every year.

- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.

 We Beierman Machinery can supply major machines as below 14items:

1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;

   Ribbon mixer, low speed mixer~~~for PVC powder;

   Hopper dryer mixer~~~for plastic granules;

   Color mixer~~~for plastic granules.

2, PC LED light diffuser,bottom tube making line.

3,Price tag profile production line;  Soft seal production line;  Rigid rod production line.

4,Single screw extruder;

5,Conical twin screw extruder;

6, 2layer; 3 layer;4 layer PPR pipe co-extrusion line;  PPR, PE, HDPE, PE-RT pipe production line;

7, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);

8,  3 layer PVC pipe co-extrusion line;   PVC pipe production line;

9,  PVC 2 cavity pipe production line;

10, PVC 4 cavity pipe production line;

11,Pipe belling machine;

12, PVC rain gutter profile line; Trunking/panel profile line;WPC profile production line; and 2 layer PVC profile co-extrusion line;

13, Granulating line-water ring granulating,or string granulating (PP PE );

14, Granulating line-hot die face granulating (PVC).


Pre-sales services:

we will take customers to visit our factory and check the machines quality from airport/bus station/train stations

- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method

After-sales services:

we will offer electric diagram, installation diagram, usage manual

- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.

- we will offer customers spare parts at cost prices all life long of the machines.

Exhibition:




FAQ:
