• Model NO.：ZXDG
• Voltage：220V,380V,415V
• Power(W)：80kw
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Standard Packaging
• Specification：32000X1500X2600mm
• Trademark：ZX
• Origin：China
• HS Code：84778000
• Production Capacity：15 Sets , Year

Basic Info.

Model NO. ZXDG Voltage 220V/380V/415V Power(W) 80kw After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Standard Packaging Specification 32000X1500X2600mm Trademark ZX Origin China HS Code 84778000 Production Capacity 15 Sets / Year

Product Description

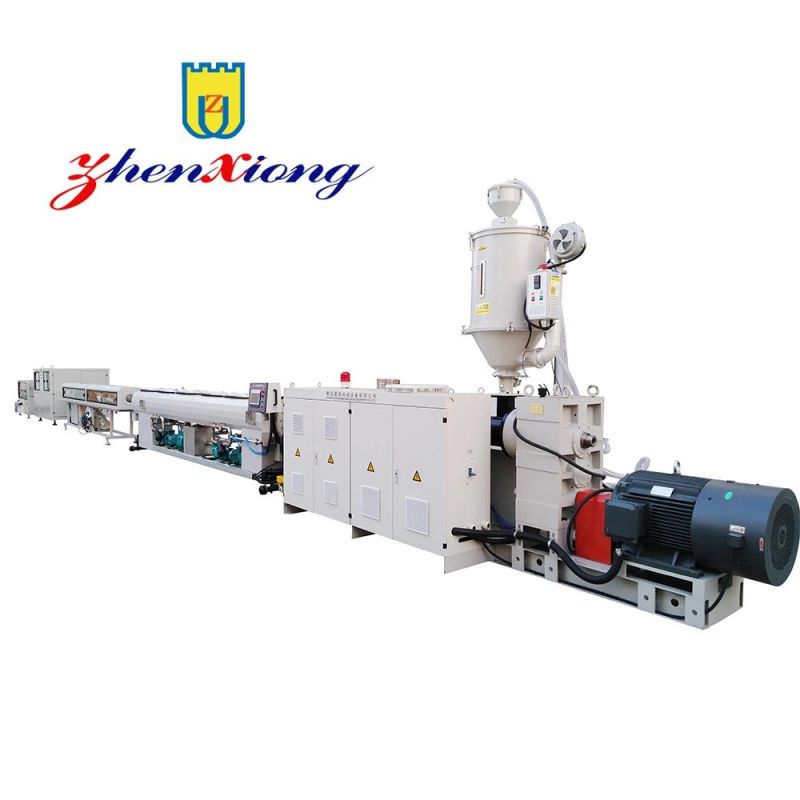

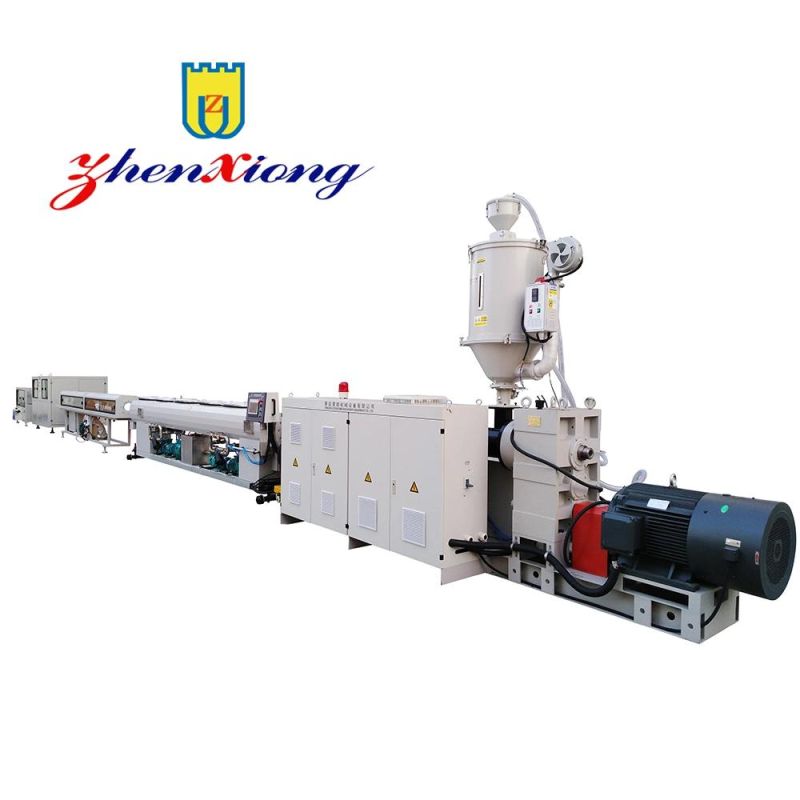

 Large diameter HDPE pipe (630mm)extruding machine

1. Usage:
PE, HDPE pipe is mainly used in water draining, nature gas transport.
2. Machine feature:
   High efficiency single screw extruder: high rotation speed, high capacity and good compounding effect ensures stable extrusion.
   Extruding die: it adopts latest designed die head with spiral distributing flow channel, built-in Temp.control device which make extrusion more  evenly and regulution more conveniently.
   Vacuum calibration and spraying cooling trough: advanced water loop vacuum calibration, equipped with adjusting device for roundness and  multi-section 6m spraying water tank, ensure perfect calibration; the body of tank is made of stainless steel.
   Haul off unit: can select 2 claw,4 claw,6 claw,8 claw haul off unit  to satisfy manufacturing requirements for different pipes.
   Cutting unit: base on different reuirements,we can adopt saw cutting,planet saw cutting and chip-free rotary knife cutting etc.
   Control system: all kinds of control system is available, such as PLC automatic control system, make operation easily and smoothly.
3. Technical parameters:

Model	ZX-PE63	ZX-PE250	ZX-PE450	ZX-PE630	ZX-PE800	ZX-PE1200
Extruder size	φ75/33	φ75/33	φ90/33	φ120/33	φ150/33	φ150/33
Pipe diameter (r/min	φ20-φ63	φ75-φ250	φ110-φ450	φ315-φ630	φ315-φ800	φ630-φ1200
Total power (KW)	125	230	380	550	800	1000
Overall size(m)	28X4X3	40X8X3	52X8X36	60X10X4	70X10X4	78X11X4

 4 Plastic PE Pipe Making Machine is consist of

EXTRUDER	1 SET
VACUUM SIZING TANK	1 SET
SPARY TANK	1 SET
HOUL-OFF MACHINE	1 SET
CUTTING MACHINE	1 SET
STACKER	1 SET

Our  products have exproted all over the world.
