• Model NO.：PXB90D
• Certification：CE, ISO9001:2008
• Extrusion System：Hard Gear Surface Decelerator + Japan Inverter
• Auto Deflashing：Available
• Total Weight：8.0t
• Output(Dry Cycle)：320 * 2 PC,Hr
• Die Head Option：Single, Double, Tri-Head, Tetra-Head
• Transparent Line：Available
• Production Usage：Bottle, Toy, etc
• Multi-Layer：Available
• Moog：100 Point
• Average Energy Consumption：31kw
• Transport Package：Film Packing with Wooden Bottom
• Specification：Max capacity 12L
• Trademark：Puxin
• Origin：Suzhou
• HS Code：847730100

Specifications

Material PE,PP, PVC, PA...Max container capacityL12Number of dieSet1, 2, 3, 4Output(dry cycle)Pc/hr320Machine Dimension(LxWxH)M4.5x3.5x2.9Total weightT8.0

Clamping Unit

Clamping forceKN95Platen opening strokemm200-600Platen sizemm550x460Max mould size(WxH)mm550x430Mould thicknessmm210-330

Power

Max driveKW67Total powerKW78Fan power for screwKW0.6Air pressureMPA1.0Air consumptionM3/min0.9Average energy consumptionKW31

Extruder unit

Screw diametermm90Screw L/D ratioL/D24Melting capacityKg/hr130Number of heating zonezone4Extruder heating powerKW21.4Extruder driving powerKW37

Die

Number of heating zonezone3Power of die heatingKW5.7Max die-pin diametermm180Center distance of double diemm250
Delivery Time:
- No later than 45 days after receipt of the deposit

Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).

Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.

Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.

Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

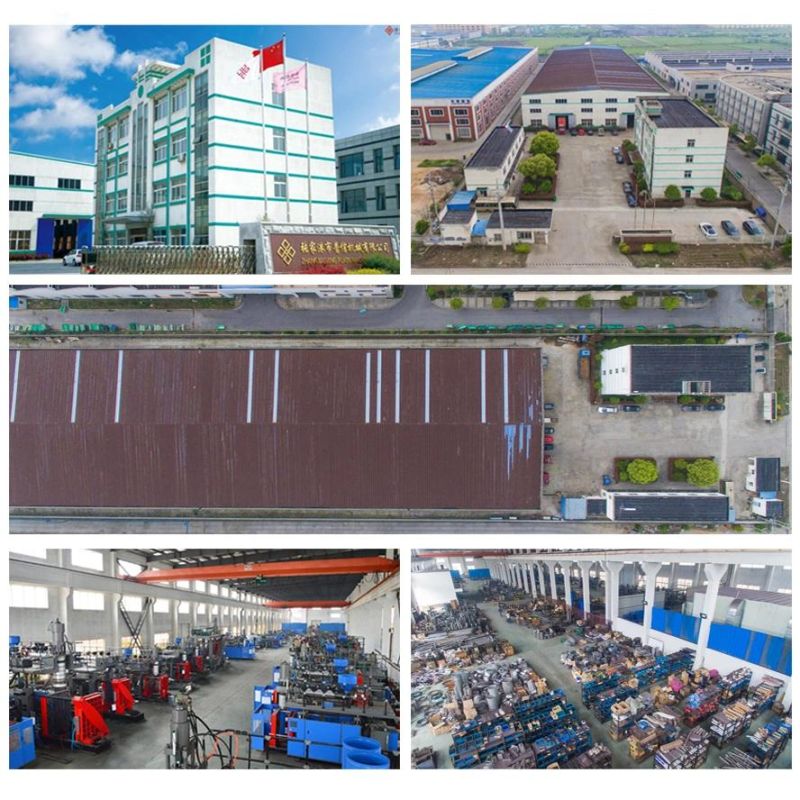

OUR FACTORY:
