• Model NO.：SJ-75,80,90
• Screw：Single Screw
• Motor：AC Motor
• Inverter：ABB
• Capacity：150kg,H
• Main Material：Stainless Steel
• Surface Treatment：Nitrided and Polished
• Transport Package：Seaworthy Package
• Specification：SGS
• Trademark：ZHUOYA MACHINERY
• Origin：Qingdao, Shandong, China
• HS Code：84772090
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. SJ-75/80/90 Screw Single Screw Motor AC Motor Inverter ABB Capacity 150kg/H Main Material Stainless Steel Surface Treatment Nitrided and Polished Transport Package Seaworthy Package Specification SGS Trademark ZHUOYA MACHINERY Origin Qingdao, Shandong, China HS Code 84772090 Production Capacity 200 Sets/Year

Product Description

PRODUCT DESCRIPTION:

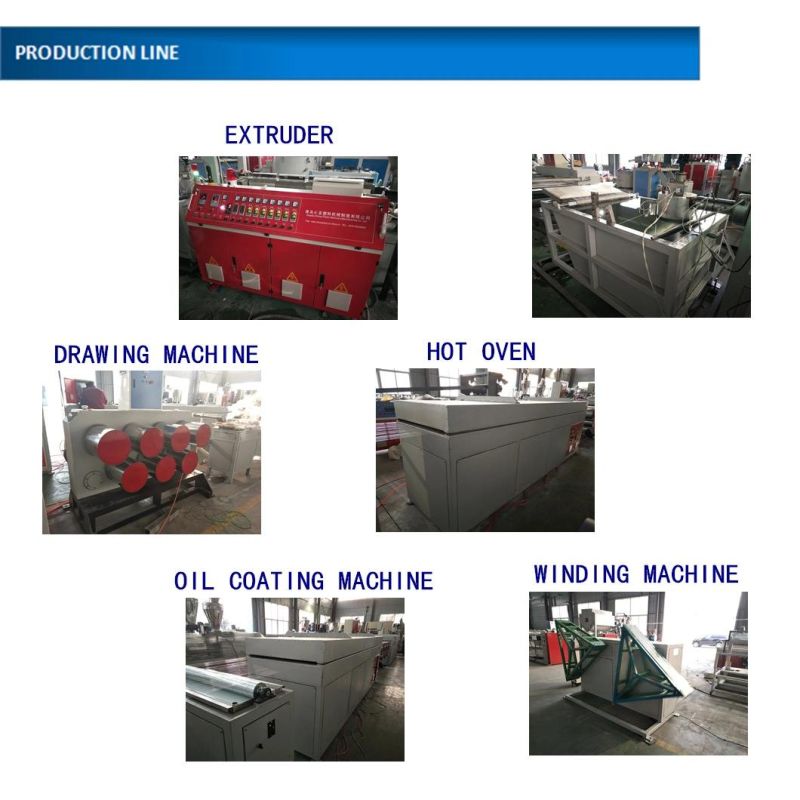

1.Composition: dehumidifying and crystallizing system, extruder, screen changer, Meter pump, mold, haul-off, oven, and winder, etc.
2.Production Process:Material→ Dehumidifying and Crystallizing → Extruding → Filter→ Metering→ Mold → Cooling→ Haul-off →Water Heating→ Haul-off→ Water heating→ Haul-off → Glazing→ Winding

MAIN FEATURES:
1.Eco-friendly and Extensive Use: With 100% recycled PET bottle flakes, PP pellets, or PE pellets to produce high quality monofilament, like broom filament, brush filament, Chrismas tree filament, fishing net wire, construction safety net, rope filament, etc.
2. Mature Technology and High Performance: New technology, hot wind cycles to dry, increase the viscosity of the bottle flakes material; secondary stretching, increase the tensile strength and elongation, the belt tension reaches more than 10000N
3.Energy Conservation: Precise and energy saving temperature control system, power saving, low noise, low input and high yield.


DIFFERENT MODELS

Model	Filament Dia.	Production capacity	Total Power
SJ-75	0.05MM-2MM	50-85kg/h	80KW
SJ-80	0.05MM-2MM	70-120kg/h	90KW
SJ-90	0.05MM-2MM	85-150kg/h	100KW


ELECTRICAL CONFIGURATION:
1) Main motor frequency controller: ABB
2) Temperature controller: OMRON
3) AC contactor: Siemens
4) Thermal overload relay: Siemens
5) Breaker: CHINT or according to customer requirement

Advantage of ZHUOYA extruder machinery

1. 50 lines every year going to domestic and oversea market.
2. Machine running in the workshop for visiting at any time.
3. Vast experience and suggestion from customers practical operations in about 20 countries.
4. Professional and mature technology in few manufacturers in China


FAQ
Q1: If I need more information, how to contact you?
A:Send me your demands, we will send back detailed machine specifications with working video.

Q2: How to buy your machine?
A: We send detailed machine quotation to you, if you are satisfied, we will make PROFORMA INVOICE for you.  Payment terms: 30% deposit, after machine testing good, 70% before shipment.

Q3: What about warrant?
A: We have one-year warranty.We will provide the spare parts for free except the malfunction caused by your incorrect operation.

Q4: How can I believe your factory and company?
A: You are welcomed to ask authority to visit our factory and machine, we are real factory.

Q5: Do you have other service?
A:We can send engineer to your factory to install the machine and offer training. Each year, if we have machine technical improvements, we will inform customer.

Q6: Where is your factory located?
A:Our factory is in Qingdao city which has the world famous port. If you want to visit our factory, we can come to pick you up.
