• Model NO.：GF200
• Customized：Customized
• Condition：New
• After-sales Service：One Year
• Electrical Components：Siemens, ABB, Omron, FUJI, etc.
• Delivery Time：Around 40 Days
• Pipe Diameter：From 16mm-1600mm
• Motor Brand：Siemens
• Extruder Control：by Siemens PLC Screen Touch
• Motor Drive/Inverter：ABB Brand
• Pipe Usage：Water, Engergy, Gas, Irrigation, etc.
• Production Speed：Around 0.5-20meter,Minute
• Shipment：LCL and FCL
• Machine Installation：Available
• Transport Package：Plastic Film and Wooden Box
• Specification：Pipe size upto 1600mm
• Trademark：CONBOPLAS
• Origin：Zhangjiagang
• HS Code：84778000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. GF200 Customized Customized Condition New After-sales Service One Year Electrical Components Siemens, ABB, Omron, FUJI, etc. Delivery Time Around 40 Days Pipe Diameter From 16mm-1600mm Motor Brand Siemens Extruder Control by Siemens PLC Screen Touch Motor Drive/Inverter ABB Brand Pipe Usage Water, Engergy, Gas, Irrigation, etc. Production Speed Around 0.5-20meter/Minute Shipment LCL and FCL Machine Installation Available Transport Package Plastic Film and Wooden Box Specification Pipe size upto 1600mm Trademark CONBOPLAS Origin Zhangjiagang HS Code 84778000 Production Capacity 30 Sets Per Month

Product Description

Brief Introduction:
PE pipe production line is primarily used in the manufacturing of PE pipes with diameters ranging from 20mm to 1600mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. This line also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.

Application:
Water supplying and transportation pipe
Gas distribution and transportation pipe

Main Features:
The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;
Advanced PLC operation system realizes synchronization and automation;
Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;
Offer stable haul-off unit with 2-12 caterpillars;
Provide saw & chip-free cutting options;
Low energy consumption, excellent performance, and easy maintenance.

Technical Specifications:

Item/Model	GF63	GF110	GF160	GF250	GF315	GF630	GF800
Diameter range (mm)	16-63	16-110	50-160	50-250	110-315	315-630	400-800
Claw number of haul off (pcs)	2	2	2	3	4	6	8
Pulling force (KN)	6	8	11	20	30	40	50
Pulling speed (m/min.)	15	12	8	9	4	2	2

 Remarks: all the information above is only for reference, please gather the exact data by contacting us.

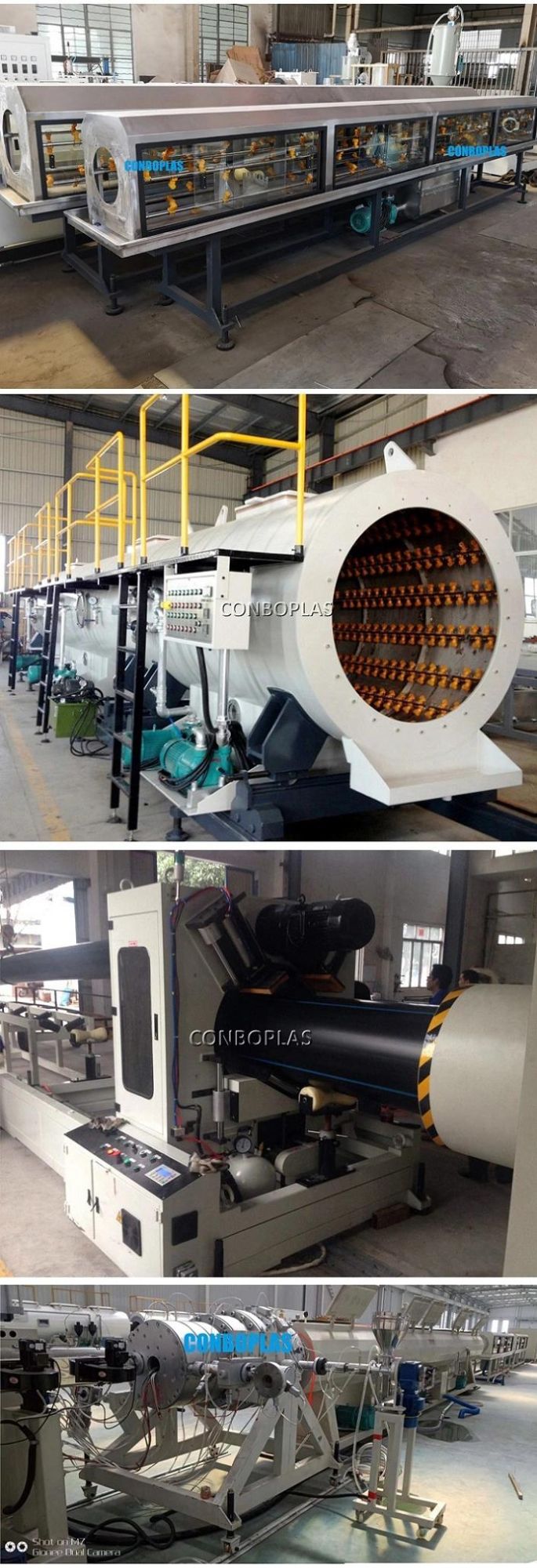

Detailed machines:
