• Model NO.：MKW
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Transport Package：Wood Case
• Specification：CE, ISO
• Trademark：Mengkwa
• Origin：Zhe Jiang, China
• Production Capacity：1.2m,S
• Package size per unit product：350.00cm * 200.00cm * 250.00cm
• Gross weight per unit product：2500.000kg

Basic Info.

Model NO. MKW Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Transport Package Wood Case Specification CE, ISO Trademark Mengkwa Origin Zhe Jiang, China Production Capacity 1.2m/S

Packaging & Delivery

Package size per unit product 350.00cm * 200.00cm * 250.00cm Gross weight per unit product 2500.000kg

Product Description

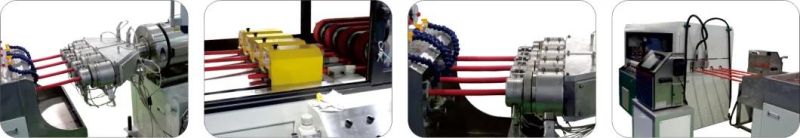

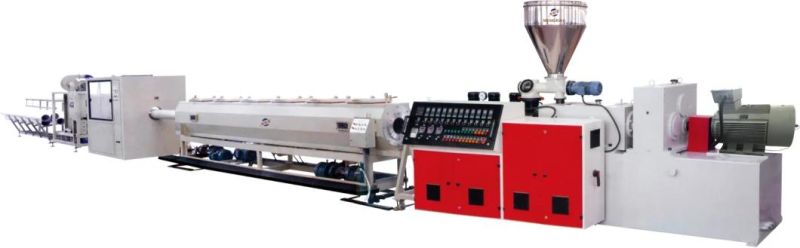

PVC Pipe (one /two /four cavity ) Extrusion Line

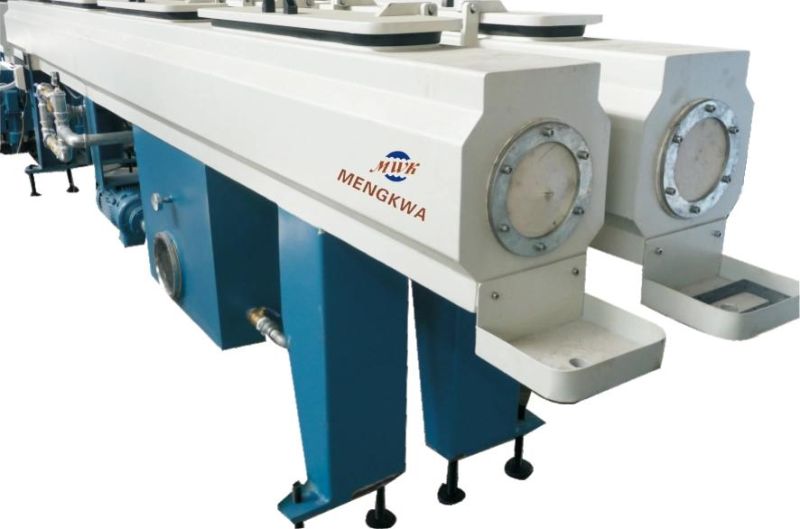

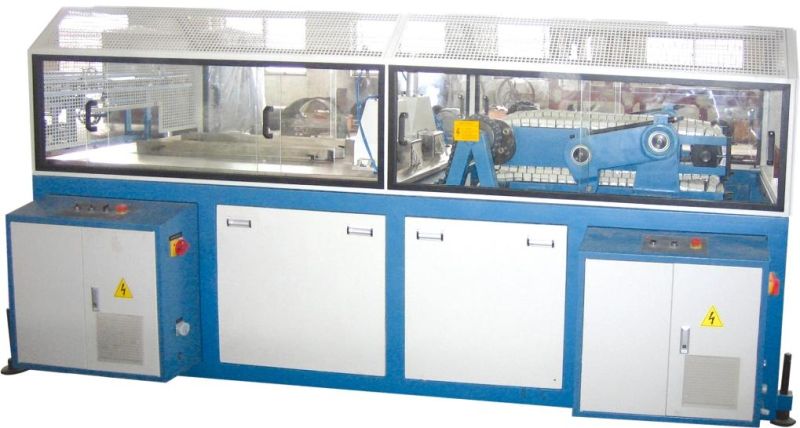

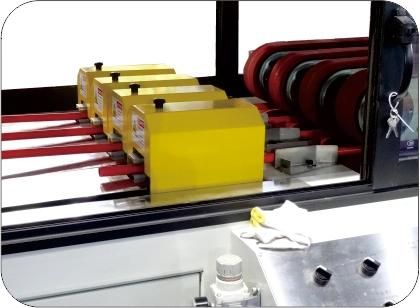

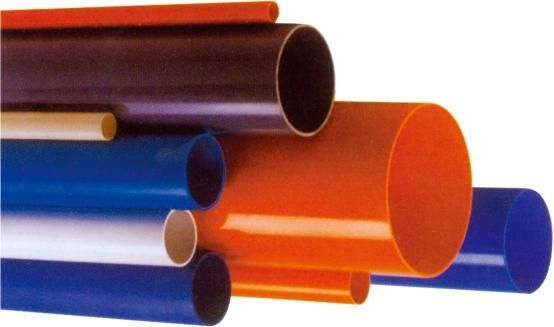

This series plastic pipe material production line is mainly used in the area of agriculture water supply system, architectural water supply system, pavement of cables, etc. As well as PVC pipe material of all aorts of pipe caliber and wall thickness. Thsi machine group consists mainly of twin conical (parallel) screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. Single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products. The drawing machine includes two-claw type, three-claw, four-claw type, six-claw type, eight-claw type, etc. Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, ets, it can also produce PP, PE, ABS, and PPR, PEX, silicon core pipe and pipe material of other material. The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.


Specification	GF630	GF800
Items	DIA 315-630	DIA 450-800
Pipe Diameter	Dia315-630	Dia 450-800
Number of claws	6	8
Hauling force(N)	50000	60000
Hauling speed(m/s)	1.2	0.6
Total power(kw)	56	64
Center height	1350	1450
