Donghang Automatic Plastic Lid Cover Forming Machine (DHBGJ-450L)

Ruian Donghang Packing Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Molding Method：Hydraulic and Servo
  • Hydraulic and Servo：Suitable Sheet:PVC, Pet, PS
  • Max.Forming Depth:50mm：Max.Forming Area:260X340mm2
  • Transport Package：Wooden Packaged or Stretch Film Packaged
  • Specification：SGS

Base Info

  • Model NO.：Model: DHBGJ-450L
  • Trademark：DONGHANG
  • Origin：Wenzhou, Zhejiang, China
  • HS Code：39231000
  • Production Capacity：50 Sets,Month

Description

Basic Info.

Model NO. Model: DHBGJ-450L Trademark DONGHANG Origin Wenzhou, Zhejiang, China HS Code 39231000 Production Capacity 50 Sets/Month

Product Description

Feature:

it's a new type one that combines hydraulic and servo working  of main forming machine and also brings to more improvement and innovation.With easy operation, calm running, conveninent maintenance and stable function.It can provide PVS,PS,PET etc.All kinds of covers.


Technical Parameter:


Punching Frequency20-35time/min
Max.Forming Depth50mm
Max.Forming Area260*450mm²
Air-compressorLess than 0.2m³/min
Pressure0.4-0.7MPa
Power20Kw
Overall Dimension4200*850*1700mm
Weight2000KG

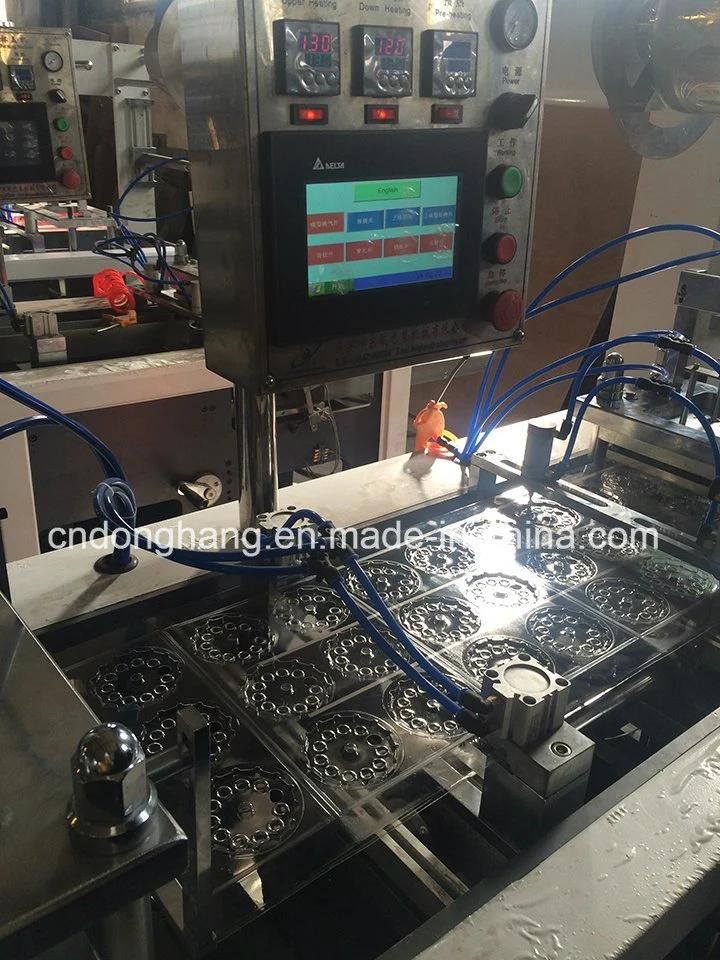

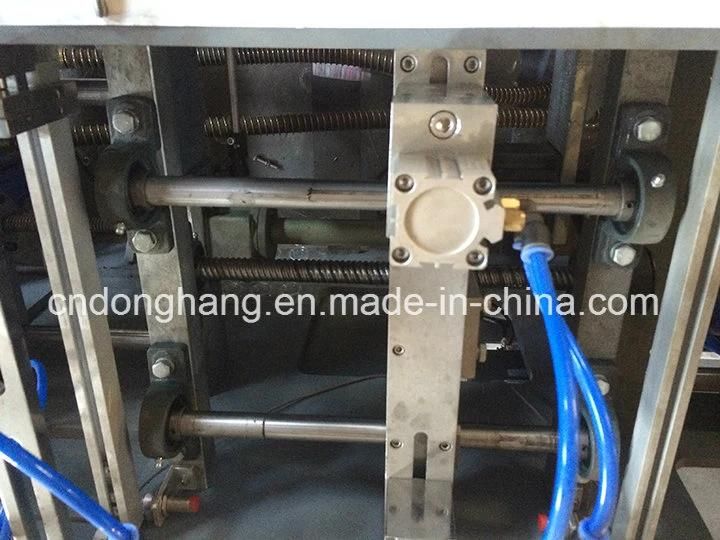

Machine Image:
Donghang Automatic Plastic Lid Cover Forming Machine (DHBGJ-450L)
Donghang Automatic Plastic Lid Cover Forming Machine (DHBGJ-450L)

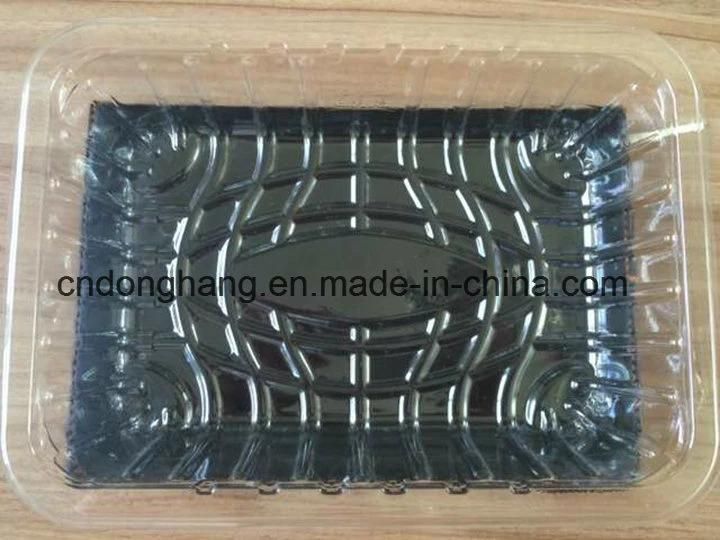

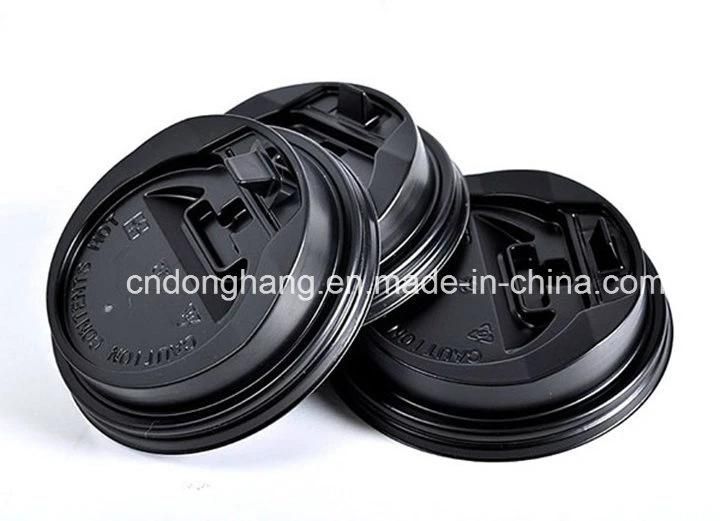

Sample reference:
Donghang Automatic Plastic Lid Cover Forming Machine (DHBGJ-450L)

Donghang Automatic Plastic Lid Cover Forming Machine (DHBGJ-450L)


Packing and shipping:

Donghang Automatic Plastic Lid Cover Forming Machine (DHBGJ-450L)
