PVC Cable Trunking Extrusion Machine PVC Cable Tray Duct Making Machine
ZHONGSHAN YOUTH PLASTIC MACHINERY CO., LTD.- After-sales Service：Anytime
- Warranty：One Year
- Type：Profile Extruder
- Plastic Processed：PVC
- Product Type：Profile Extrusion Molding Machine
- Feeding Mode：One Feed
Base Info
- Model NO.：SJ55
- Assembly Structure：Integral Type Extruder
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Cutting Type：Dust Free-Heat Cutting
- Cavities：4 Cavities,2cavities,Single Cavity
- Output：Max.250kg,H
- Sinlge Line Speed：3-22m,Min
- Transport Package：Wood
- Specification：20mx1.5mx2m
- Trademark：YOUTH
- Origin：China
- Production Capacity：1000set,Year
Description
Basic Info.
Model NO. SJ55 Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Cutting Type Dust Free-Heat Cutting Cavities 4 Cavities/2cavities/Single Cavity Output Max.250kg/H Sinlge Line Speed 3-22m/Min Transport Package Wood Specification 20mx1.5mx2m Trademark YOUTH Origin China Production Capacity 1000set/YearProduct Description
PVC Cable Trunking Extrusion Machine PVC Cable Tray Duct Making Machine

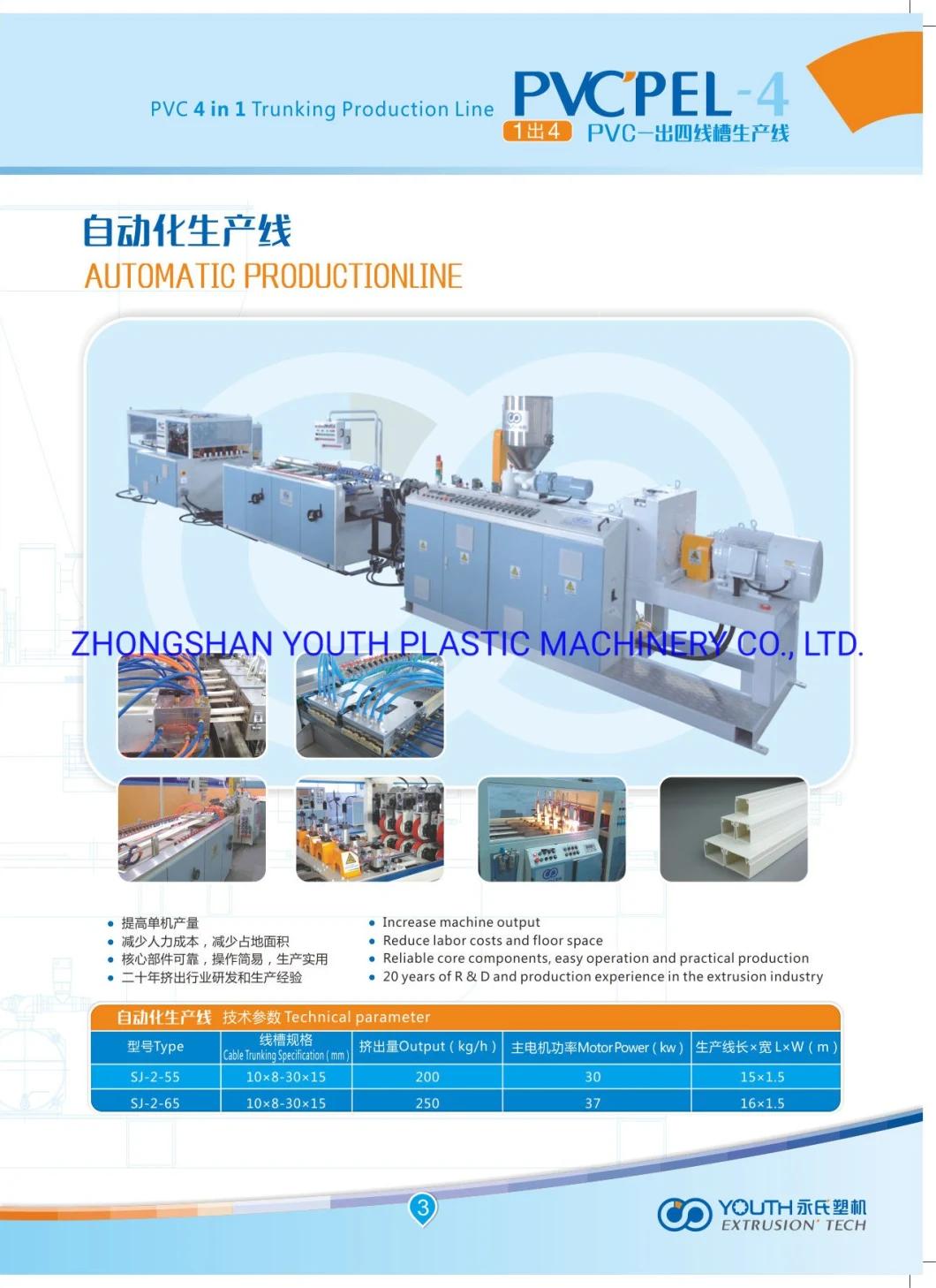

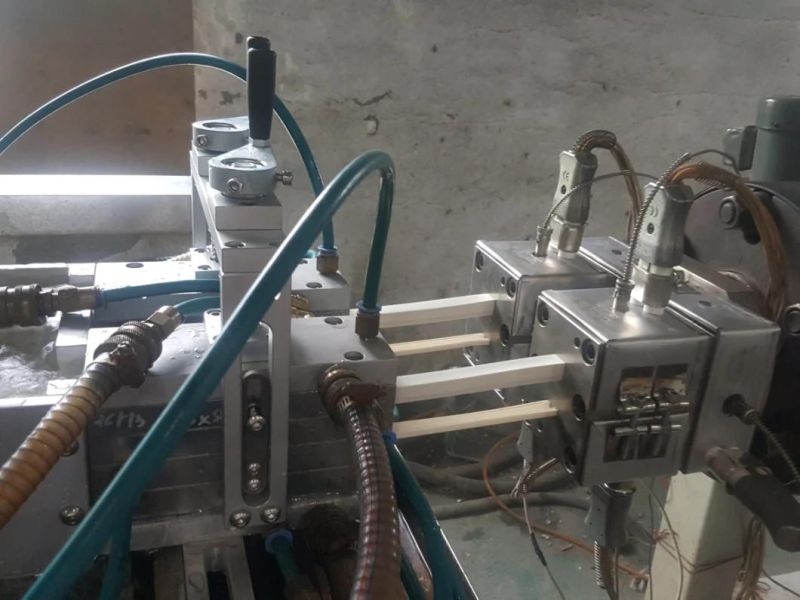

PVC cable trunking machine ( 4 in 1) is made of a 65/132 conical twin screw extruder, one set of 4 in 1 mould, one set of calibration table , haul-off & cutting combination (dust free) and stacker.The diameter of the best production tube is within 40*30mm.Main features: high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc. 4 in 1 products can be produced at one time.

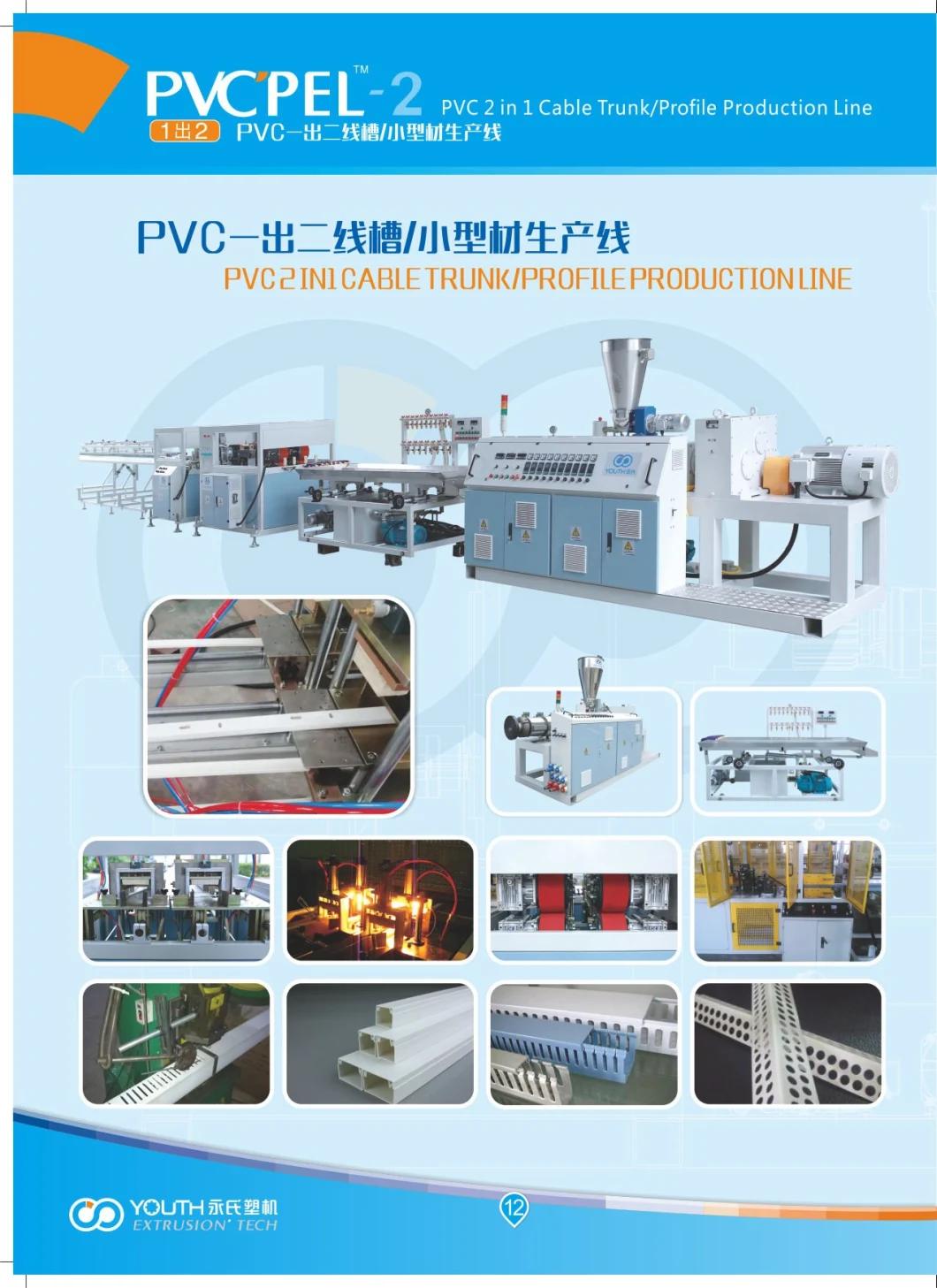

PVC cable trunking machine ( 2 in 1) is made of extruder, one set of 2 in 1 mould, one set of calibration table , haul-off & cutting combination (dust free) and stacker.The diameter of the best production tube is within 60*40mm.Main features: high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc. 2 in 1 cable trunking products can be produced at one time.
PVC cable trunking machine ( 1 in 1) is made of extruder, one set of 1 in 1 mould, one set of calibration table , haul-off & cutting combination (dust free) and stacker.The diameter of the best production tube can be up to 200*100mm.Main features: high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc.
| NO. | name | |

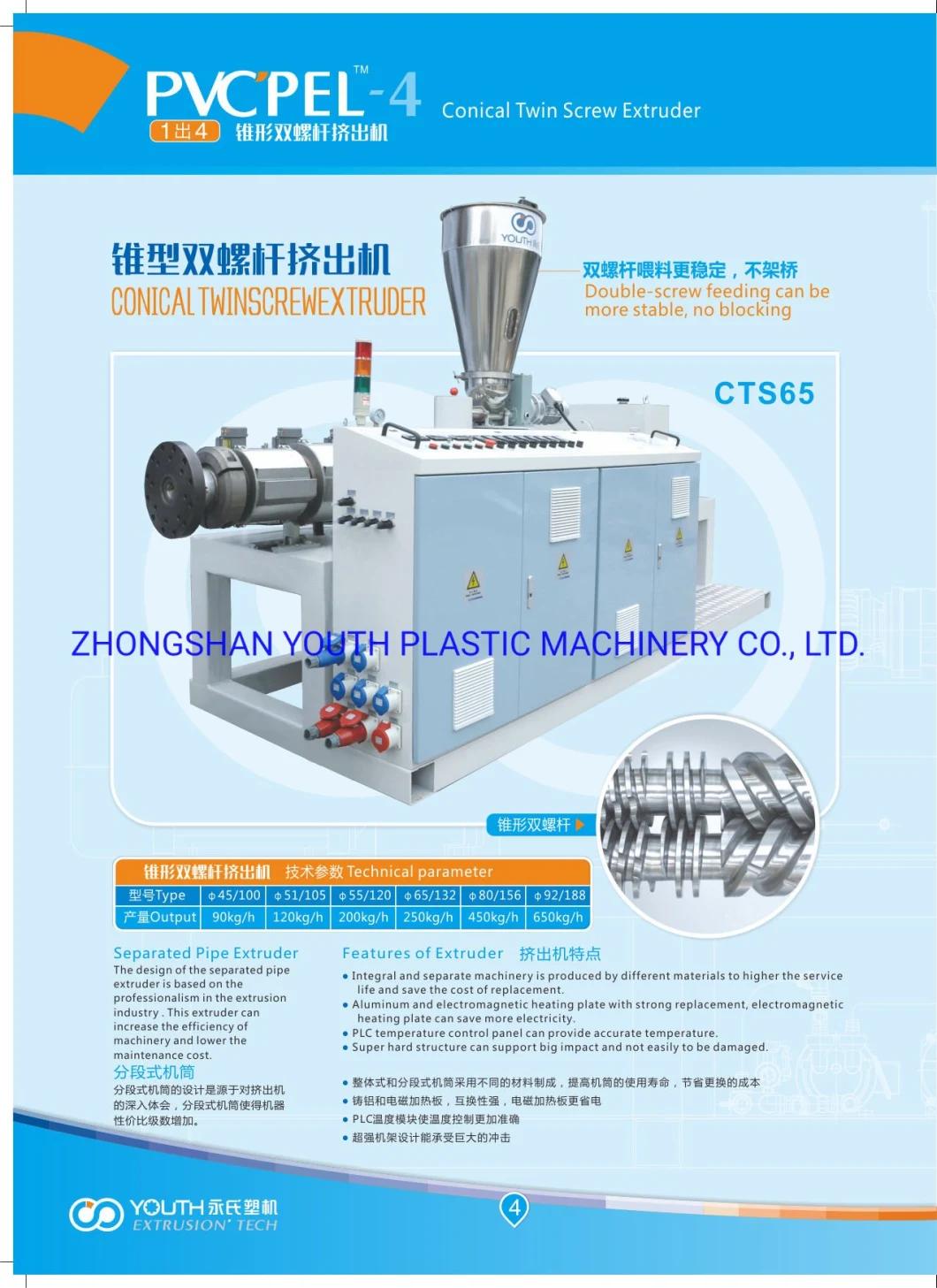

| 1 | extruder | |

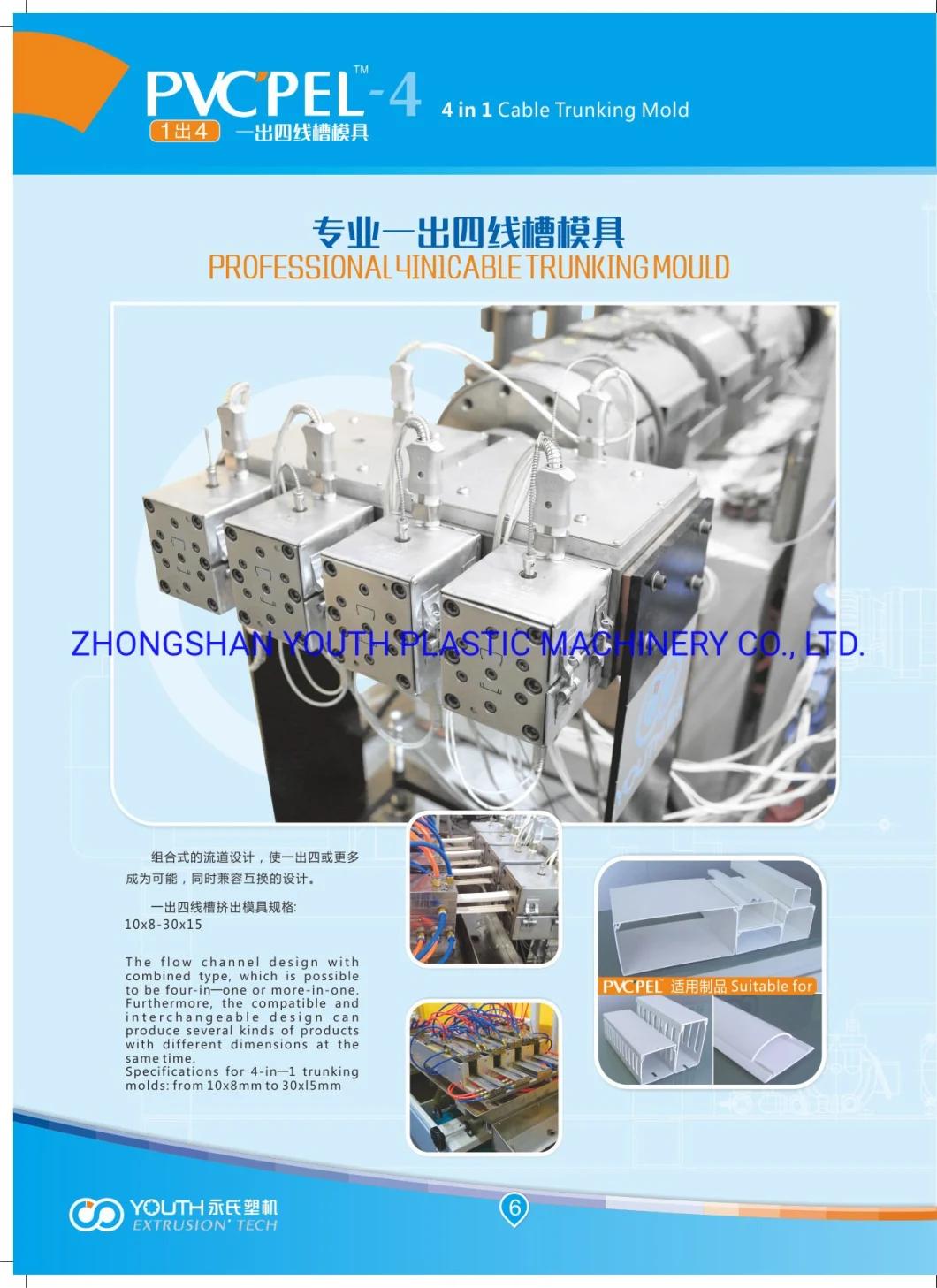

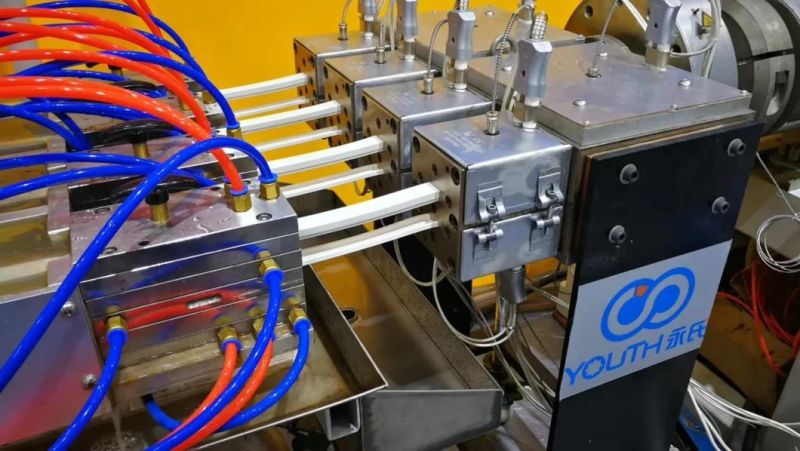

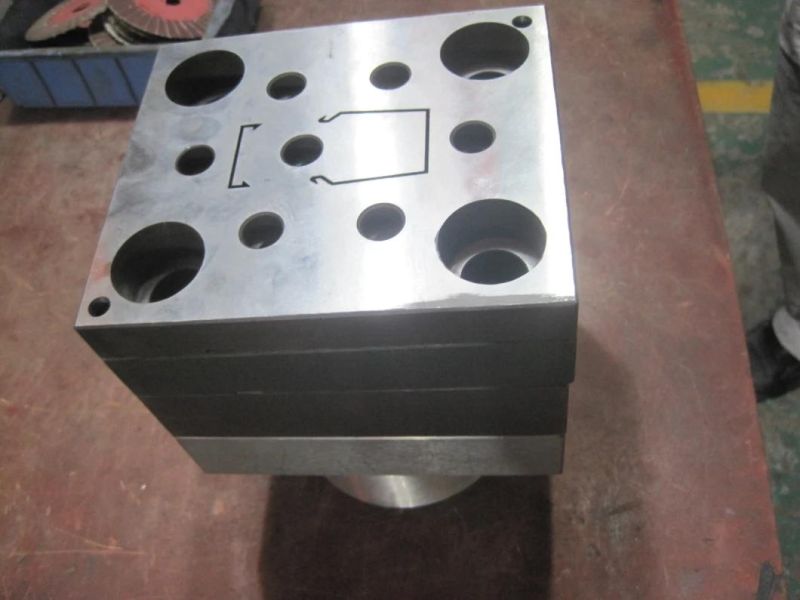

| 2 | 4in1 cable trunk mold | |
| 3 | calibration table | |
| 4 | 4 in 1 haul-off | |

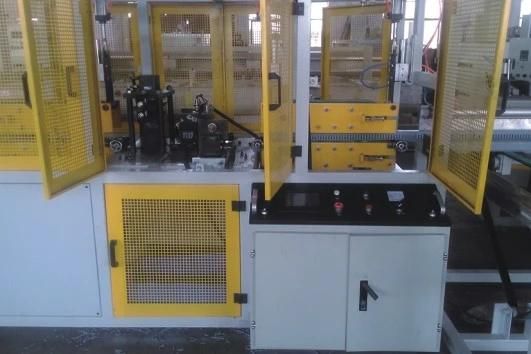

| 5 | 4 in 1 cutter | |
| 6 | stacker | |
| 7 | feeder |
