• Model NO.：CB-D1200
• Knife Roll：Solid Knife Roller
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Blade Material：Cr12MOV,SKD-11,D2,DC53
• Rotating Blade Quantity：Different as Different Machine Model
• Fixed Blade Quantity：4PCS
• Rotating Speed：75-80rpm
• Rotating Diameter：260mm-550mm
• Motor Power：22kw-110kw
• Delivery Time：30 Days
• Guarantee Period：One Year
• Electrical Components：Siemens, ABB, Schneider, Omron, etc.
• Standard Particle Size：Around 60mm (Customized)
• Transport Package：Plastic Film and Wooden Box
• Specification：Max model at CBS-1500
• Trademark：CONBOPLAS
• Origin：Zhangjiagang
• HS Code：84772090
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. CB-D1200 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE, ISO9001:2008 Blade Material Cr12MOV/SKD-11/D2/DC53 Rotating Blade Quantity Different as Different Machine Model Fixed Blade Quantity 4PCS Rotating Speed 75-80rpm Rotating Diameter 260mm-550mm Motor Power 22kw-110kw Delivery Time 30 Days Guarantee Period One Year Electrical Components Siemens, ABB, Schneider, Omron, etc. Standard Particle Size Around 60mm (Customized) Transport Package Plastic Film and Wooden Box Specification Max model at CBS-1500 Trademark CONBOPLAS Origin Zhangjiagang HS Code 84772090 Production Capacity 30 Sets Per Month

Product Description

General Information:

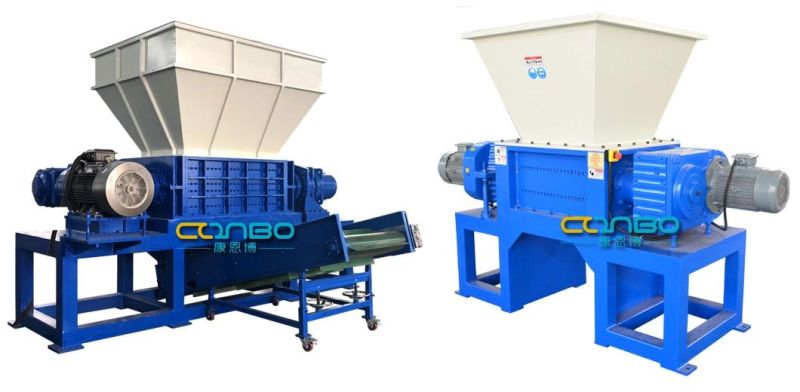

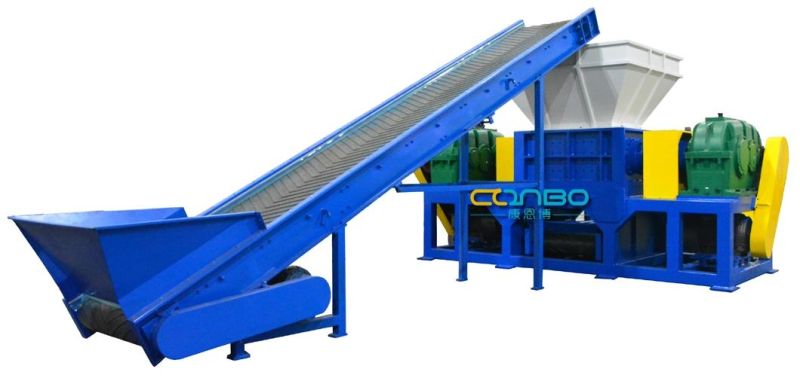

The CBD serious double shafts shredders have been designed for a wide ways of applications and industries, such as: shredding WEEE waste, scrap tires, packaging barrel, pallets, etc. Depending on input materials and the following process the shredded material can be used directly or go into the next step of size reduction. CBD's serious double shaft shredder has two rotors built into the machine that rotate at low speeds, high torque and low noise. Adopt with microcomputer control system with function of start, stop, automatic reverse sensors to protect the machine against over loading and jamming.

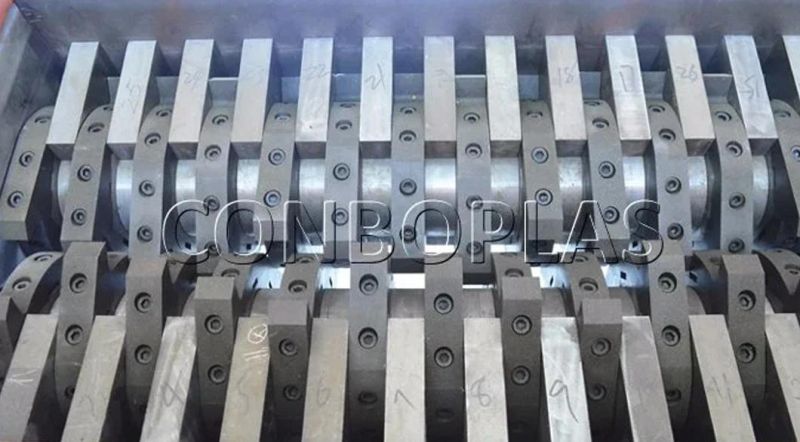

 Based on different materials, we design the special blades with different hooks, normally, we have single hooks blade, double hooks blades, four hooks blades and multi-hooks blades. Also the thickness of blades for different materials are different, the range is 10mm-80mm. We design single or multi-hooks of blades with different thickness for different materials.
 Such as:
The 10 and 20mm thick blades are suitable for fragile materials such as medical packaging and electrical board.
 The 40 and 50mm thick blades are widely used for various materials such as tires, plastic products, wood pallets, film and etc.
 The 80mm thickness blades are used for shredding metal items or plastic and metal compounds such as refrigerator and drums, the blades can handle material up to 10mm in thickness.

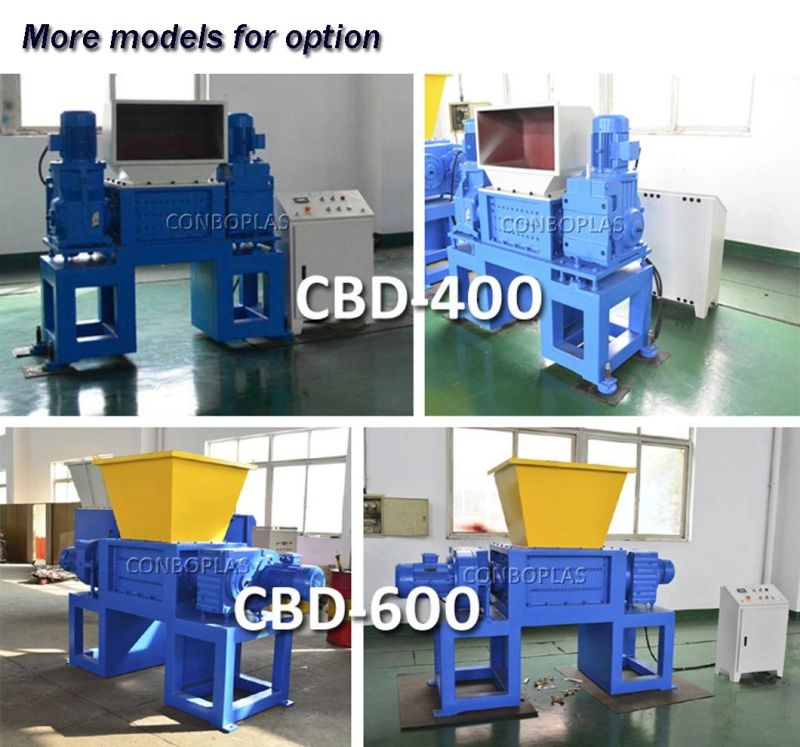

Machine models:

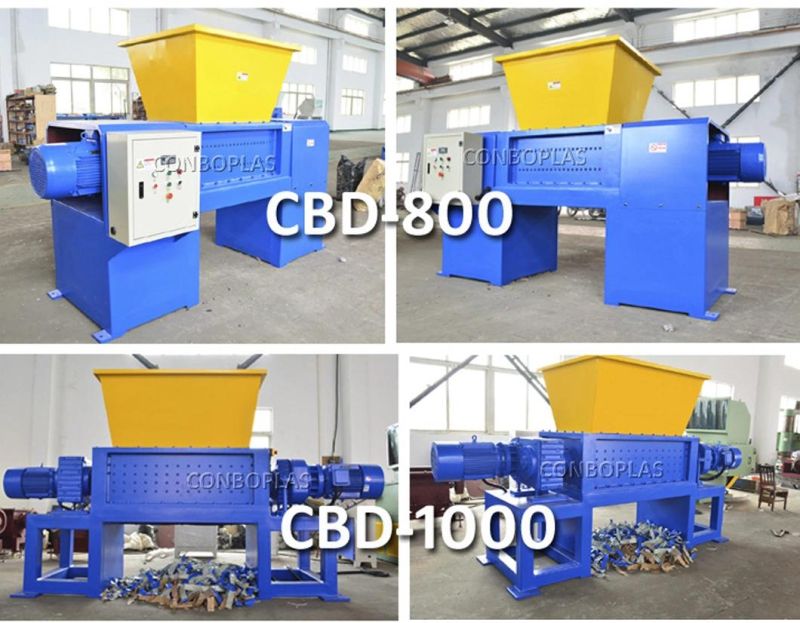

Model	CBD-400	CBD-600	CBD-800	CBD-1000	CBD-1200	CBD-1500
Motor power	3+3kw	7.5+7.5kw	15+15kw	18.5+18.5kw	30+30kw or 37+37kw	55+55kw
Rotating blade quantity	20pcs	20pcs	20pcs	20pcs	24pcs	30pcs
Blade thickness	20mm	30mm	40mm	50mm	50mm	50mm
Blade material	Cr12MoV/SKD-11	Cr12MoV/SKD-11	Cr12MoV/SKD-11	Cr12MoV/SKD-11	Cr12MoV/SKD-11	Cr12MoV/SKD-11
Rotating speed	15-24rpm	15-24rpm	15-24rpm	15-24rpm	15-24rpm	15-24rpm
Rotating diameter	200mm	285mm	285mm	320mm	380mm/420mm	480mm
Dimension of shredding room	400*250mm	600*430mm	800*430mm	1000*500mm	1000*580mm/650mm	1000*740mm
Overall dimension	1200*1300*1400mm	2800*1300*1850mm	3200*1300*1950mm	3200*1300*2000mm	4000*1400*2200mm	4500*1500*2400mm
Machine weight	1100kg	2300kg	3300kg	5000kg	6800kg/8000kg	10000kg

Remarks: all information above is only for your information; please contact us for the exact specifications.

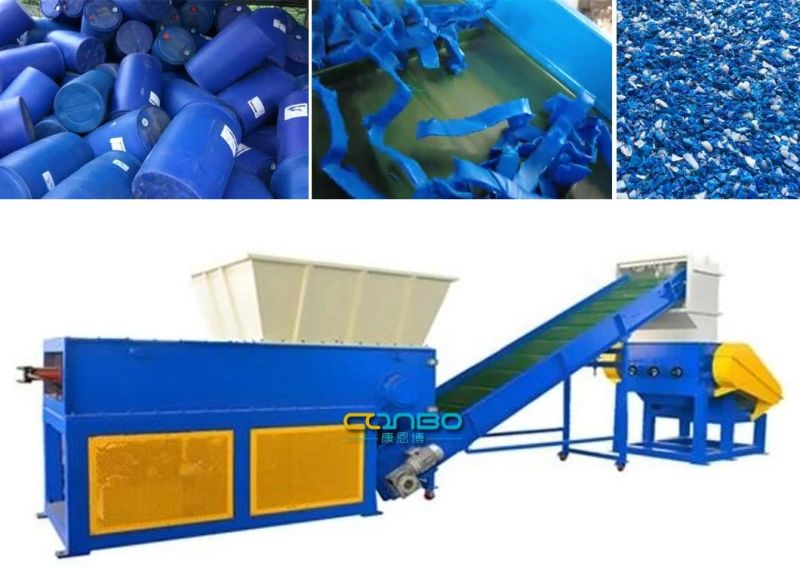

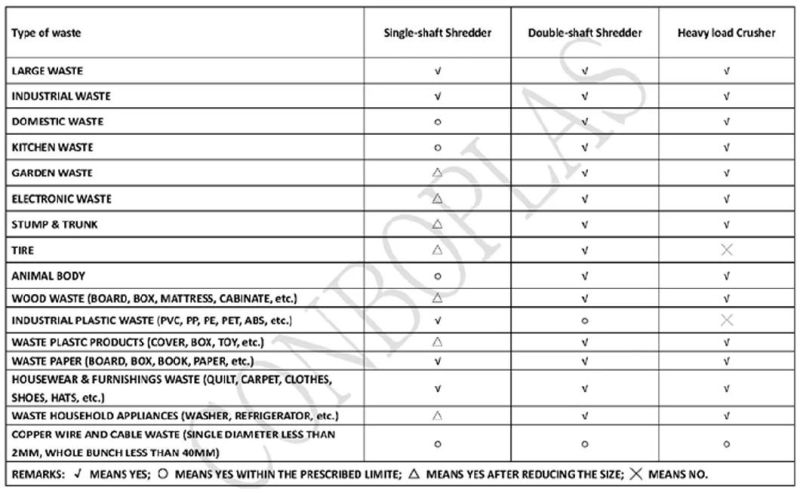

APPLICATIONS:
