• Model NO.：Tp45
• Machine Weight：1800kg
• Certification：CE, ISO9001:2008
• Screw Diameter (mm)：45
• Film Width(mm)：100-500
• Film Thickness(mm)：0.006-0.10
• Max. Extrusion Output (Kg/H)：50
• Die Size(mm)：60,100 High Speed Type
• Main Motor：Siemens Brand
• Inverter：LG Brand
• Temperature Controller：Omron Brand

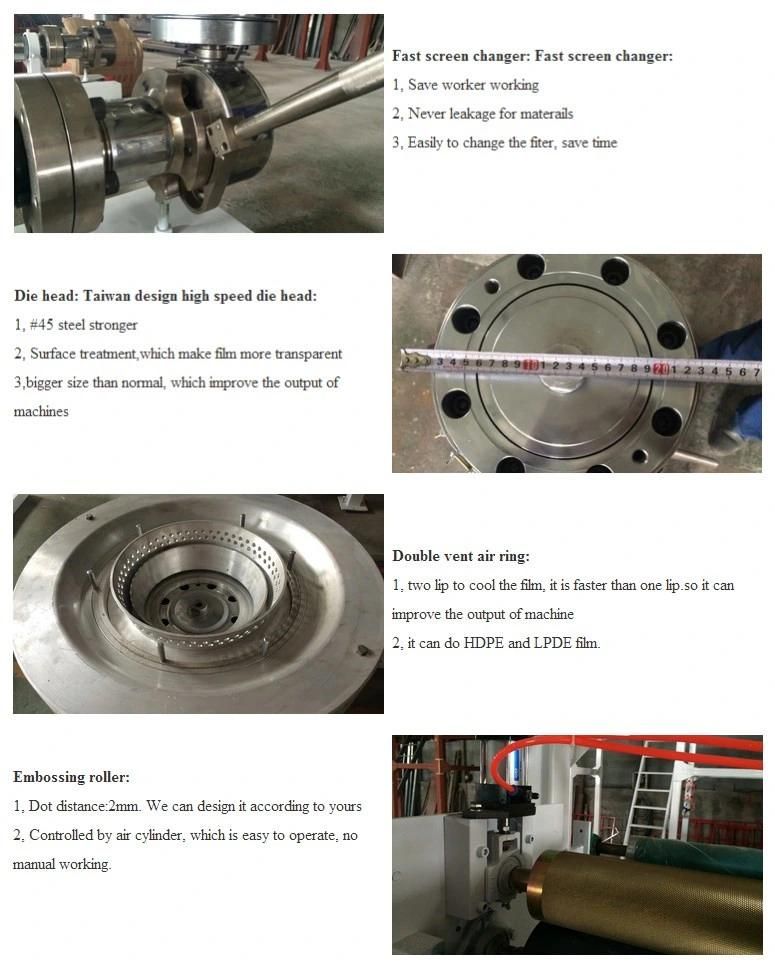

• Screen Changer：Yes
• Air Ring：Double Vent Air Ring
• Transport Package：Wooden Plate
• Specification：500mm
• Trademark：RuiGao
• Origin：Ruian Zhejiang China
• HS Code：847730900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. Tp45 Machine Weight 1800kg Certification CE, ISO9001:2008 Screw Diameter (mm) 45 Film Width(mm) 100-500 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 50 Die Size(mm) 60/100 High Speed Type Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Screen Changer Yes Air Ring Double Vent Air Ring Transport Package Wooden Plate Specification 500mm Trademark RuiGao Origin Ruian Zhejiang China HS Code 847730900 Production Capacity 20 Sets/Month

Product Description

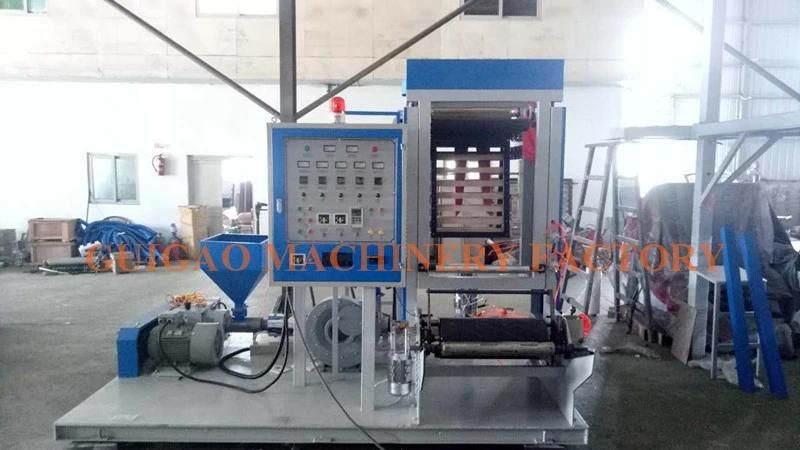

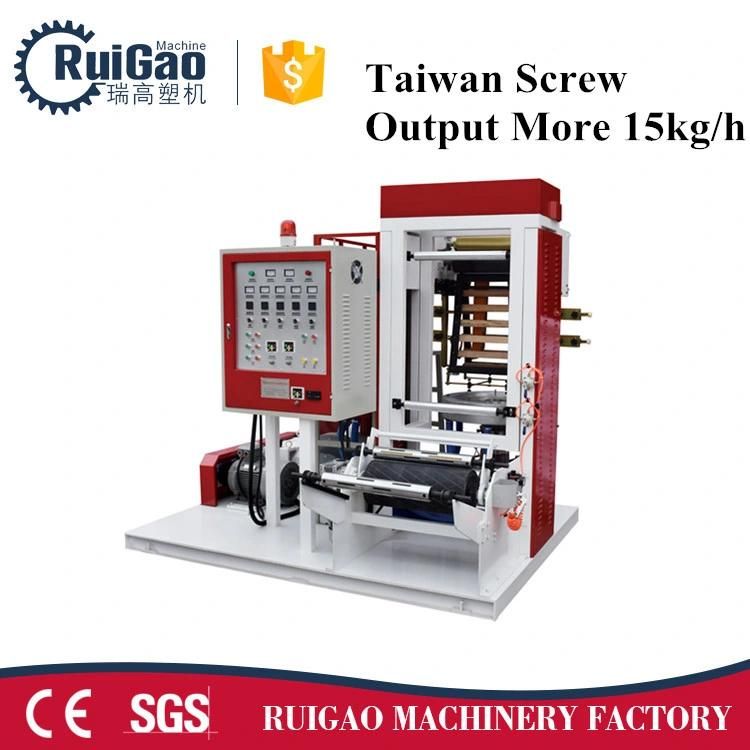

Trusher Bag Film Blowing Machine

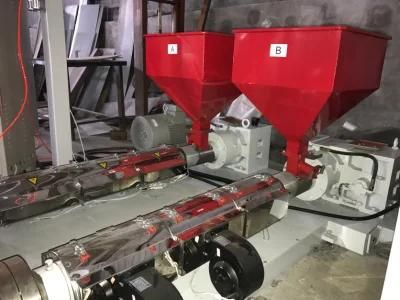

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.



Machine Advantages

1, We use stronger steel plate for machine body, which make machine more stable

2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan

3, Hard surface gearbox, the life can be more 5 years.

4, Motor with CE standard, more 10 years life, Siemens Brand.

5, Electric parts is CHINT, best supplier in China.

6, Easy to operate and one worker can run 3 sets

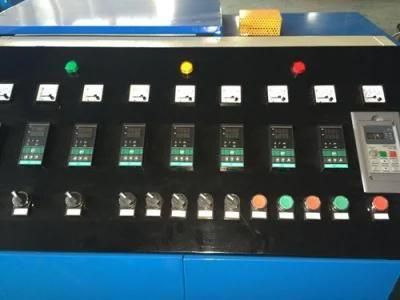

7,  Temperautre Controller:  Omron Brand

8,  Inverter:  LG Brand

9,  Ceramic Heater: Heating faster and Keep warm longer

Machine Parameters

Model	TP45
Diameter of screw	Φ45
Max width of Film	100-500mm
Single-face Thickness of film	0.008-0.10mm
Output	50kg
L/D	30:1
Power of main motor	11kw

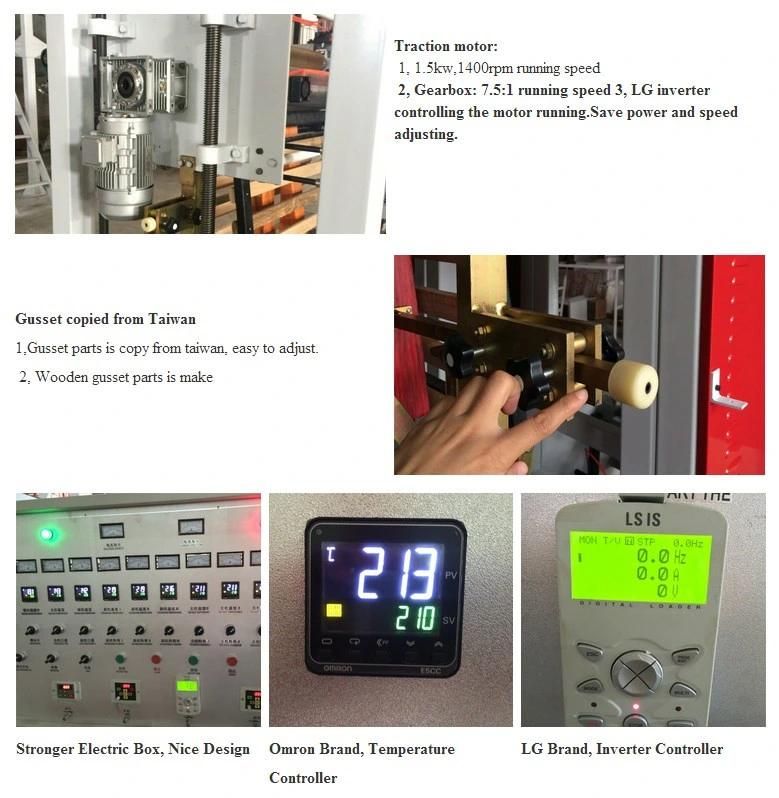

Power of Traction main motor	1.5kw
Total Power	20kw
Outline diameter	2300 x 2000 x 2300mm
weight	1800kg

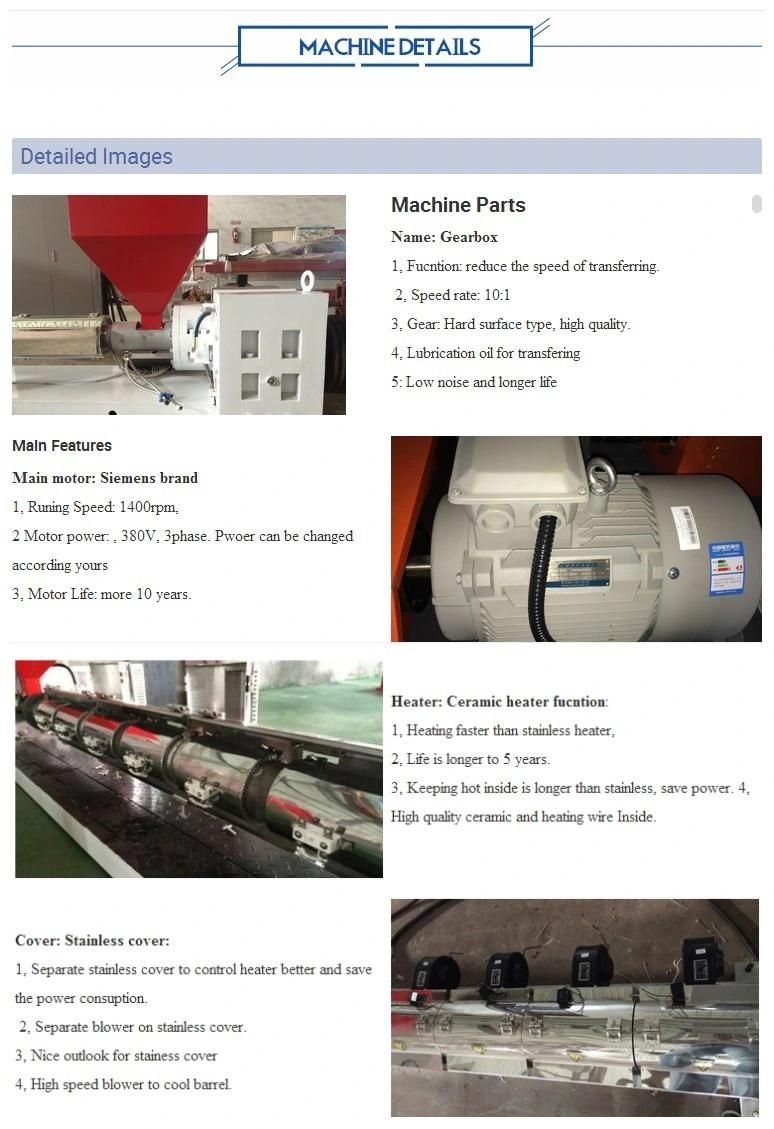

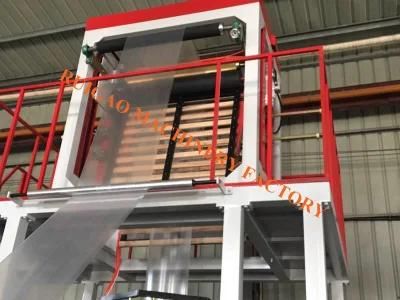

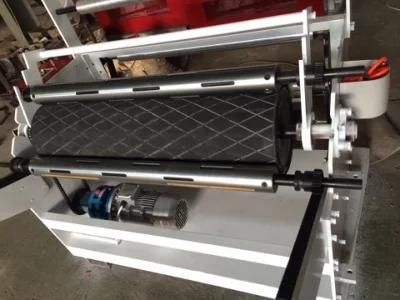

Machine Details







You are welcome to contact with us, we will provide excellent quotation and high quality machine
