PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory ...

Qingdao Weier Plastic Machinery Co., Ltd.
  • After-sales Service：Provide Technical Support
  • Warranty：1 Year
  • Type：Pipe Extruder
  • Plastic Processed：PE
  • Product Type：Extrusion Molding Machine
  • Feeding Mode：One Feed

Base Info

  • Model NO.：sj-120,38
  • Assembly Structure：Integral Type Extruder
  • Screw：Single-Screw
  • Engagement System：Full Intermeshing
  • Screw Channel Structure：Deep Screw
  • Exhaust：Don′t Exhaust
  • Automation：Automatic
  • Computerized：Computerized
  • Power Supply：380V Three Phase
  • Suitable Resin：HDPE
  • Max Line Speed：1100kg,H
  • Max Output：20*4*5
  • Weight：12t
  • Center Height：1000mm
  • Contactor：Siemens
  • PLC：Omron
  • Inverter：Teco
  • Brand：Weier
  • Transport Package：According to Customers Needs
  • Specification：ce iso9001 2008
  • Trademark：WEIER
  • Origin：Qingdao, China
  • HS Code：84772090
  • Production Capacity：89 Sets Year

Description

Basic Info.

Model NO. sj-120/38 Assembly Structure Integral Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Power Supply 380V Three Phase Suitable Resin HDPE Max Line Speed 1100kg/H Max Output 20*4*5 Weight 12t Center Height 1000mm Contactor Siemens PLC Omron Inverter Teco Brand Weier Transport Package According to Customers Needs Specification ce iso9001 2008 Trademark WEIER Origin Qingdao, China HS Code 84772090 Production Capacity 89 SetsYear

Product Description

 PE Gas/ Water Supply Pipe Plastic Making Machine
The high efficiency extruder with forced cooling system ensures high out-put with high running speed.
Easy to adjust and even extruding
Sizing sleeve with unique notch technique notch technique and water circle cooling to ensure molding precision
Advanced PLC computer and touch screen control system
Failure diagnosis function
Friendly man-machine dialogue function
Temperature control modularization and technology parameter storing function.
2.Summary of PE Gas/ Water Supply Pipe Plastic Making Machine (SJ-120X33)
NO.itemparameter
3.2.1suitable resinparameter
3.2.2pipe diameter scopeHDPE
3.2.3line speed200-400mm
3.2.4max output0.2-2m3
3.2.5outer dimension650kg/h
3.2.6weight59*3*3.5m
3.2.7total power22T
3.2.8used power348kw
3.2.9air consumption243kw
3.2.10volume of cycing water0.8m3/min,air pressure:0.2-0.7MPA
3.2.11needed workshop600m2
3.2.12power supply380v±10%,50HZ;controlling power supply:220V±10%
3.2.13water resourceindustral water,inclusionfree,after filtering treatment ,inlet temperature:12-15C°,water pressure:6 bar
3.2.14temperature of working conditions20±

3.Equipment list of PE Gas/ Water Supply Pipe Plastic Making Machine
itemName Quantity
4.1.1Single screw plastic extruder One set
4.1.2Single screw plastic extruder One set
4.1.3Electric applaince controlling system One set
4.1.4Mould and diameter-fixed cover One set
4.1.5Vacuum calibrating device Two sets
4.1.6Spraying cooling water trough Three sets
4.1.7Petrail haul-off device One set
4.1.8Planetary cutting device One set
4.1.9Discharging table One set
4.1.10vacuum material-loading device One set
4.1.11drying device One set
4.1.12ribbon heat transfer printer One set
4.1.13Spares parts One set

4.Processing flow with our  PE Gas/ Water Supply Pipe Plastic Making Machine (SJ-120X33)
Raw material preparation-vacuum feeding machine -hopper dryer- single screw extruder -color code extruder-mould and calibrator vacuum forming machine -cooling tank -haul-off machine -cutting machine- discharging rack.

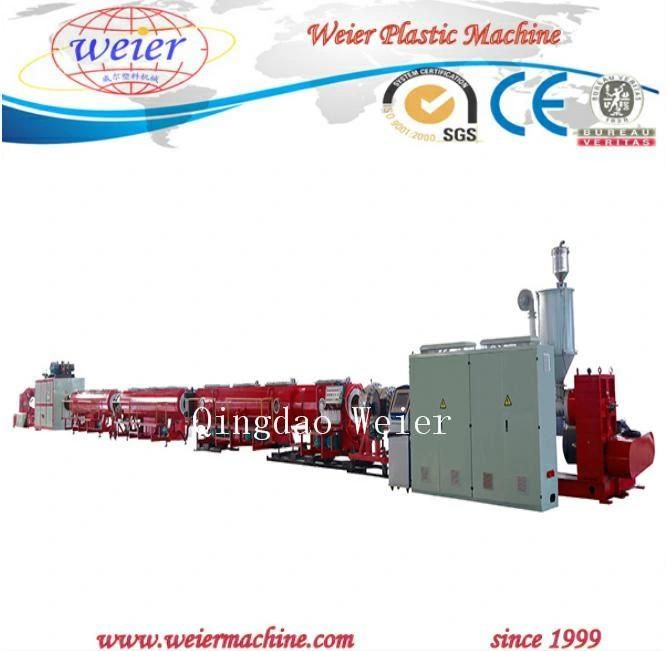

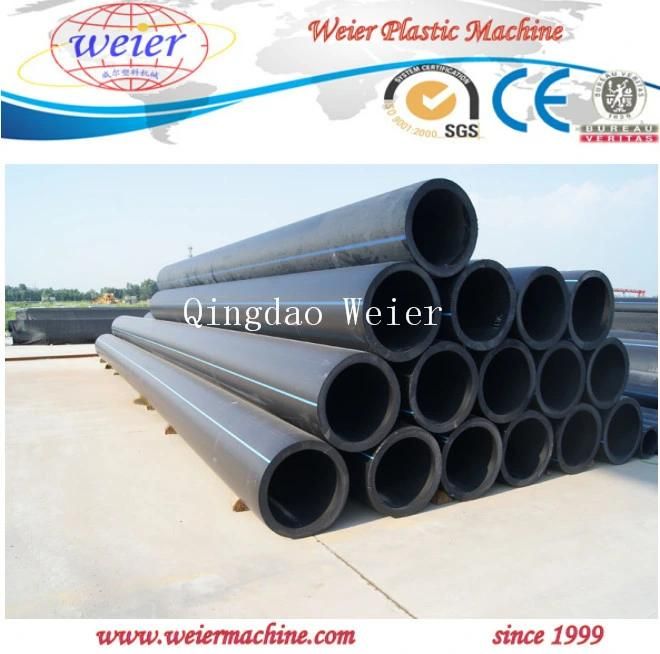

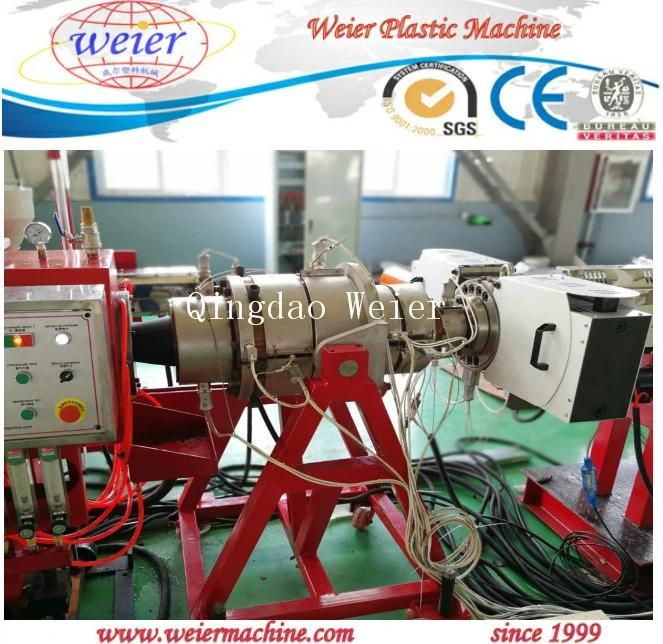

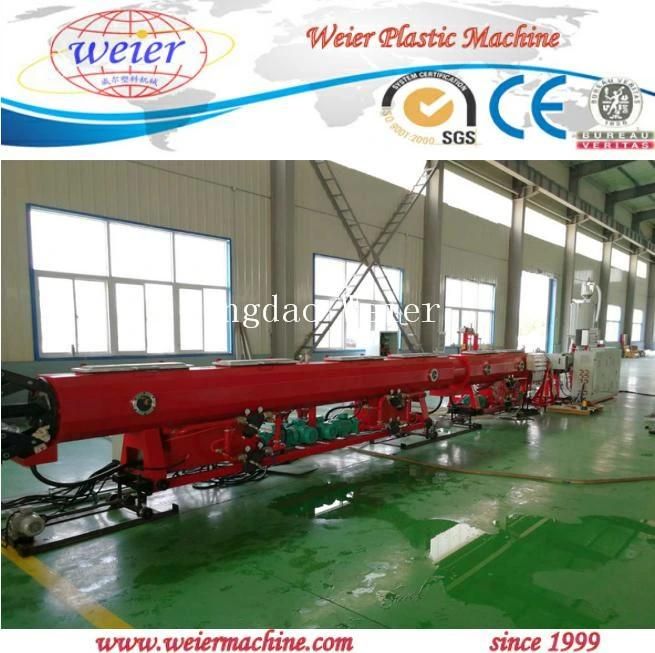

PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory Price

PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory Price
PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory Price
PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory Price
PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory Price
PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory Price
PE HDPE Plastic Pipe Making Machine Extrusion Line (SJ-90/38) with Certification Factory Price
Qingdao Weier Plastic Machinery Co., LTD (click here for company video and other information) is a professional manufacturer who is devoted to macromolecule science and plastic machinery and equipment, is the director member of WPC (Plastic &Wood Production Council of Chinese Plastic Community), now we are Plastic Engineering Technology Research Institute of Qingdao Science and Technology University Test and Industrialization center.

We cooperated with many domestic universities to develop special plastic machines to meet domestic and foreign customer's requirement and have a strong association with many macromolecule and chemical majors of many universities. At the same time we bring in and absorb advanced processing engineering of foreign plastic machines to realize chain service of technique and machines.

We have supplier assessment report for alibaba's 7 year's gold member with high fame from both home and abroad.
