• Model NO.：CHSJ-PC
• Machine Weight：2.2ton
• Certification：CE, ISO9001:2008
• Model：Chsj--PC45,55
• L/D Ratio of Screw：L,D 30:1
• Main Motor Power：30kw
• Maximum Capacity Kg/H：75-100kg,H
• About The Machine Weight：75012000kg
• Transport Package：Wooden Cases
• Specification：SGS
• Trademark：CHENGHENG
• Origin：China
• HS Code：8477309000
• Production Capacity：100PCS,Year

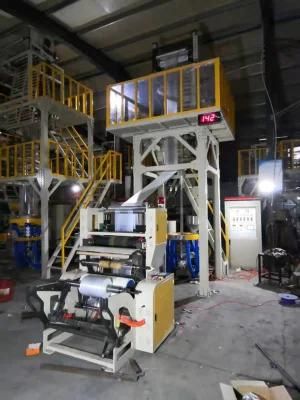

Model
 PC-45/900   PC-55/1300Width of the film
 400-800mm  500-1200mm
 Thickness of the film0.006-0.08mmThe max output75kg/h  100kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialPP/LDPEPower consumption40kw/h   60kw/h  Weight7500kg   12000kgExtruder unitDiameter of screw
 Φ45×3    Φ55×3
38CrMoALA  wearproof Alloy steel,five years guarantee
 L/D ratio of screw
 30:1Rotation speed of screw
 10-120r/mBarrel Fan
 Zone 3 barrels install over-temperature fanGear box146#   200#
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation system
 Main motor  15kw×3  22kw×3
100% Original three-phase variable frequency motor  Equipped with inverter control
 Die head unitDie diameter350mm   250mm
With 40Cr steel forging finishing, Uniform flow channel,blown plasticizing effect
 Cool unitAir ring type
 PPSingle outlet air ringAir ring material
 High quality Taiwan cast aluminum alloy air ringBellow power
 1.5kw  4kw   2.2kw
Shanghai production of high-pressure mute fan
 Traction unitWidth of take up roller
   900mm   1300mm  Traction roller material
 silicone roll
 Take up motor
 1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter control
 Take up speed
 100m/minEmbossing roller
 hot embossing unit
cold embossing unitLambdoidal board
 Stainless steel perforated plateGusset equipment
 Modular rack type
Independent Split Bubble stabilizing ring
 Electric aluminum roller guide
Manual wood floor Guide rollerAluminum guide roller (HV300-HV700) surface treatment
 Winding unitWinding type

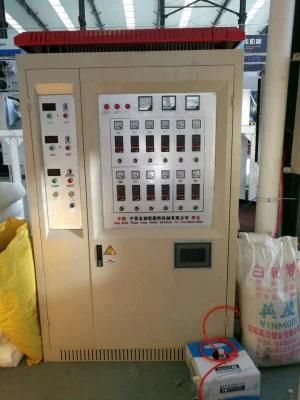

 Double center winding machineDrive typeTorque motor equipped RV reducerFilm expanding rollerSmoothing rollElectric control cabinetlow-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control table
 Computer control type7-inch touch screen + process control system
Automatic air supply device


Service
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.Five years free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours
