• Model NO.：CP1046
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Non-Computerized
• Usage：Wire and Cable Coiling for 100m
• Wire Diameter：BV1.5~6mm2 BVV,Bvr4~6mm2
• Place of Origin：China
• Application：Coiling of BV,Rvv Cable
• Rolling Speed：780 Rpm Max
• Transport Package：Plastic Film+Wooden Packing
• Origin：China
• HS Code：8479400000
• Production Capacity：200set,Year

Basic Info.

Model NO. CP1046 Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Non-Computerized Usage Wire and Cable Coiling for 100m Wire Diameter BV1.5~6mm2 BVV,Bvr4~6mm2 Place of Origin China Application Coiling of BV,Rvv Cable Rolling Speed 780 Rpm Max Transport Package Plastic Film+Wooden Packing Origin China HS Code 8479400000 Production Capacity 200set/Year

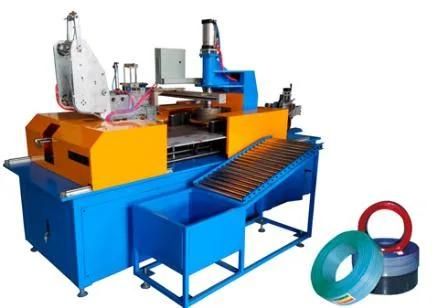

Product Description

1.Application:
 1-1.Horizontally coiling wires from an extrusion line or pay off line..
 1-2.Wire diameter: Please sees last page of this technical information.
2.Specification:
   2-1. Power: 380V AC, three-phase, 50Hz, or specified by the customer.
   2-2. The operation direction: right (Cable feeding from left side), or custom by the customer.
    2-3.Application:  BV1.5~6mm²    BVV,BVR4~6mm².
    2-4.The rolling speed: 780 RPM Max.
    2-5.Coil size:
  §The outer diameter of coil 400mmMax. Height is 40~100mm;
  §The inner coil diameter base on coil head size: ψ140~200mm(fixed size).
  §Choose one model by the customer. The size of the range shall be specially designed, and shall be determined by our company for its feasibility.
  2-6. Packaged cable: hold line type.
 2-7.Length measure unit: Measure unit 0.01M, coiling speed automatic deceleration, automatic measure length,cut,coiling etc.
  2-8.The cable coil route control device: control by servo motor and synchronization with coiling head.
   2-9. all the electric circuit control: using programmable controller (PLC).
   2-10. the operation panel is man-machine interface.

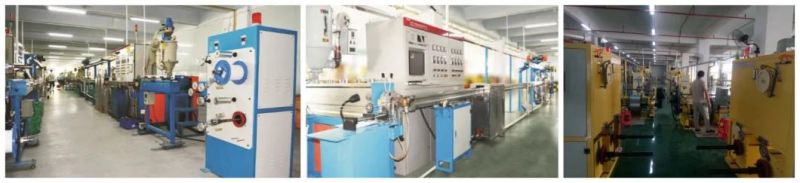

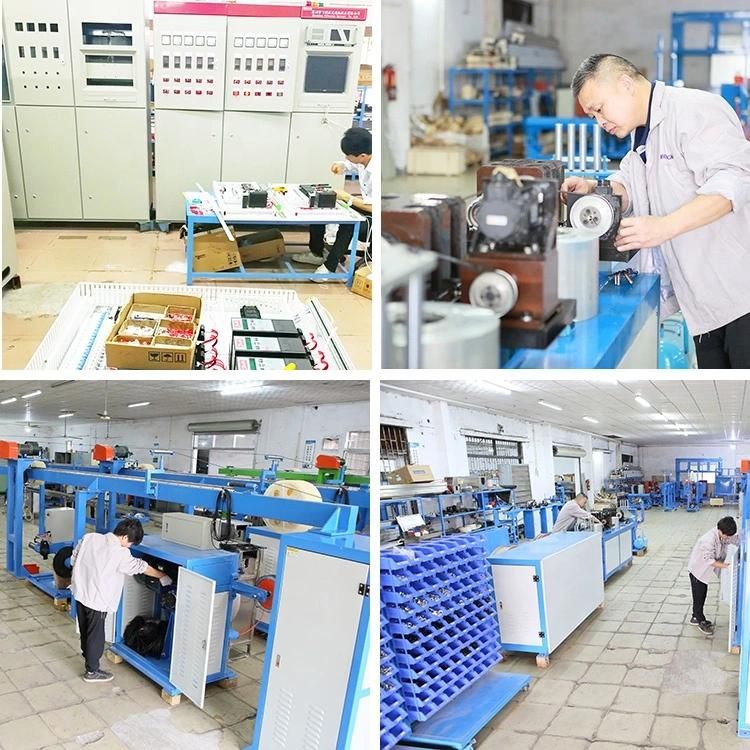

Production Process:

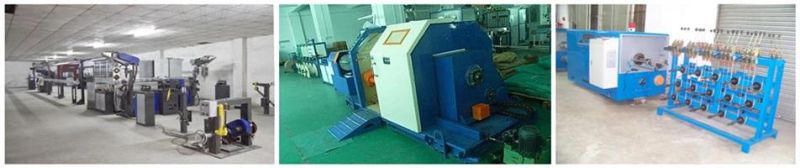

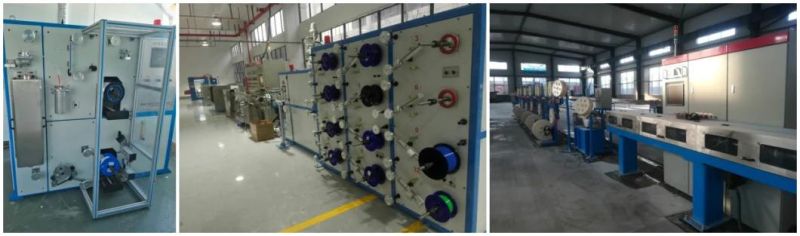

Our main products:


What we can do for you ?


Delivery and packing
