Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Shandong Hightop Group

Raw Material：Two Components Polyurethane & Polyurea
Principle：High-Pressure Air Type

Base Info

Model NO.：CNMC-300
Automation：Automatic
Computerized：Computerized
Certification：CE, SGS
Voltage：220V,380V 3 Phase
Max Working Pressure：17MPa(170bar)
Whole Power：15kw
Driven Mode：Hydraulic
Raw Output：2-24kg,Min
Transport Package：Wooden Case,Box
Specification：1.3CBM, 350KG
Trademark：CNMC
Origin：Shandong, China
Production Capacity：100sets,Month

Description

ModelCNMC-500CNMC-300Power source220V/380V 3 phase 50Hz220V/380V 3 phase 50HzWhole power17KW15KWDriven modehydraulichydraulicAir source0.5~0.8 MPa ≥0.25³/min0.5~0.8 MPa ≥0.25³/minRaw output2~24 kg/min2~24 kg/minMaximum working pressure17Mpa(170bar)25Mpa(250bar)AB material output ratio1:11:1 Standard configuration:
1. 1 set spray gun

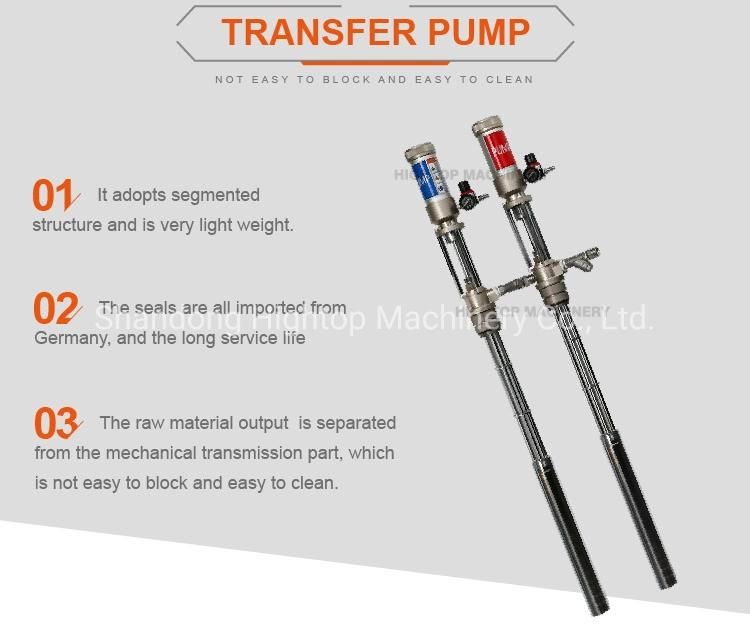

2. 2pcs transfer pump
3. 15m heating hose
4. Spare parts and tools
5. User manual book
6. Wooden box/case package

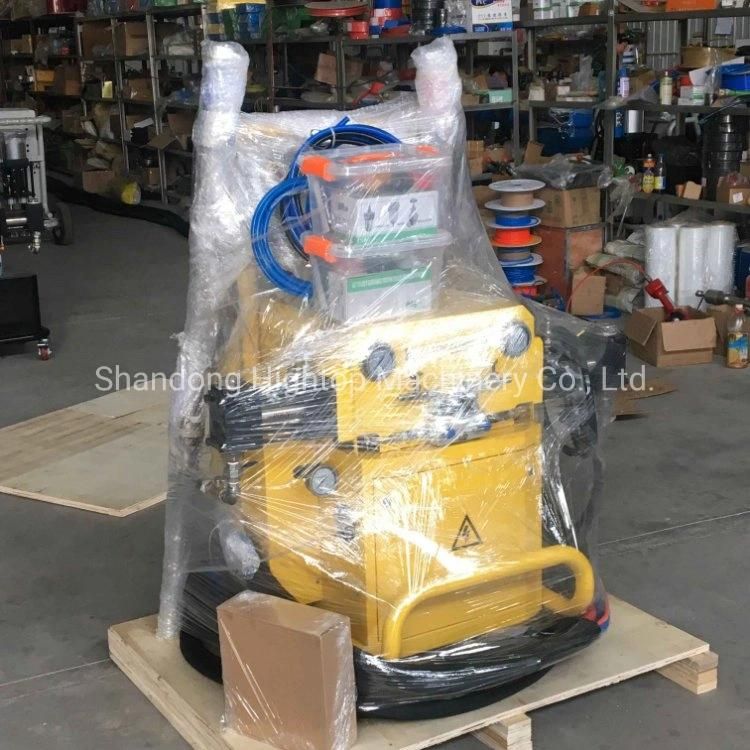

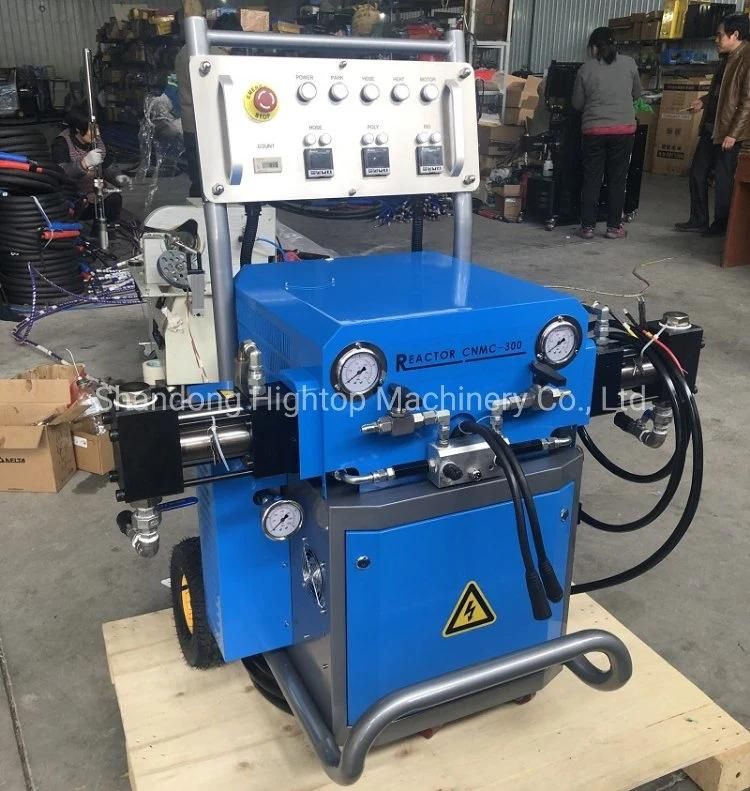

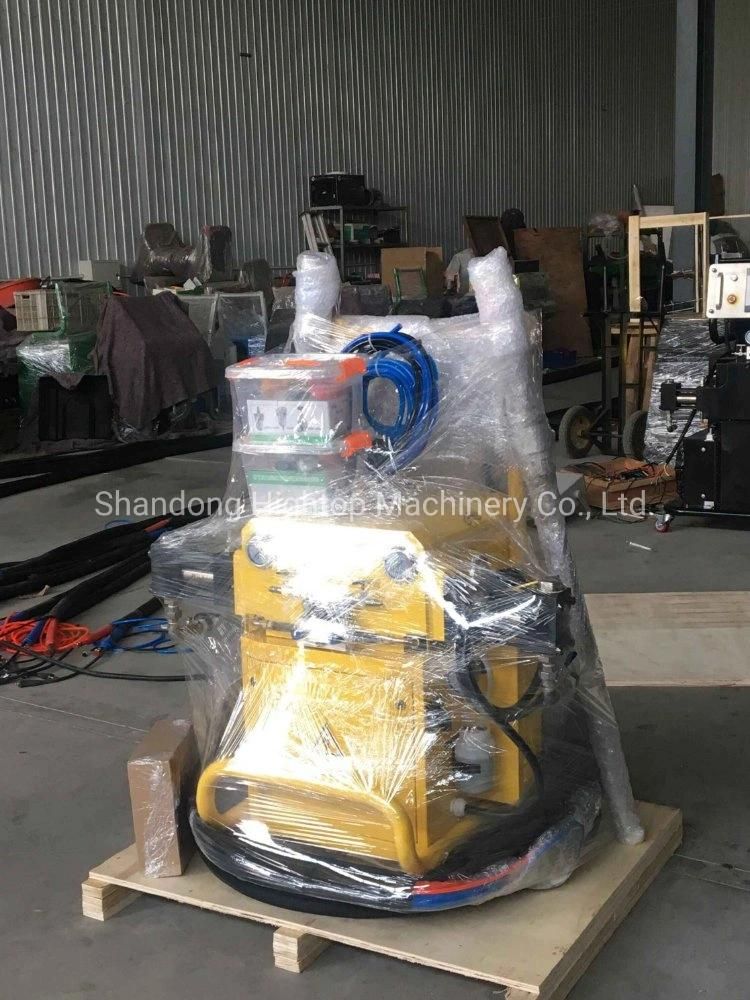

Detailed images of the machine:
Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

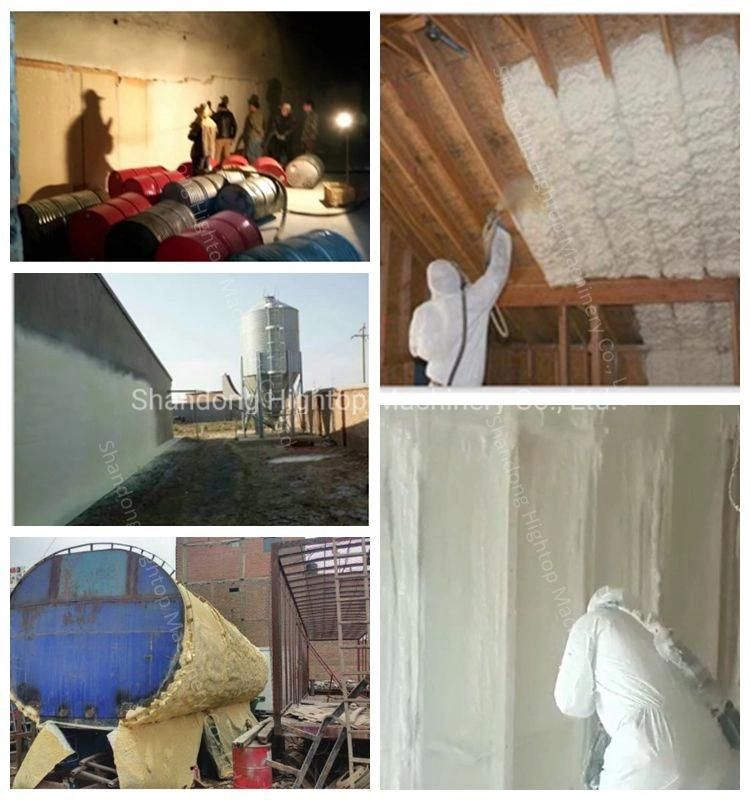

Appliactions of the machine:

1. Polyurethane Pu foam insulation spraying:
Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

About Us:
Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Portable Polyurethane Spray Foam Machine for Construction Farm House Insulation

Contact Us:
For more inforamtion, please send us inquiry or contact us!
Sales manager: Ms. Kelly Wang
