6 Cavity Automatic Juice Bottle Blowing Molding Machine

Zhangjiagang Glory Machinery Co., Ltd.
  • Type：Stretch Blow Molding Machine
  • Automatic Grade：Automatic
  • Speed：3000bph
  • Cavity：6
  • Max Bottle Size：1500ml
  • PLC：Mitsubishi

Base Info

  • Model NO.：GM-6H
  • Raw Material：Pet
  • Making Method of Parison：Stretch Blow
  • Automation：Automatic
  • Computerized：Computerized
  • Transport Package：Wooden Block
  • Specification：6Cavity
  • Trademark：GM
  • Origin：China
  • HS Code：8477301000
  • Production Capacity：100sets,Year

Description

Basic Info.

Model NO. GM-6H Raw Material Pet Making Method of Parison Stretch Blow Automation Automatic Computerized Computerized Transport Package Wooden Block Specification 6Cavity Trademark GM Origin China HS Code 8477301000 Production Capacity 100sets/Year

Product Description

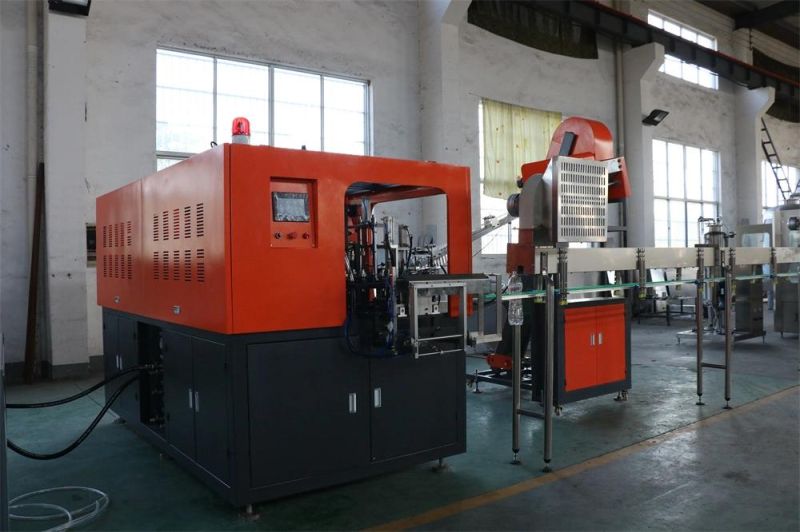

6 Cavity Automatic Juice Bottle Blowing Molding Machine

6 cavity automatic juice bottle blowing molding machine for hot filling juice

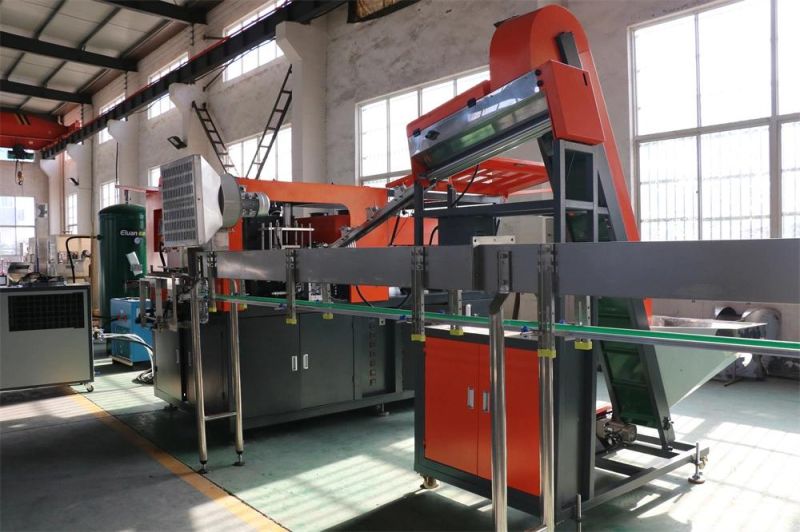

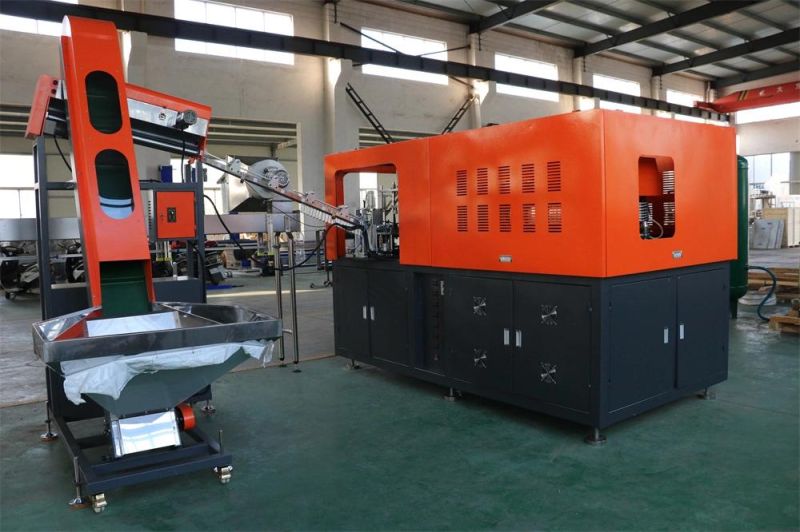

PREFORM LOADING
Performs put into loading hopper, then the conveyor raise the performs to perform unsbreller, hence the performs will be arranged well on the guider. The performs will go into equipment automatically. This type of loading complete automatic control, high efficiency without damage to performs.

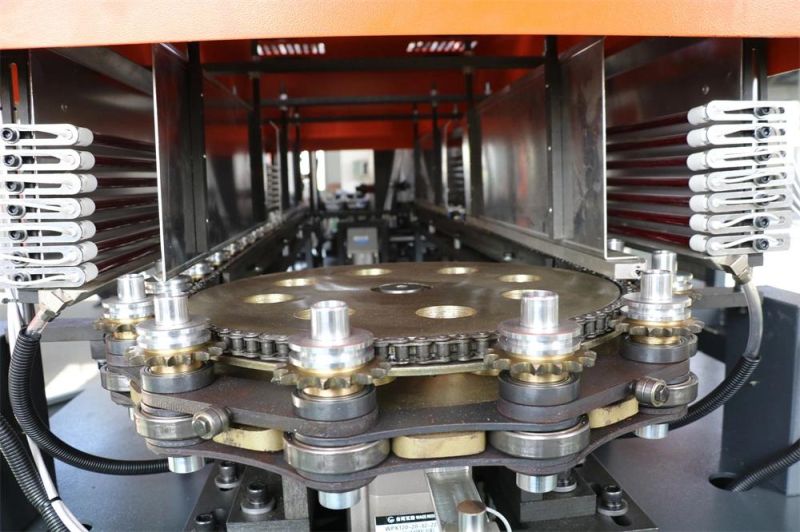

HEATING ADJUST
The heating head will receive performs automaticly and continuously, and performs average round self running, can get suitable reasonable heating when moving through heating area. Blowing machine adopts to far infrared heating controlled by silicon, every line of the lamps can control temperature independently. If lamp no electric, machine will alarm test automaticly. The air flow in heating area, and the perform neck protection device both designed precisely, in this case, perform can get ideal temperature heating, also bottle neck no influence. If necessary, temperature testing device can help adjust temperature automaticly. Each class of the heating temperature showed on the meter, easy look, easy operate.

 STRECH BLOWING
PLC can control the mould frame open and close precisely. Easy and stable mould frame structure, lead to easier mould changing. Mould locking and pressure enlarging system is special. Blowing data of each cavity is controlled by touch screen very easier, it has good testing function. The special structure of the blow mouth ensures stable sealing no matter different blowing pressure, and also ensures finished bottle rate.

 BOTTLES EJECTING
After blowing, robot hand will take finished bottles automatically and test bottles, if bottles not well automatically knick out.

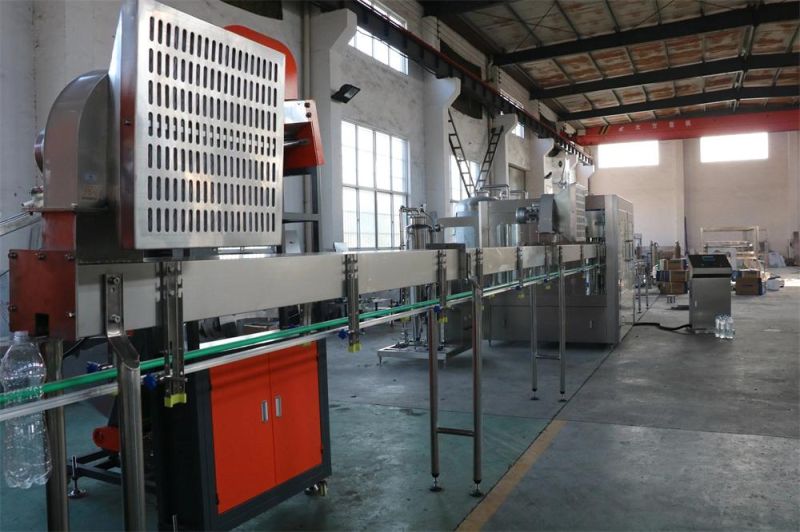

This ensures the continuously production. The bottles convey to filling machine by air conveyor.
ITEMGM-6H
Theoretical output3000
Max.container volume1.5L
Max.neck diameter38MM
Max.container diameter120MM
Max.container height250MM
Number of cavity6
Number of lamp24
Max.heating power90KW
Installation power100KW
Actual power consumption50KW
Operatating low pressure0.8-1.0Mpa
Low pressure consuming2000L/min
Blowing pressure2.5-3.5Mpa
High pressure consuming2.8~3.5m3/min
Operating pressure0.3-0.5Mpa
Temperatuer-10ºC~55ºC
Flow rater50L/min
Machine dimension4.25×1.5×2.2
Machine weight5000Kg
