Mini Economic Plastic T-Shirt Film Blowing Machine

HEBEI CHENGHENG PLASTIC MACHINERY TECHNOLOGY CO., LTD.
  • Type：PE Film Blowing Machine
  • Raw Material：LDPE HDPE LLDPE
  • Maximum Folding Width of Film：600mm
  • Screw Diameter：45mm
  • Automation：Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：CHSJ-ME2
  • Machine Weight：1400kg
  • Certification：CE, ISO9001:2008, BV
  • Clor：Red, Green, White
  • Delivery：Quick
  • Grade：Power Saving
  • Speed：Quick
  • Standard：Light
  • Material：LDPE, PP, PVC, HDPE LLDPE
  • Quality：High
  • Transport Package：Wooden Box or Plastic Film
  • Specification：2.2x1.4x2.2
  • Trademark：ChengHeng
  • Origin：Ningjin, Hebei, China
  • HS Code：847730000
  • Production Capacity：30 Sets Per Month

Description

ModelME-40/500  ME-45/600Film width

  1. Film thickness0.006-0.10mm0.006-0.10mm max output30g/h                  35kg/h
    According to different width,thickness of film,
    die size and raw material characteristics to change
     Raw materiaLDPE/LLDPE/HDPE/RECYCLE/CACO3Diameter of screwΦ40 Φ45  SACM 645 ,bimetallic ,five years guarantee
     L/D ratio of screw
     30:1 Main motor7.5kw    11kw
    100% Original three-phase variable frequency motor  Equipped with inverter control
     Take up roller(mm)500mm 600mmWeight1300kg  1400kgMachine size2.2×1.4×2.2


     Optional Device:
    1:EPC device  not necessary
    2:Automatic edge recycling system
    3:IBC COOLING SYSTEM
    4:Germany film thickness and width control system
    5:IBC COOLING SYSTEM
    6:OSCILLATING TAKE UP UNIT
    7:HEATING SLITING SYSTEM
    8: GRAVIMETRIC DOSING UNIT
    9:Automatic Double winder with slitting knife with PLC
    10: Mick computer controller
    11: faster change filter
    12: 360 rotary diehead

    Packaging & Shipping
    Mini Economic Plastic T-Shirt Film Blowing Machine

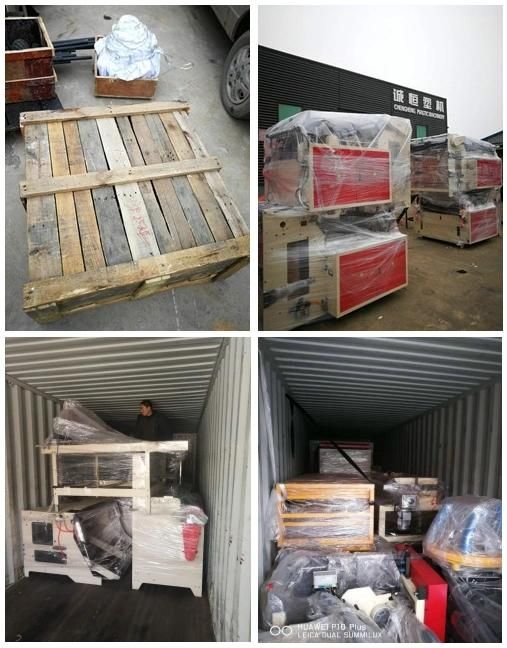

    Package: the machine could be packed by film or wooden boxes.
    Shipment: from tianjin,China port to destination port

    About us:
    1) All Our Machines with CE BV SGS and ISO certificates
    2) Machines exported to Sauid , USA, UAE, Mexico, Africa,Vietnam,Thailand,Jodan and so on
    3) All machines will be examined and test before delivery
    4) Offer you skillful knowledge on machines and If you need, engineer will help you train workers how to operate
    5) Guarantee for five years , Long Life Services
