• Model NO.：SJSZ-80,156
• Customized：Customized
• Condition：New
• Glazed Tiles Width：1040mm
• Glazed Tiles Thickness：1-3mm
• Application：Roofing Tiles Outdoor
• Extruder Model：Sj-80,156+65,30
• Extrusion Capacity：400kg,H
• Installed Power：176kw
• Extrusion Speed：0.3-5mm,Min
• Raw Materia：PVC, ABS, Asa, PMMA etc
• Main Electrical Parts：ABB, Omron, Rkc, Schneider, FUJI, Delix etc.
• Guaranteed Time：12 Months
• Transport Package：Wooden Case or Other Moistureproof Packages
• Specification：1040mm width
• Trademark：Leader Machinery
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：22 Sets Per Year

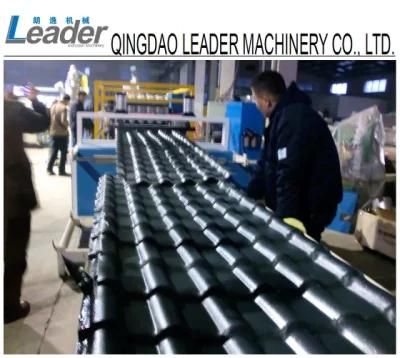

PAR T1  THIS LINE CONSISTS OF (COMPULSORY)1Extruder modelSJSZ80/156 + SJ65/302Capacity350kg/h+50kg/h3Sheet specificationsWidth: 720/880/1040mm
Wave pitch:160mm
Wave length:220mm
Wave height:30mm
Thickness:1-3mm4Emboss rollers1400mm*Φ300mm5T-die headJC-Times brand6Corrugation forming machine max haul off power20KN7Haul off speed0.3-5m/min8Cutting machinePneumatic saw cutting9Stacker6m10Ridge tiles forming machineWith end cover, slope ridge for step roof, T ridge for step roof, top ridge for step roof PART 2  ACCESSORY MACHINE PARTS (OPTIONAL)11High speed hot and cold mixer1 set12Plastic crusher1 set13Plastic pulverizer1 set14Air compressor1 set15Industrial water chiller1 set PART 3 SHEET SPECIFICATIONS1Sheet width720/880/1040mm2Sheet thickness1-3mm PART 4 SHEET APPLICATIONS1The glazed roofing tiles are wised in the garden-style factory, tourist scenic spots, pavillions, hotels, family building etc. PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES1Payment terms40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable2Delivery time60 days after receipt of prepayment3Packing methodWooden cases/pallets with stretching films4Guaranteed time18 months for mechanical parts, 12 months for electrical parts5After sale serviceSend 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable6ContactMs Lilly Zhou (mob: 0086-15266238607)
 PACKAGING & SHIPPING:Qingdao Leader Machinery Co.,ltd  will help you calculate the detailed dimension and the number of Container. And we promises delivery the machine within  duration. It is based on our experience of manufactruing machine and management.

COMPANY CERTIFICATIONS:



OVERSEA TRADE SHOWS:

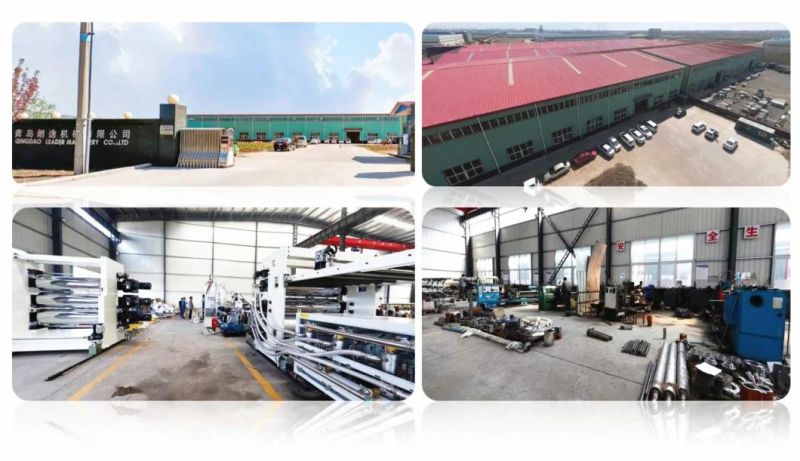

COMPANY INFORMATION AND MAIN PRODUCTS:


CONTACT DETAILS:

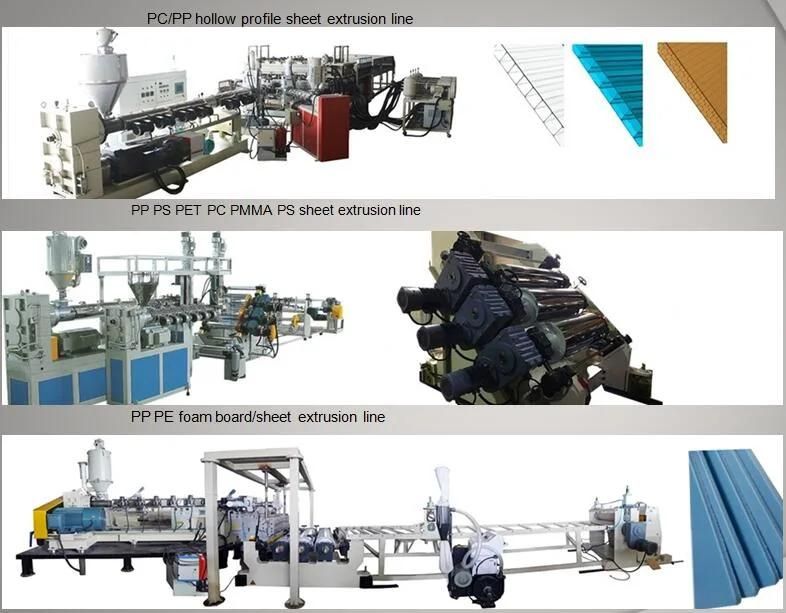

OTHER RECOMMONDED PLASTIC SHEET EXTRUSION LINES:
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 350-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 600-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 500kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 300kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.


10. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
