• Model NO.：TSE SERIES
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Color：as Required
• Motor Design：AC
• Material of Screw and Barrel：High-Speed Steel W6mo5cr4V2
• Screen Changer：Hydrulic
• Transducer：ABB Imported From Switzerland
• Application：Granules
• Warranty：1 Year
• Screw Material：Stainless Steel
• Packing Type：Wood Case
• Transport Package：Wood Case
• Specification：CE ISO9001
• Trademark：Nanjing kairong
• Origin：China (Mainland) Jiangsu, Nanjing City
• HS Code：84772090
• Production Capacity：300 Sets,Year

Basic Info.

Model NO. TSE SERIES Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Color as Required Motor Design AC Material of Screw and Barrel High-Speed Steel W6mo5cr4V2 Screen Changer Hydrulic Transducer ABB Imported From Switzerland Application Granules Warranty 1 Year Screw Material Stainless Steel Packing Type Wood Case Transport Package Wood Case Specification CE ISO9001 Trademark Nanjing kairong Origin China (Mainland) Jiangsu, Nanjing City HS Code 84772090 Production Capacity 300 Sets/Year

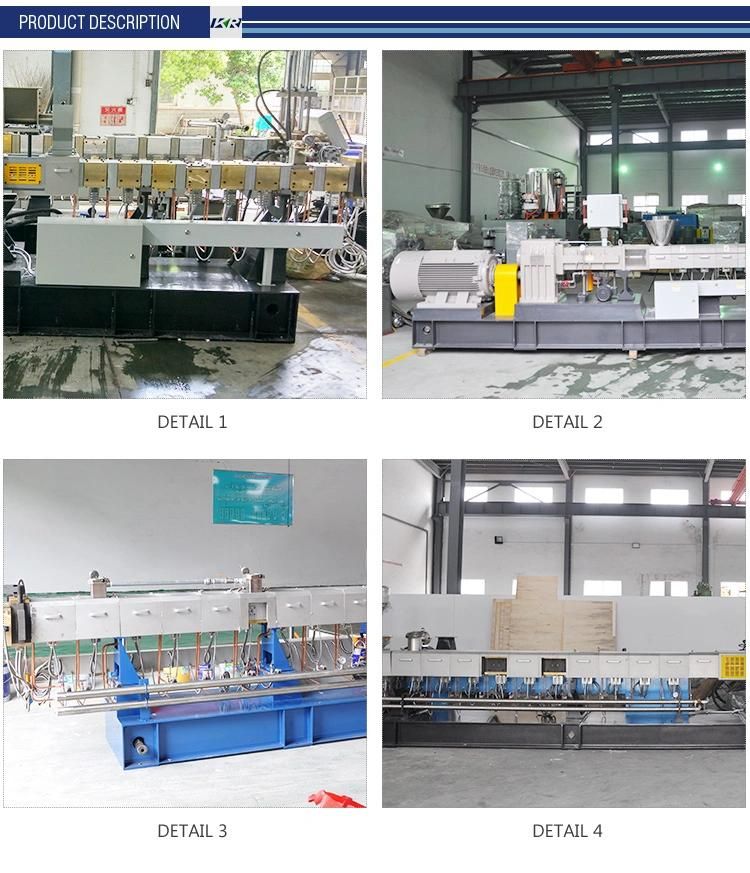

Product Description

PVC Plastic pelletizing hot cutting extruder granulation machine

Production Description



 Technical Data

Model	Diameter	L/D	Screw Rotary	Main Moter	Torque	Torque level	output
TSE-75A	71mm	32-64	500r/min	110kw	1050  N.m	4.8 T/N³	300-420kg/h
TSE-75B	71mm	32-52	600r/min	132kw	239    N.m	5.8 T/N³	350-550kg/h

Application


a. For high filling masterbatch : PE/PP/EVA ,+ Caco3, Tio2, Talc,Carbon Black , etc;
b. For fiber reinforcement: PP/PA/PBT/ABS/AS/PC/POM/PPS/PET +glass fiber, carbon black ;

PE + 85% Caco3;
Including High speed mixer for mixing PE+85% Caco3+ addictives; Screw loader for loading materials ; Extruder for extrusion;  Air cooling hot face cutting  pelletizing line for cooling and cutting ;


PP +70% Caco3 ;

High speed mixer for mixing PE+ Caco3+ Addictives; Screw loader for loading materials , Extruder for extrusion; Water ring hot face cutting pelletizing line for cooling and pelletizing ;


Glass fiber reinforce : PP/PA/PA66/PA6+ Glass fiber with side feeding




The Characteristics of The TSE-75  polyester fiber making machines

1.The gearbox
·  New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.
· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.
2.The feeding system
· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.

3.Screw
· The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4.The barrel
· Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.
· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
5.The heater
· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.
6.Pelletizing
· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.



 Our service


Before-sale
Introduce products in details
Recommend suitbale solution
Offer test

During  manufacturing:
Provide layout and engineering conditions
Offer screw plan and related documents
Inform the project processing status
Insure the product designed in accordance with technical document

After-sale:


Provide installation,commissiong and training
Offer spare parts
Provide necessary technical support and update information

1.Quality guaranteed

2.Support  factory visit

3.Technology supports


FAQ
1. Q: How can we go to your factory?

    R:Our factory is located in Nanjing jiangning, Jiangsu Province, China,



      1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company



      2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company



          All our clients, from domestic or abroad, are warmly welcome to visit us!



2. Q: Why chose us?

    R: 1)Quick reply. Once we received the inquiry from Alibaba, we will reply you within 24hours.

         2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.

         3) Before delivery, the machine will be tested to ensure every part is ok.

         4) Wooden case package to ensure no damage during shipping.



3.Q:What is the payment?

    R: 1) T/T payment;   2) LC;
