Cnmc-500L Hydraulic-Driven Polyurea Spray Machine Foam Insulation Spray Machine

Shandong Hightop Group
  • Raw Material：Polyurea
  • Principle：Hydraulic Air Type

Base Info

  • Model NO.：CNMC-500L
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE
  • Driven Mode：Hydraulic
  • Raw Output：34kg,Min
  • Maximum Output Pressure：18 MPa
  • Heater Power：6kw Each Side

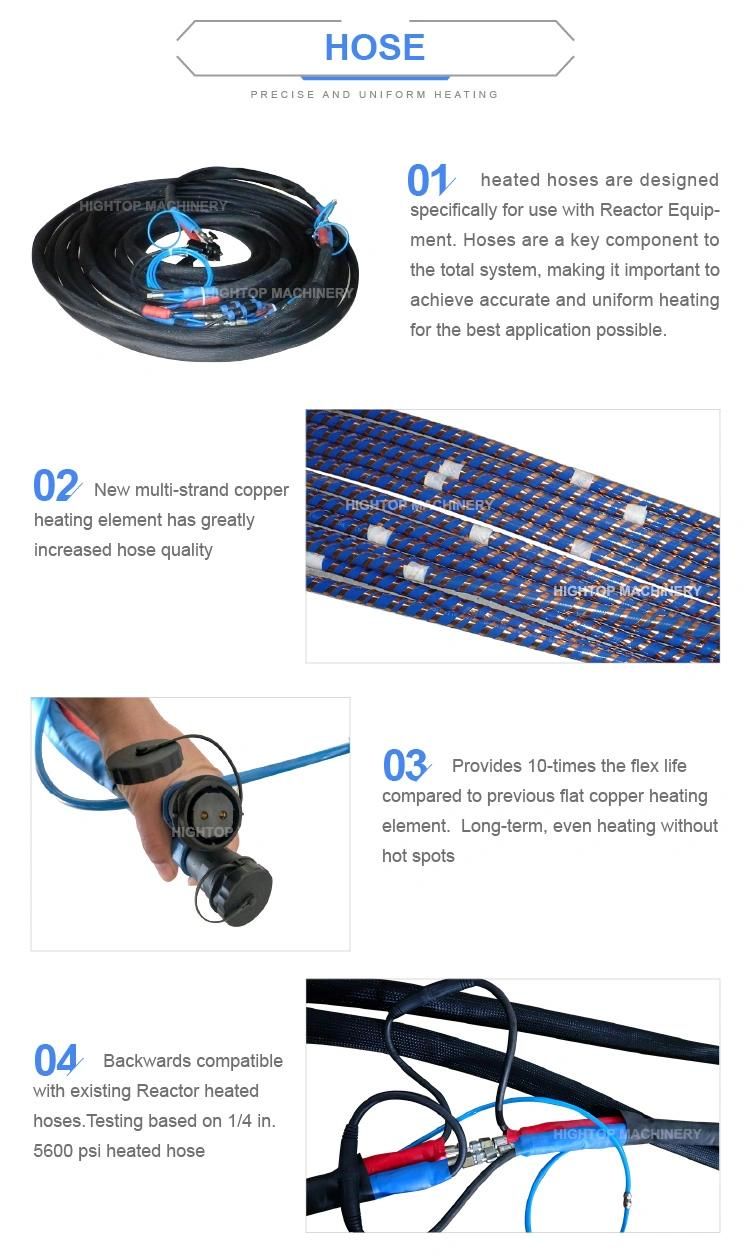

  • Heating Hose Power：1kw,15m
  • Max Fluid Temperature：E: 88°c (190°f)
  • Max Hose Length：120meter
  • Application：Walls, Truck, Swimming Pool, Water Tank, School R
  • Weight：350kg
  • Power(W)：25 Kw
  • Transport Package：Wooden Case
  • Specification：1080*860*1360
  • Trademark：CNMC
  • Origin：China, Shandong
  • Production Capacity：500,Month

Description

Technical DataThe ratio of raw material: 1:1(Fixed)The viscosity range of raw material: 200-1000CPS (Under the operate temperature)Max Working pressure: 35 MPa (200 bar)Max fluid temperature: 88°C (190°F)Max Output: 24kg/minHeating hose power: 2000W*2Max hose length: 120m (393 feet)Whole power: 18KWVoltage: 380V/220V 3-phMachine size: 1100mm*780mm*1360mmGross weight: 350KG
