HDPE/PE/PP/Pert/PPR/PVC Water Supply/Drainage Pipe Extruding Machinery, Polyethylene Pipe ...
Qingdao Sincere Machinery Co., Ltd.- Warranty：1year
- Product Type：HDPE Pipes, Waterpro Pipes
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, TUV
Base Info
- Model NO.：65, 75, 90, 120, 150, L|D 33 or 38
- Customized：Customized
- Condition：New, Under The Order
- After-sales Service：Send Engineers Install and Test Machine
- HDPE Pipe Types：Solid Wall, Single Layer, Three Layers Composite
- Pipe Prodution Speed：0.01-30m,Min
- Processing Period：40-60 Working Days
- Technical Support：Permanent
- Prepayment：30% Before Production, 70% Balance, Tt
- Delivery Time：30-45days
- HDPE Pipe Applications 2-1：Water Supply, Marine Line, Insulated Casing Pipe
- HDPE Pipe Applications 2-2：HDPE Irrigation Pipe Production Line

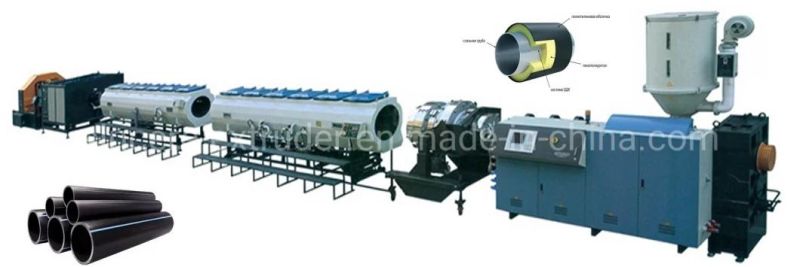

- HDPE Pipe Line 3-1：High-Efficient Single Screw Extruder with L,D 38:1
- HDPE Pipe Line 3-2：Extrusion Die Mould Calibrators, Water Tanks
- HDPE Pipe Line 3-3：Caterpillar Haul off Machine, Cutting Machine
- Gravimetric Dispenser：Optional
- HDPE Pipe Coating Mould：Optional
- Transport Package：Stretch Film and Wooden Pallet, Wooden Packing
- Specification：Pipes Diameters 16,63,110,315,400,630,710,800,1200
- Trademark：Sincere Machinery
- Origin：Qingdao, China
- HS Code：8477209000
- Production Capacity：50 Sets Year
Description
Extruders: Plastic Single-screw extruders for HDPE/PP, optinal SJ45, SJ55, SJ65,SJ75, SJ90,SJ100,SJ120,SJ150, L/D 33:1 or 38:1.
Extrusion capacity from 40kg/h to 1500kg/h.
Extrusion die-head, extrusion die mould, vacuum calibrators.
Single layer extrusion die mould, double layers extrusion die moudld, three-layers extrusion molds.
Vacuum calibration water tanks, and spray water cooling tank, made of stainless steel ensures precise calibration and fast cooling.
Adopts multi claws haul-off unit: Chipless cutting machine:
speed adjusted by frequency inverter or by servo-motors. Be able to cut large diameter and thick wall pipe, servo-motors
Haulling speed: 0-30m/min
3. Technical parameters:
| Model | Pipe Diameters(mm) | Supporting extruder (33:1 or 38:1) | Extrusion capacity(kgh) | Total Installed Power(kw) |
| SG-63 | 16-63 | SJ6533 SJ2525 | 120-180 | 110 |
| SG-110 | 16-110 | SJ6533 SJ2525 | 150-200 | 130 |
| SG-160 | 50-160 | SJ7533 SJ2525 | 150-220 | 150 |
| SG-250 | 75-250 | SJ7533 SJ2525 | 280-350 | 280 |
| SG-315 | 110-315 | SJ9033 SJ2525 | 250-350 | 350 |
| SG-450 | 160-450 | SJ9033 SJ2525 | 350-450 | 400 |
| SG-630 | 315-630 | SJ12033 SJ2525 | 550-850 | 550 |
| SG-800 | 450-800 | SJ15033 SJ2525 | 800-1300 | 750 |
| SG-1000 | 600-1000 | SJ15033 SJ2525 | 800-1300 | 750 |
| SG-1200 | 800-1200 | SJ12033*2 SJ2525 | 950-1600 | 950 |
| SG-1600 | 1000-1600 | SJ15033*2 SJ2525 | 1500-2500 | 1300 |
